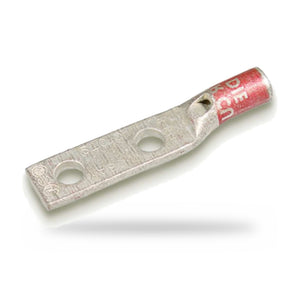

Compression Lug, 8 AWG, Copper, 2-Hole, Standard Barrel, 1/4 in Stud, Tin Plated, UL Listed, 35 kV | 210-09906
Shipping calculated at checkout
SKU: 210-09906
1000 in stock
Open here

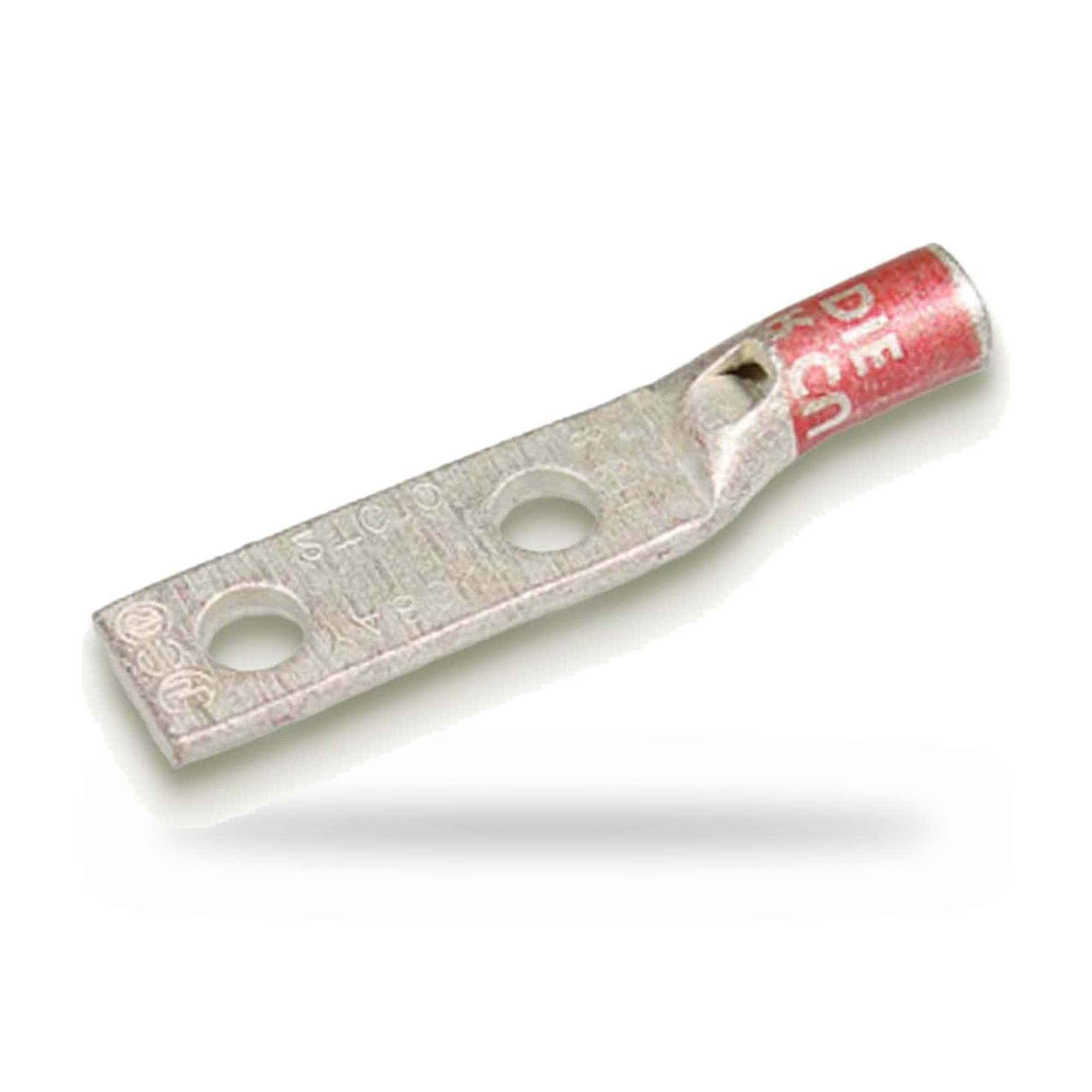

At a glance: Two-hole compression lug provides a secure termination point for 8 AWG conductors in electrical panels, switchgear, and power distribution equipment. Designed for applications requiring dual-bolt mounting stability, this standard barrel lug features a sight window for visual confirmation of proper conductor insertion and a chamfered cable entry to ease installation.
Specifications
| Part number | 210-09906 |
|---|---|
| Category | Electrical connector |
| Barrel | Standard |
| Voltage rating | 35 kV |
| Weight | 0.12 lb (est.) |
| Conductor Size | 8 AWG |
| Stud/Bolt Size | 1/4 inch |
| Pad Holes | 2 holes on 5/8 inch (0.625") center spacing |
| Overall Length | 2.132 inches (53.3mm) |
| Barrel Length | 0.5 inch |
| Inner Diameter | 0.179 inch (7.1mm / 0.28") |
| Outer Diameter | 0.272 inch (11.2mm / 0.44") |
| Neck Length (L1) | 37.5mm (1.475") |
| Neck Length (L2) | 19.0mm (0.75") |
| Hole Diameter | 4.8mm (0.19") |
| Width (B) | 12.7mm (0.50") |
| Thickness (F) | 1.9mm (0.75") |
| Hole Spacing (E) | 7.1mm (0.28") |
| Material | Seamless electro tin-plated copper |
| Color Code | Red |
| Cable Entry | Chamfered type |
| Die Index | I-21 |
| Temperature Rating | 90°C |
| Max Amp Rating | 50A |
| Certifications | UL Listed |
Cross reference
| Our part | Panduit |
|---|---|
| 210-09906 | LCC8-12 * |
Matched by size and type. Trademarks belong to their owners. *Verify on datasheet.
