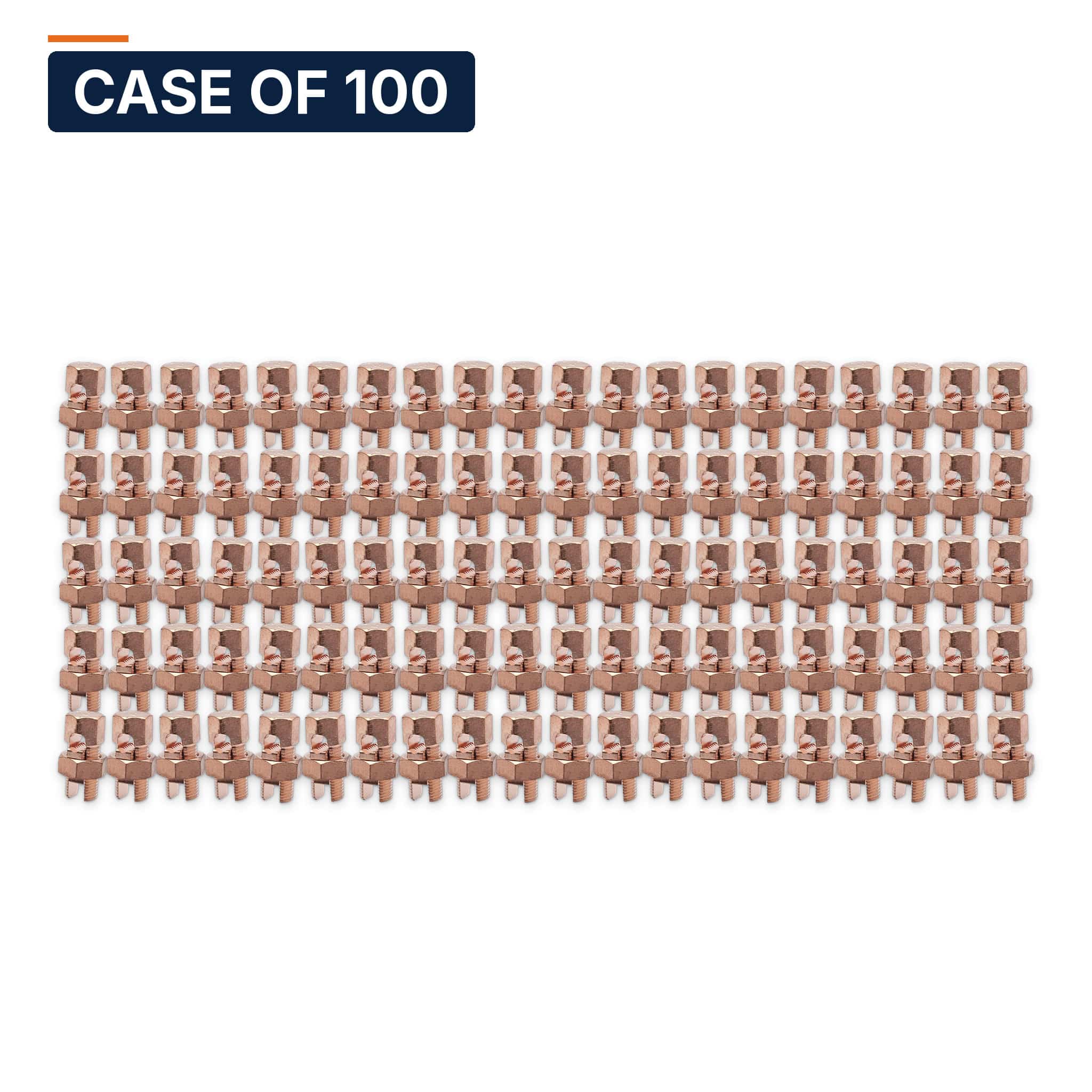

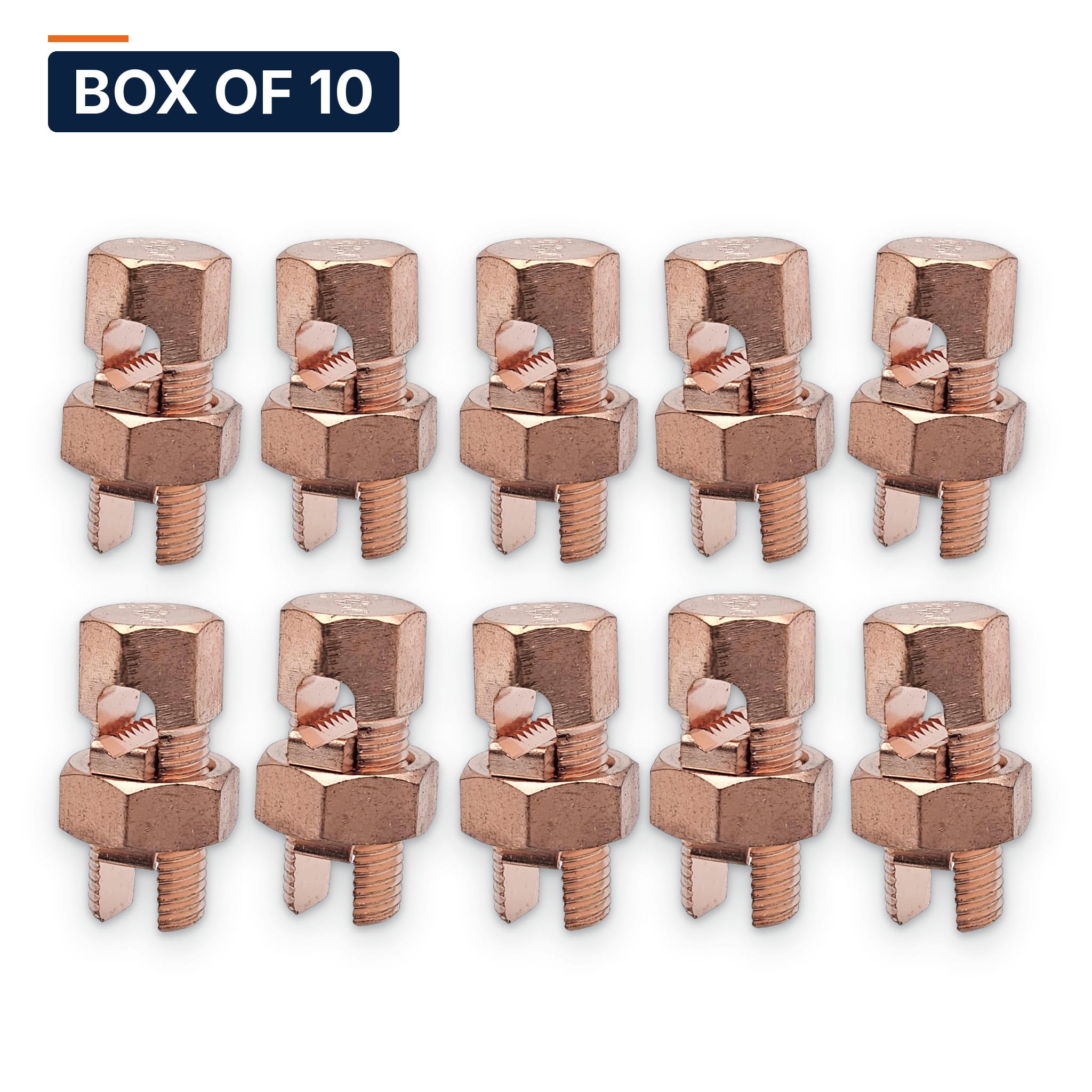

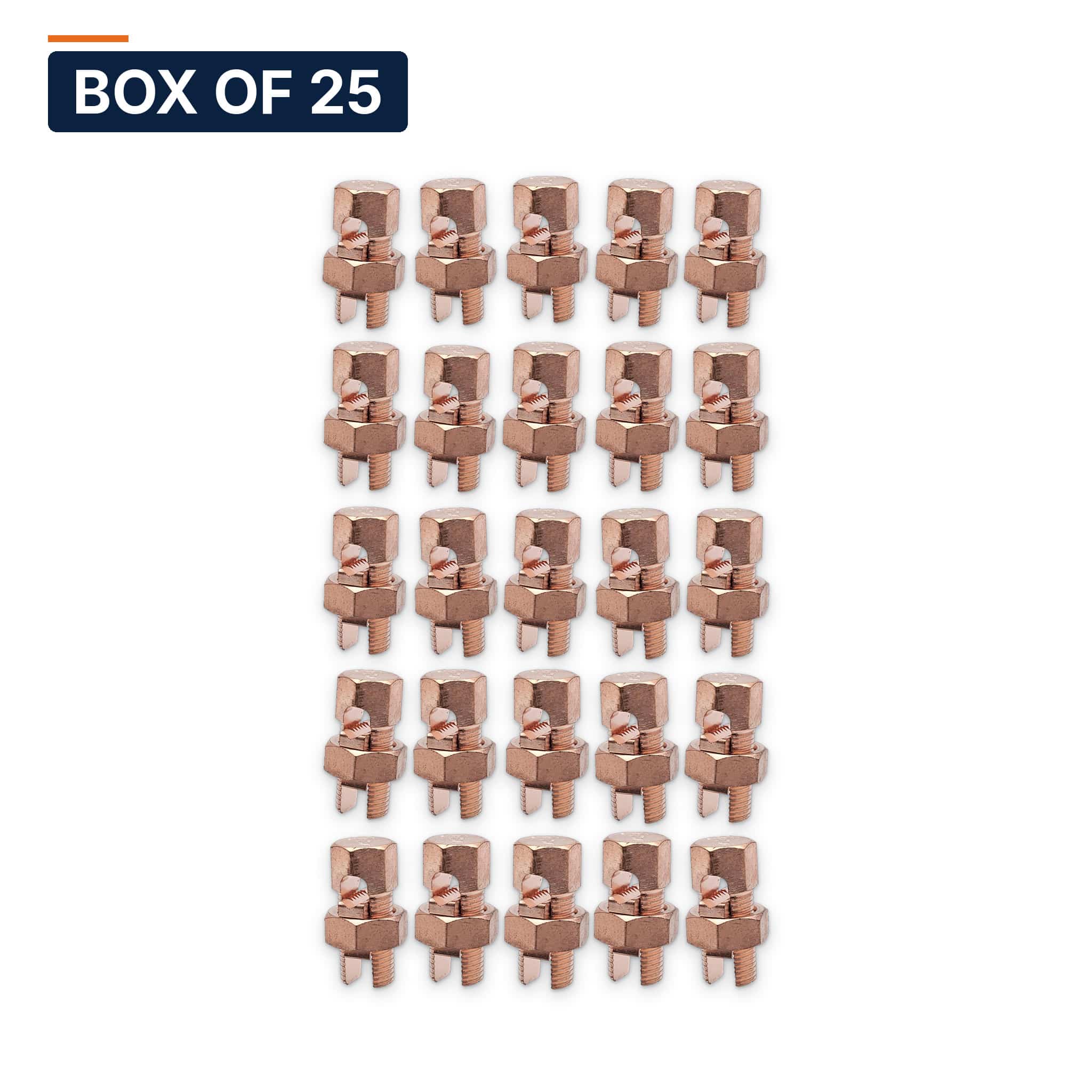

Split Bolt Connector 4 Awg (Max) - 8 Awg (Max)
Shipping calculated at checkout
SKU: 610-0048
2281 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech Copper Split Bolt Connector – Heavy-Duty Wire Splice & Tap (4 SOL to 8 SOL)
The Conversions Tech Split Bolt Connector is a rugged, high-conductivity connector designed for splicing and tapping copper conductors in power distribution, grounding, and general electrical installations. The split-bolt design applies strong, even clamping force to create a dependable electrical bond, while the heavy-duty body resists loosening in vibration-prone environments.
Built for electricians, contractors, and maintenance teams, this connector is commonly used for field repairs, service upgrades, and permanent connections where a reliable mechanical grip and low-resistance electrical path are required.
Search terms: split bolt connector, copper split bolt, wire splice connector, wire tap connector, copper splice, grounding split bolt, electrical split bolt, 4 SOL to 8 SOL connector, heavy duty split bolt
Why Choose a Conversions Tech Split Bolt Connector
- Secure splicing & tapping: Ideal for joining conductors inline or tapping a branch conductor.
- High conductivity: Copper construction supports efficient current transfer.
- Strong mechanical grip: Split-bolt clamping force helps resist loosening over time.
- Corrosion resistance options: Tin-plated or nickel-plated finishes available for added protection.
- Field-friendly installation: Simple, tool-driven install for fast work in panels or junction areas.
Key Technical Specifications
| Wire Range | 4 SOL to 8 SOL conductors |
| Material | Copper (high conductivity) |
| Finish | Tin-plated or nickel-plated (corrosion resistance) |
| Temperature Rating | Up to 90°C (194°F) |
| Voltage Rating | Suitable for standard electrical systems (application dependent) |
| Standards | Compliant with applicable UL and ANSI requirements |
Typical Applications
- Splicing copper conductors in residential and commercial electrical systems
- Tapping a branch conductor from a main run
- Grounding and bonding connections (where permitted by your design/spec)
- Maintenance repairs and electrical retrofits
- Outdoor and harsh-environment installs when paired with corrosion protection measures
Features & Benefits
- Strong mechanical + electrical bond for long-term reliability
- Easy installation with standard hand tools
- Corrosion-resistant finish options for longer service life
- Versatile wire range for common conductor sizes
- Contractor-grade build for demanding jobsite conditions
Installation Notes
- Verify conductor type and size are within the listed wire range before installation.
- Clean conductors and ensure proper seating to maximize contact area.
- Tighten hardware evenly to achieve a secure connection (do not overtighten).
- For outdoor or corrosive environments, use appropriate sealing and protective measures per job requirements.
- Always follow your local electrical code and project specifications.
Frequently Asked Questions (FAQs)
1) What is a split bolt connector used for?
Split bolt connectors are used to splice conductors inline or tap a branch conductor from a main run.
2) What wire sizes does this connector fit?
This connector is designed for 4 SOL to 8 SOL conductors.
3) Is this connector copper or aluminum?
This version is copper for high conductivity. (If you need aluminum or AL/CU options, we can help cross-reference.)
4) What’s the difference between tin-plated and nickel-plated?
Both finishes improve corrosion resistance. Tin plating is common for general electrical use; nickel plating may be preferred for certain harsh or chemical environments.
5) Can I use this for outdoor installations?
Yes, but outdoor reliability depends on the environment and protection method. Use corrosion-resistant finishes and appropriate sealing/protective measures as required by your project.
6) Does it work for grounding and bonding?
Split bolt connectors are often used for grounding/bonding where permitted by the design and code. Always confirm with your project spec and local electrical code.
7) What temperature rating does it have?
This connector is rated up to 90°C (194°F) in typical applications.
8) Do I need special tools to install it?
No special tools are usually required—standard hand tools are typically sufficient. Ensure proper tightening and conductor seating.
9) Will vibration loosen the connection?
When installed properly, the split-bolt design provides strong clamping force and is commonly used in demanding environments. For high-vibration applications, follow best practices and inspection intervals.
10) Can this connector be reused?
In many cases, split bolts can be removed and reinstalled, but reuse depends on condition, deformation, and your project standards. For critical installations, replacement is recommended.
11) Is this connector insulated?
No. Split bolt connectors are typically uninsulated. Proper insulation/overwrap should be applied after installation if required.
12) How do I choose the right split bolt size?
Select the connector based on conductor sizes being joined (main + tap). If you share the two conductor sizes, we can recommend the correct option.
Documentation
Need drawings or a spec sheet for submittals? Contact Conversions Tech and we’ll provide the latest documentation for your exact configuration.
