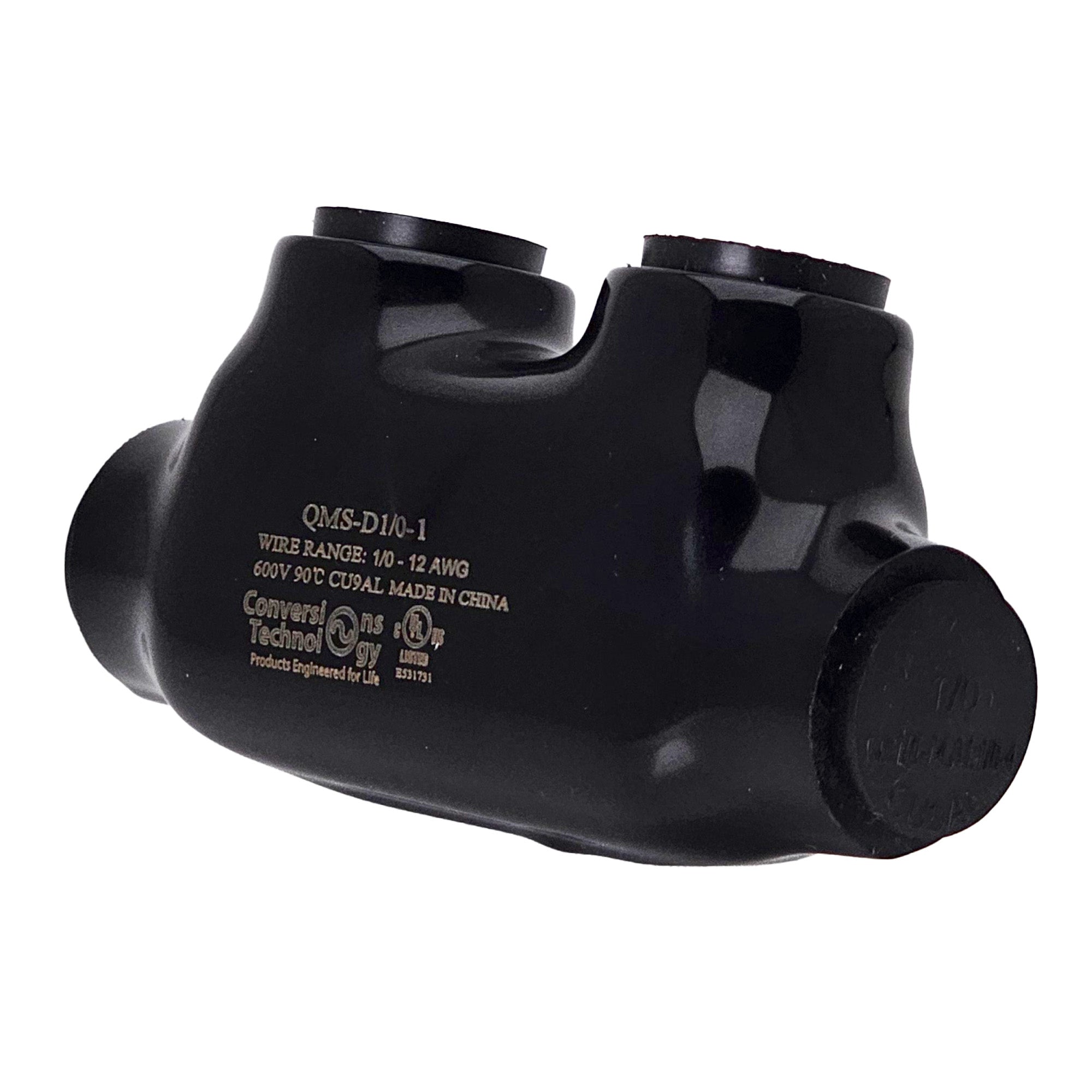

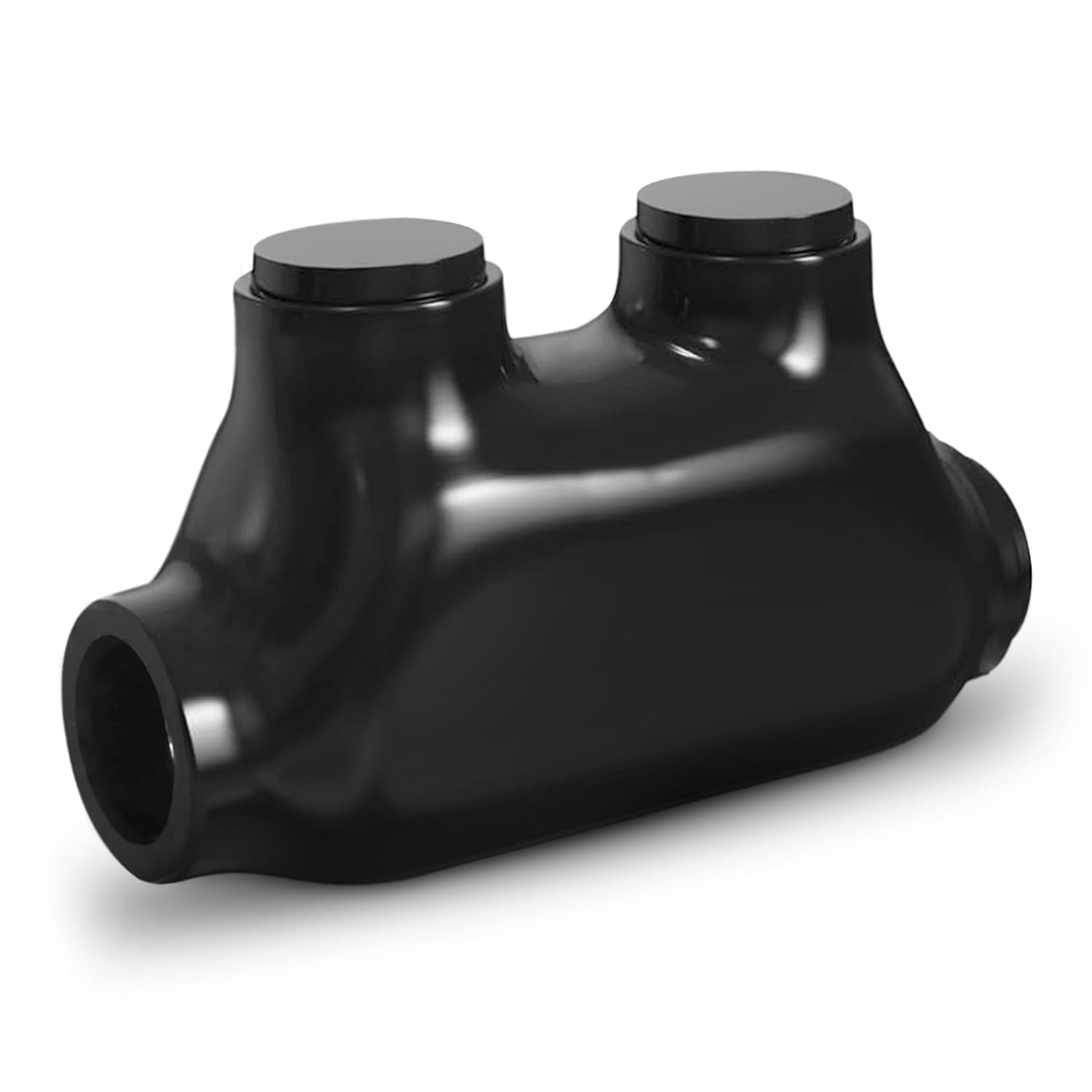

Insulated Inline Splices 14 Awg Min 1/0 Awg Max UL Black
Shipping calculated at checkout
SKU: 210-61001
99 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Engineered for reliability in residential, commercial, and industrial wiring, the Conversions Tech Insulated Splice delivers rock-solid conductivity, corrosion defense, and NEC 230.46 compliance—making line-side service connections faster, safer, and code-ready.
Stand-Out Benefits & Performance Highlights
- High-Pressure Set-Screw Contacts: Precision-machined screws drive firmly into the conductor, producing a low-resistance bond that minimizes heat rise and power loss.
- One-Side, Four-Port Entry: Streamlined body accepts up to four conductors (3/0 AWG–6 AWG) from a single face, cutting install time while meeting NEC 230.46 for service-equipment line-side terminations.
- UV-Shielded Plastisol Jacket: Thick, flexible coating shrugs off sunlight, chemicals, and abrasion for long-term field durability indoors or out.
- Debris-Blocking Plugs: Removable port caps keep dirt, moisture, and metal shavings out until you’re ready to land the wire.
- Factory-Applied Oxide Inhibitor: Conductive gel inside each port combats galvanic corrosion and stabilizes resistance on both copper and aluminum conductors.
- Cold-Weather Rated to –45 °C: Reliable gripping force and insulation integrity—even during frigid winter installs.
Technical Specifications
| Parameter | Value |
|---|---|
| Wire Size Range | 3/0 AWG – 6 AWG (AL/CU) |
| Conductor Count | Splice |
| Voltage Rating | 600 V AC/DC |
| Max Amperage | 100 A AL • 130 A CU |
| Connection Method | Twin set-screw (AL9CU) |
| Body Material | High-strength aluminum alloy |
| Insulation | UV-resistant plastisol |
| Temperature Rating | 90 °C continuous |
| Certifications | cULus Listed • UL 486A/B • NEC 230.46 compliant |
| Environmental | Operating down to –45 °C |
Ideal Applications
Perfect for power distribution cabinets, service entrance gear, control panels, HVAC disconnects, utility upgrades, marine & automotive electrical, and any installation demanding a code-approved, high-integrity splice.
Choose the Conversions Tech Insulated Splice to boost safety, slash installation time, and guarantee compliance on every project.
