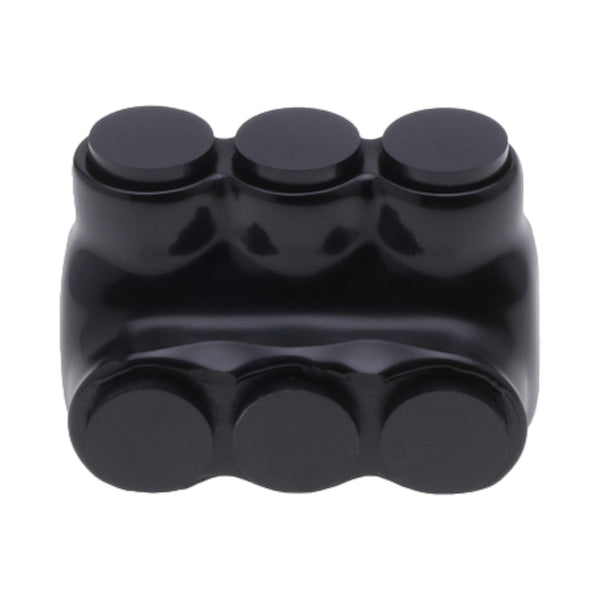

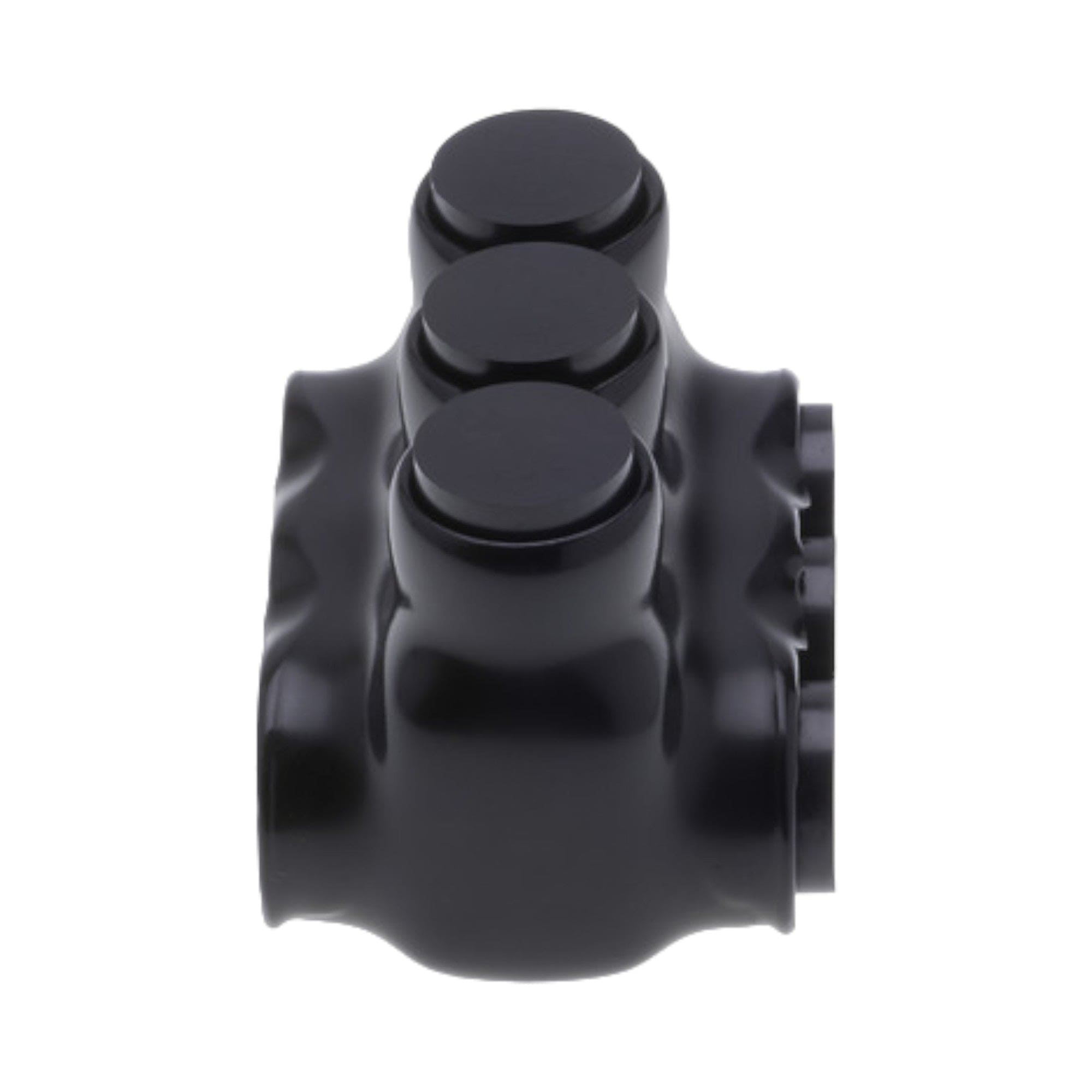

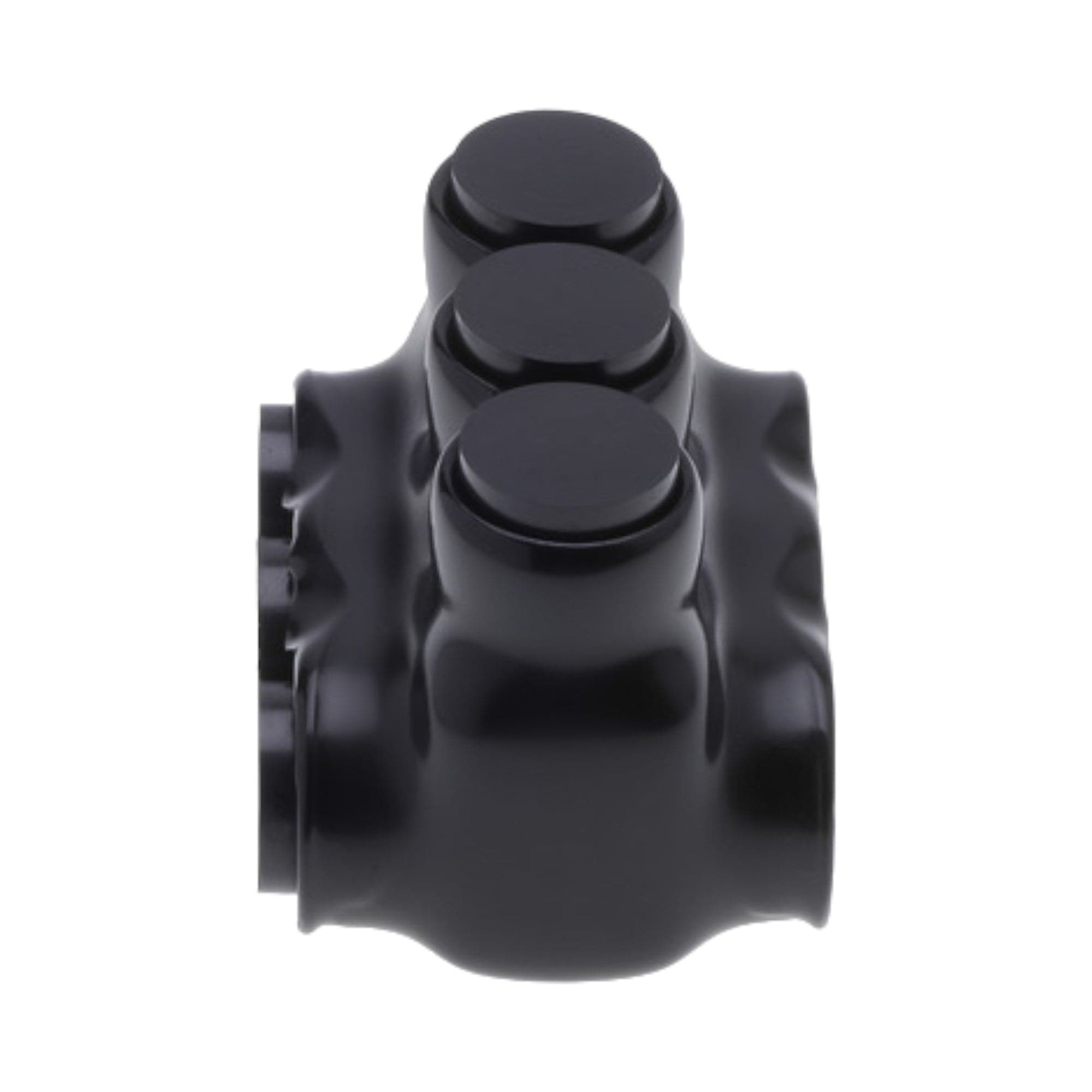

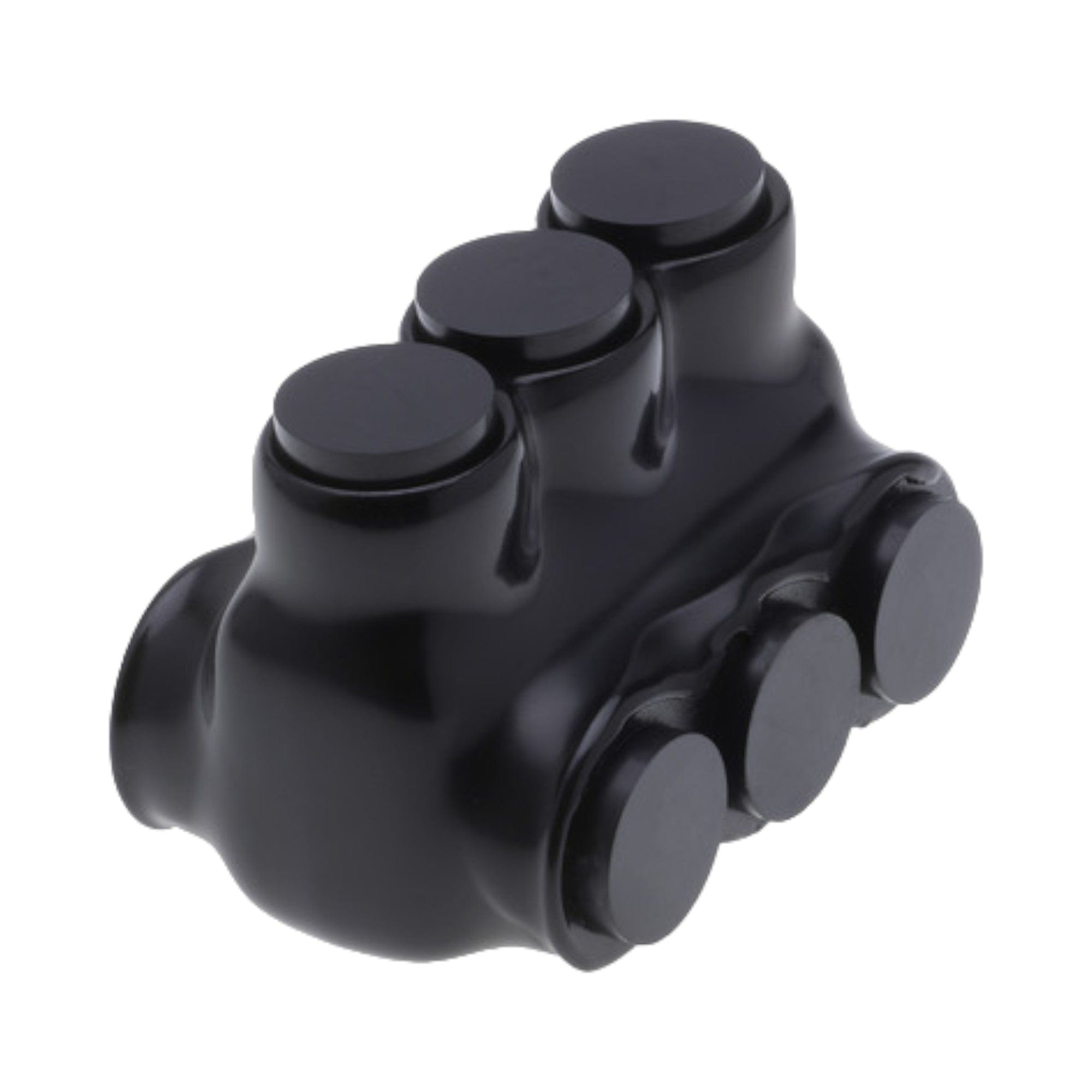

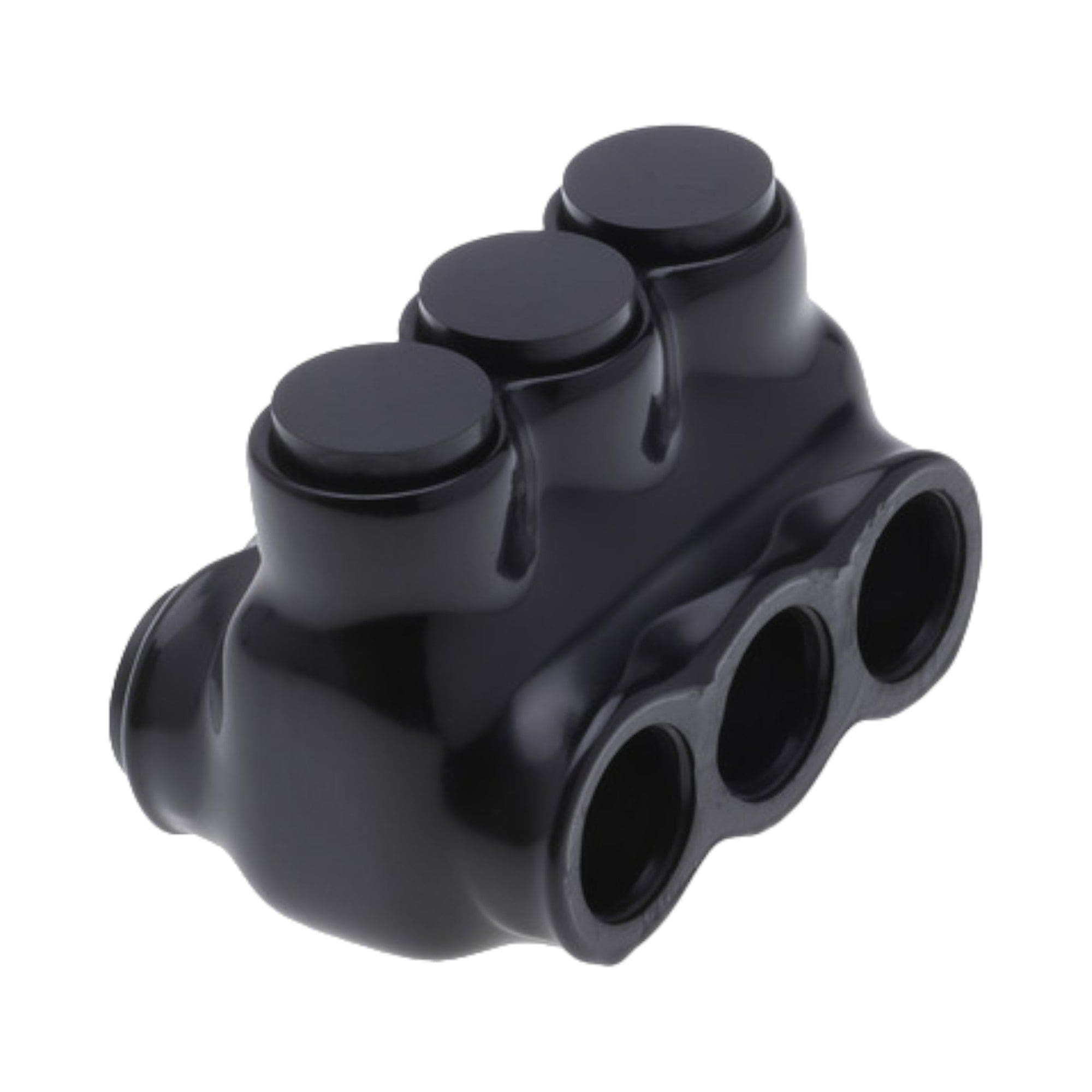

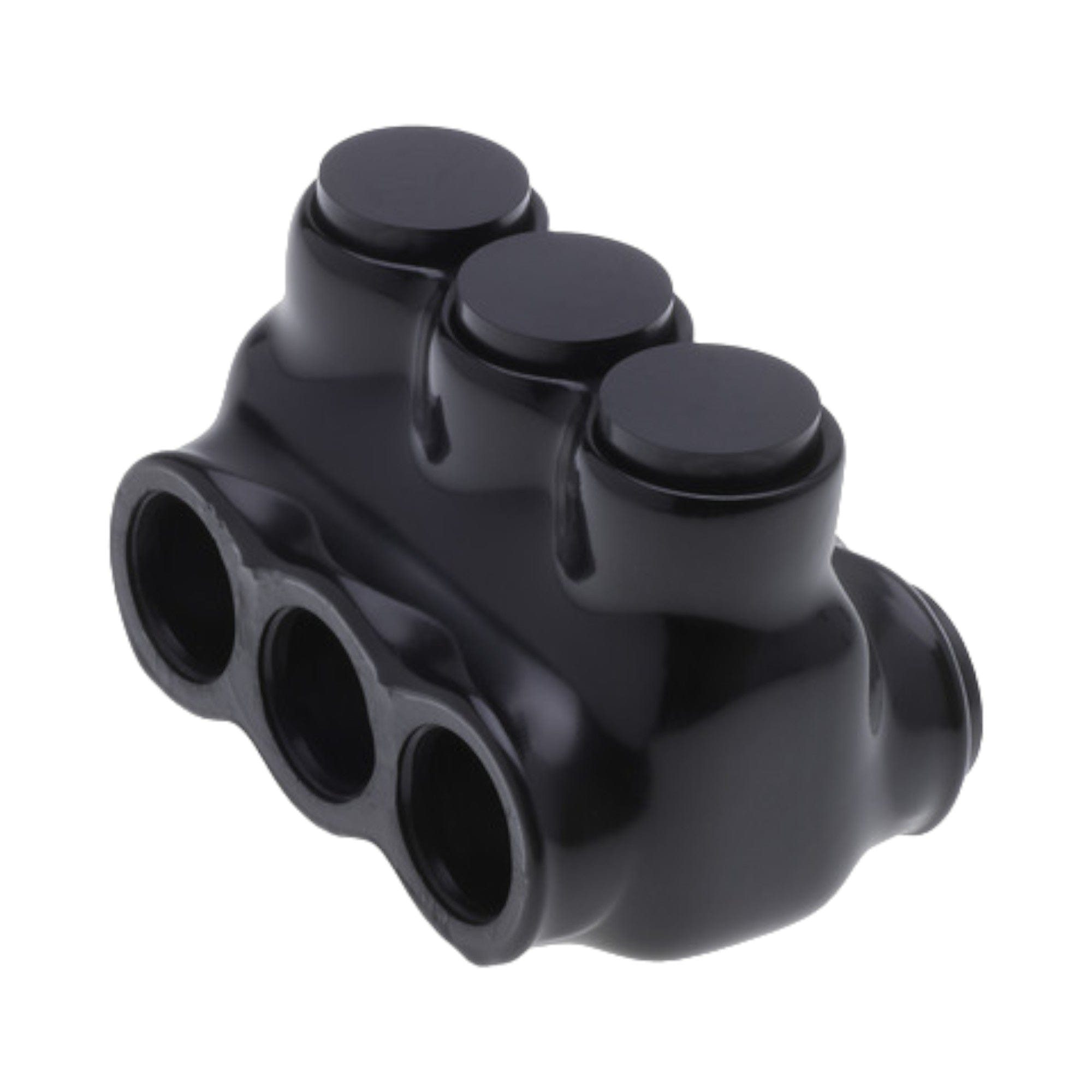

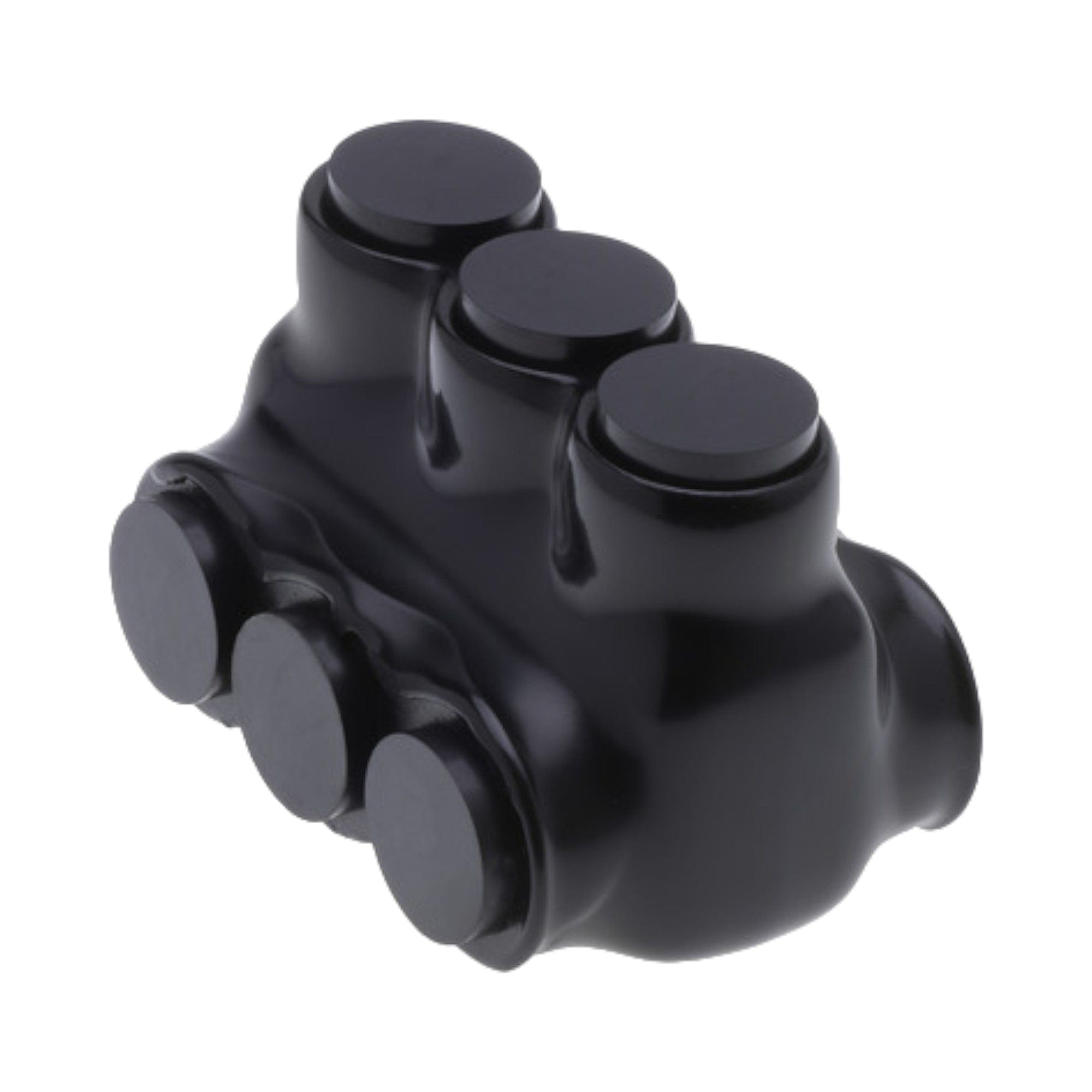

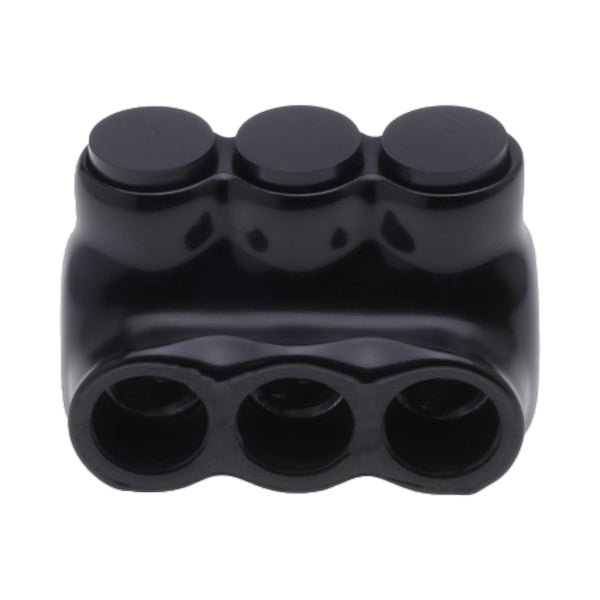

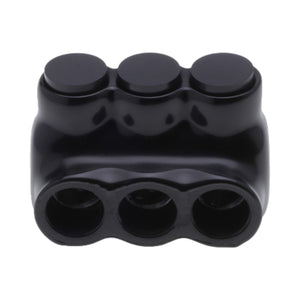

Insulated Tap Connectors 3 port dual-side Entry 14 AWG - 1/0 AWG
Shipping calculated at checkout
SKU: 610-1003750
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Insulated Tap Connector 2 — Dual-Sided Entry | 1/0 AWG – 14 AWG | 600V | cULus Listed | Conversions Tech
The Conversions Tech Insulated Tap Connector 2 line is engineered for forming secure, low-resistance electrical connections between multiple conductors. Designed with precision, each connector features a durable UV-resistant plastisol insulation coating and an aluminum alloy body for maximum conductivity and corrosion resistance. These connectors meet NEC Article 230.46 requirements, making them ideal for line-side connections in service equipment and power distribution systems.
Each connector includes dual opposing wire entry ports for flexible conductor placement, and both ports are pre-filled with oxide inhibitor gel to prevent oxidation and ensure long-term electrical integrity. Combined with adjustable set screws and removable protective plugs, the Insulated Tap Connector 2 offers unmatched reliability and installation efficiency in the field.
Key Technical Specifications
| Wire Gauge Range | 1/0 AWG – 14 AWG |
| Connection Type | Set Screw |
| Insulation Material | UV-Resistant Plastisol |
| Voltage Rating | 600 V |
| Material | High-Strength Aluminum Alloy |
| Finish | Plastisol Insulated (UV Resistant, Black) |
| Certifications | cULus Listed • Meets NEC 230.46 • UL 486A/B File No. E186991 • AL9CU Rated |
| Conductor Type | Copper or Aluminum (Class B & C) |
| Max Current Rating | 130 A (Cu), 100 A (Al) |
| Temperature Rating | 90°C (AL9CU) |
| Environmental Rating | Cold Temperature Rated to -45°C |
| Conductor Count | 3 Conductors |
| Bolt / Screw Size | 3/8” Wire Binding Screws (1 per Port) |
| Torque Specifications | 10–14 AWG: 35 in-lbs • 8 AWG: 40 in-lbs • 4–6 AWG: 45 in-lbs • 2/0–3 AWG: 50 in-lbs |
| Dimensions (Connector) | Height: 1.627 in • Length: 2.248 in • Width: 1.825 in • Weight: 0.214 lb |
| Box Dimensions / Weight | 2.75 in (H) × 6 in (W) • Box Weight: 2.815 lb |
| UPC | 810166610544 |
| Origin | USA *Stock product may be sourced elsewhere. |
Key Features
- Secure Electrical Bonds: Adjustable set screws and rounded body geometry provide a high-pressure, low-resistance interface between conductors.
- Dual-Sided Wire Entry: Opposing entry ports accommodate a broad range of wire sizes (1/0 AWG–14 AWG) for flexible installation layouts.
- NEC 230.46 Compliant: Approved for line-side connections in service equipment applications.
- Ergonomic Design: Smooth plastisol coating provides a comfortable, non-slip grip during installation.
- Removable Port Plugs: Protects against debris, moisture, and contamination prior to wire insertion.
- Pre-Filled Oxide Inhibitor: Factory-filled inhibitor gel prevents oxidation and ensures stable conductivity.
- UV & Chemical Resistance: Insulation withstands ultraviolet exposure, abrasion, and environmental stress for extended service life.
Applications
- Residential electrical wiring and load centers
- Commercial building distribution systems
- Industrial machinery and control panels
- Power distribution and grounding networks
- HVAC and automation systems
- Infrastructure and utility service connections
- Automotive, marine, and transportation electrical systems
Frequently Asked Questions (FAQs)
1. What wire range does this connector support?
It accommodates wire sizes from 1/0 AWG to 14 AWG for both copper and aluminum conductors.
2. Is the Insulated Tap Connector 2 rated for line-side service?
Yes. It complies with NEC Article 230.46, suitable for line-side connections on service equipment.
3. Does it include oxide inhibitor?
Yes, both entry ports are pre-filled with oxide inhibitor gel to reduce corrosion and maintain conductivity.
4. What is the temperature and environmental rating?
It is rated for 90°C continuous operation and cold-weather tested down to -45°C.
5. Are these connectors UL or cULus listed?
Yes, they are UL and cULus Listed under UL 486A/B, File No. E186991.
