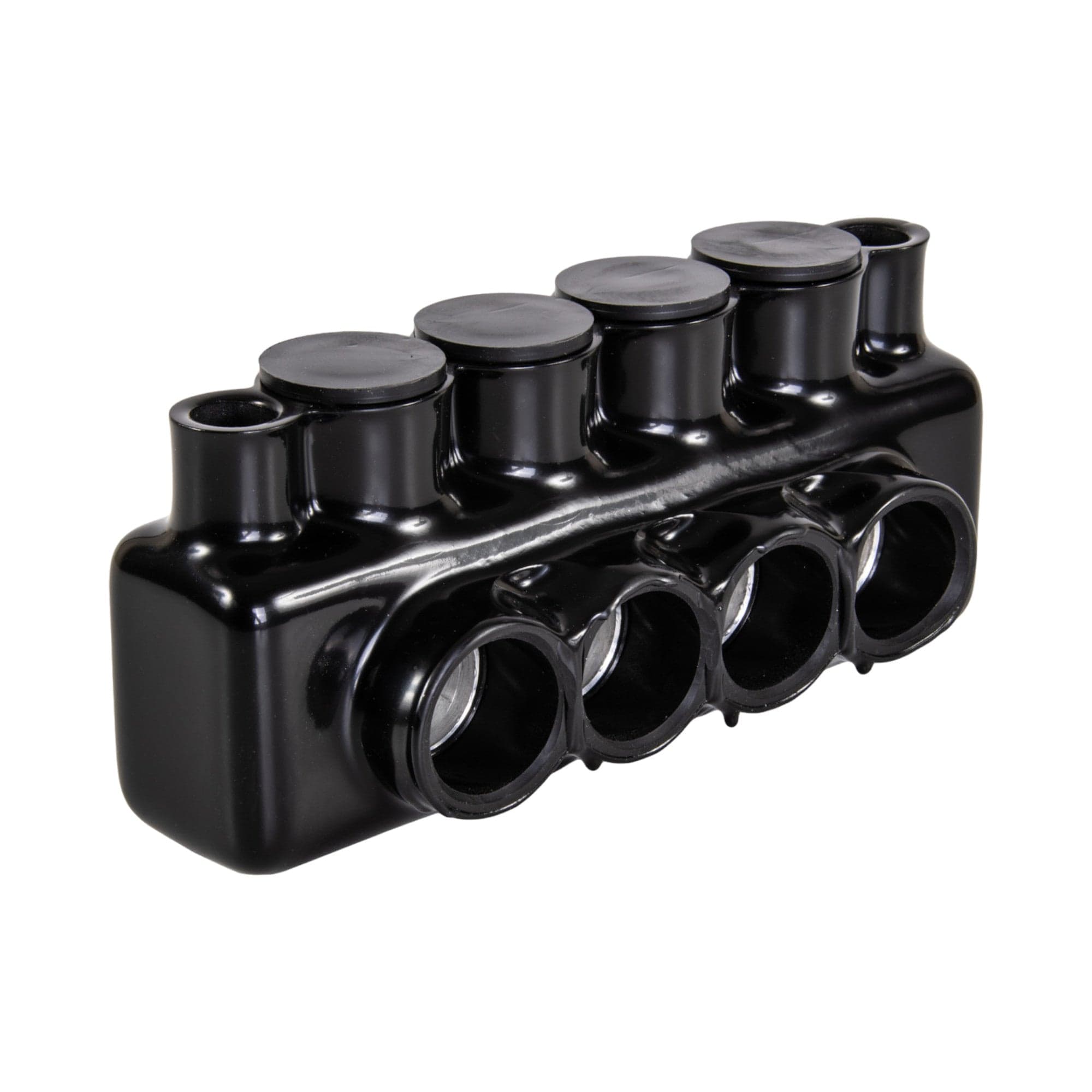

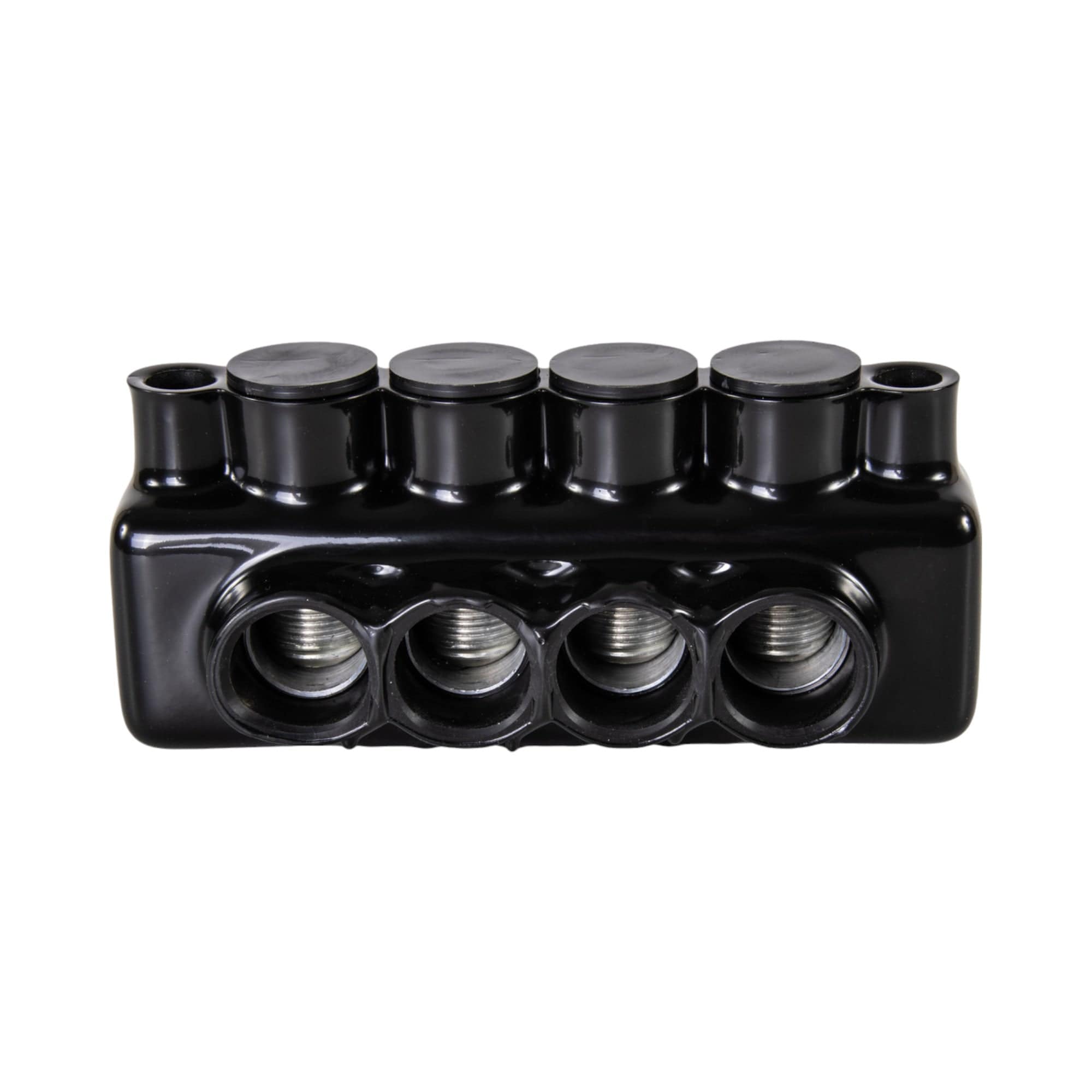

Insulated Tap Connectors 4 port single-side Entry 1/0 AWG - 750 MCM
Shipping calculated at checkout
SKU: 610-2004750
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Conversions Tech 4-Port Insulated Tap Connector — 1/0 AWG to 750 MCM, NEC 230.46 Line-Side Rated
Conversions Tech 4-Port Insulated Tap Connectors are engineered for reliable multi-conductor connections in demanding electrical distribution environments. Each connector features UV-resistant plastisol insulation, a rounded ergonomic housing, and set-screw termination for precision mechanical strength and long-term conductivity. Designed to meet NEC Article 230.46, these connectors provide a code-compliant solution for line-side service applications in residential, commercial, and industrial systems.
Key Features and Advantages
- Secure Set-Screw Connections: Adjustable set screws and precision-machined aluminum body deliver a high-pressure clamping force that minimizes electrical resistance and ensures long-term connection integrity.
- Four-Port Single-Side Entry: Simplifies conductor arrangement by allowing up to four wires to be connected through a single entry side — ideal for parallel or tap connections between 1/0 AWG and 750 MCM conductors.
- NEC 230.46 Compliance: Fully compliant with National Electrical Code Article 230.46, authorizing its use for line-side connections on service equipment and panelboard assemblies.
- Ergonomic, Rounded Design: Smooth plastisol coating provides improved grip and eliminates sharp edges during field installation, reducing installer fatigue and risk of insulation damage.

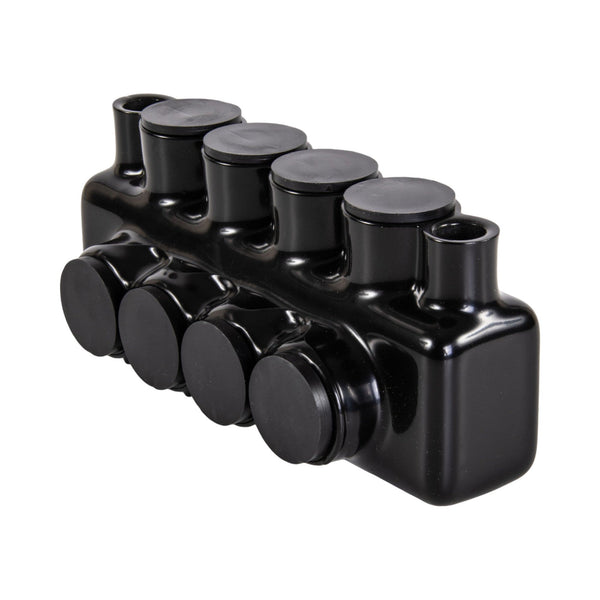

- Removable Protection Plugs: Each port and set screw is fitted with a removable plug to prevent ingress of debris, dust, and moisture before and during installation.
- Pre-Filled with Oxide Inhibitor: All ports are pre-loaded with conductive oxide inhibitor gel to prevent galvanic corrosion and maintain low contact resistance between aluminum and copper conductors.
- Heavy-Duty Insulation: Plastisol coating provides UV, chemical, and abrasion resistance, maintaining mechanical and dielectric performance under outdoor and industrial conditions.
- Professional-Grade Construction: Dual-rated AL9CU aluminum alloy body supports both copper and aluminum conductors, certified to UL 486A/B and cULus standards.
Technical Specifications
| Wire Gauge Range: | 1/0 AWG to 750 MCM |
| Number of Conductors: | 4 Ports (Single-Side Entry) |
| Connection Type: | Set Screw |
| Insulation Material: | UV-Resistant Plastisol |
| Voltage Rating: | 600 V |
| Body Material: | Aluminum (AL9CU Rated) |
| Finish: | Plastisol Insulated, UV Resistant |
| Color: | Black |
| Certifications: | cULus Listed, NEC 230.46 Compliant, UL 486A/B |
| UL File Number: | E186991 |
| Wire Cable Class: | Class B & Class C |
| Temperature Rating: | 90°C Continuous, Cold Rated to −45°C |
| Conductor Material: | Copper and Aluminum |
| Conductor Max Amps: | Aluminum: 100 A / Copper: 130 A |
| Binding Screw Size: | 9/16″ Hex |
| Recommended Torque: | 275 in-lbs |
| Dimensions (in): | Height: 2.041″ × Length: 3.024″ × Width: 2.318″ |
| Weight: | 0.501 lb |
| Box Dimensions: | Height: 2.75″ × Width: 6″ — Box Weight: 3.253 lb |
| UPC: | 810166615686 |
| Country of Origin: | United States |
Recommended Applications
- Service entrance and line-side electrical terminations
- Commercial building feeder and branch circuit tap connections
- Industrial power distribution networks and switchgear
- HVAC power and grounding connections
- Utility and infrastructure distribution systems
- Automotive and marine electrical assemblies
- Renewable energy and solar combiner box installations
Download Full Specification Sheet (PDF)
Frequently Asked Questions (FAQs)
1. What makes this connector suitable for NEC 230.46 line-side use?
It meets the requirements of NEC Article 230.46, which defines acceptable methods for line-side tap and service equipment connections. The insulated design, UL 486A/B certification, and voltage rating ensure full code compliance.
2. How many conductors can this tap connector accommodate?
This model supports up to four conductors through single-side entry ports, simplifying parallel or multi-feed connections.
3. Can this connector be used with both copper and aluminum wires?
Yes. It is dual-rated for AL9CU, which authorizes the connection of both aluminum and copper conductors under UL 486A/B standards.
4. What protection does the plastisol insulation offer?
The heavy-duty plastisol coating provides exceptional UV, chemical, and abrasion resistance, making it suitable for indoor and outdoor environments.
5. What is the function of the oxide inhibitor gel?
The pre-filled oxide inhibitor minimizes oxidation and galvanic corrosion, maintaining low contact resistance and long-term reliability in copper and aluminum terminations.
6. What is the rated temperature and voltage?
Rated for continuous use at 90°C with a 600-volt maximum operating voltage, cold-temperature rated to −45°C for harsh environments.
7. Is this connector UL Listed?
Yes. It is UL Listed under File No. E186991 and tested to UL 486A/B for mechanical and electrical performance standards.
8. What is the torque requirement for installation?
The recommended tightening torque is 275 in-lbs using a 9/16″ hex driver to ensure optimal electrical compression without damaging the conductor.
9. Can this connector be used outdoors?
Yes. Its UV-resistant plastisol insulation and moisture-sealed ports make it ideal for outdoor and direct-exposure installations.
10. What applications are best suited for this product?
Applications include electrical distribution panels, service disconnects, HVAC units, switchgear, solar systems, and industrial equipment where durable multi-conductor taps are required.
