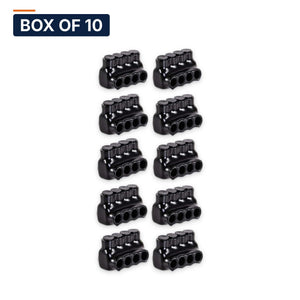

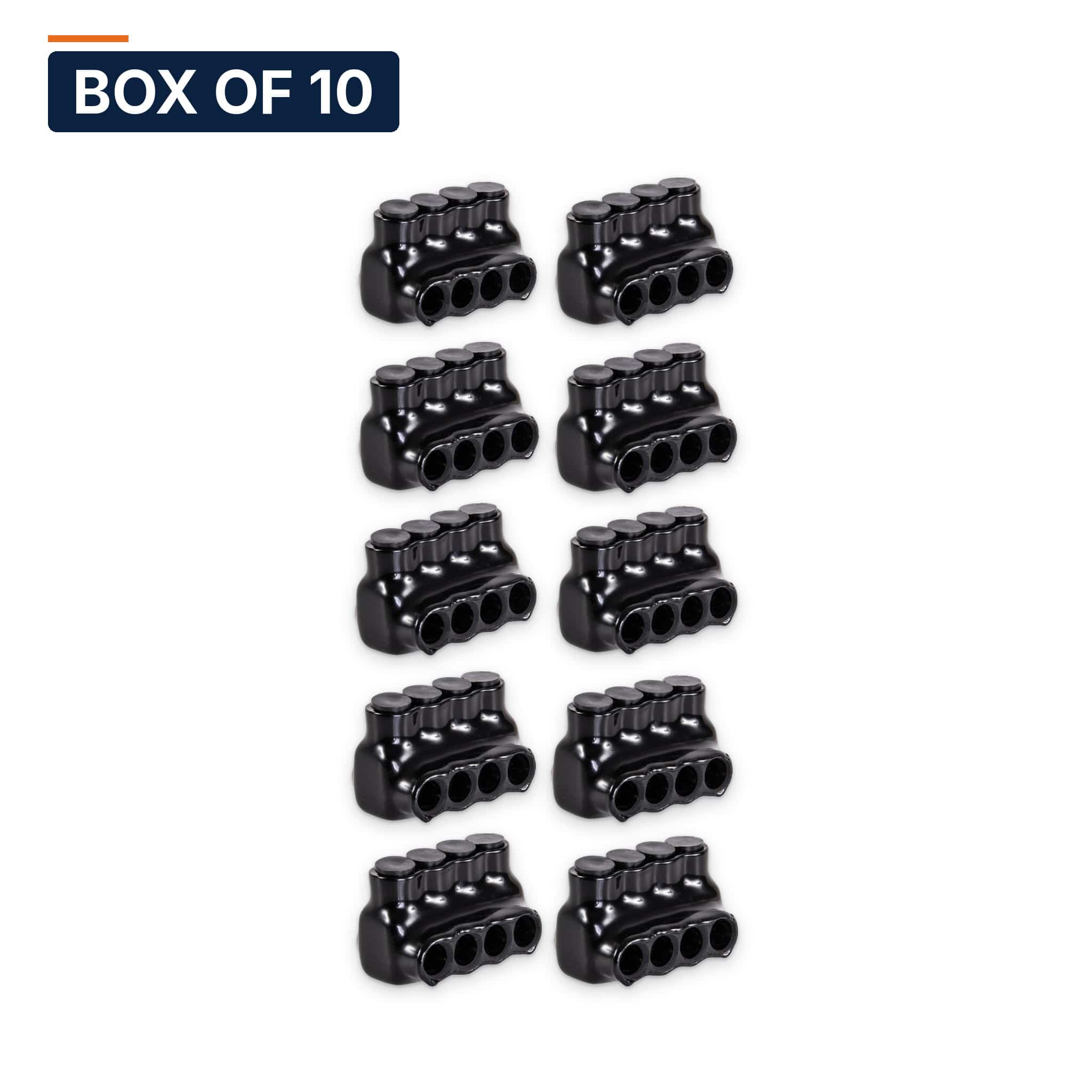

Insulated Multi-Tap Connector 4-Port 14–2 AWG Single-Side Entry | 610-2004214
Shipping calculated at checkout
SKU: 610-2004214
1000 in stock
Open here
Insulated electrical multi-tap connector (Polaris-type). This 4-port insulated multi-tap connector accepts 14–2 AWG conductors with single-side entry — all conductors land from one side for panel-edge and gutter work. Dual-rated AL9CU tin-plated aluminum body, UV-resistant insulated housing, 600V, 90°C, UL 486B listed. Set-screw termination for copper or aluminum conductors — panels, gutters, wireways, solar combiners, and service taps. Cross-reference guide below.
SPECIFICATIONS
| Conductor Range | 14–2 AWG |
| Ports | 4 |
| Entry Style | Single-Side Entry |
| Body | Dual-rated AL9CU tin-plated aluminum |
| Insulation | UV-resistant, 600V |
| Temperature | 90°C (cold-rated to −45°C) |
| Listing | UL 486B, CSA |
| CT Part Number | 610-2004214 |
CROSS-REFERENCE GUIDE
14–2 AWG • Single-Side Entry • Dual-rated AL9CU • 600V • 90°C • UL 486B
| MANUFACTURER | PART NUMBER | EQUIVALENCE |
|---|---|---|
| Morris Products | 97520 | Direct equivalent — 14–2 AWG, 4 port |
| NSI Polaris | IPL1/0-4 | Wider range — rated 14 AWG–1/0, larger body (exact equivalent: 610-20040114) |
Cross references are for identification convenience; verify conductor range, entry style, and listing requirements for your application. All trademarks are property of their respective owners.
FREQUENTLY ASKED QUESTIONS
What wire sizes does this connector accept?
It accepts 14–2 AWG copper or aluminum conductors (dual-rated AL9CU).
Can this replace an NSi IPL1/0-4?
IPL1/0-4 is rated 14 AWG–1/0 AWG, a wider range than this connector. If the installed conductors are within 14–2 AWG, this connector fits in a smaller body; for the full 14 AWG–1/0 range order 610-20040114, the exact equivalent.
What torque and installation method does it use?
Set-screw (hex) termination. Strip to the barrel depth, insert fully, and torque per the marking on the connector body. No special tooling or dies required.
TECHNICAL RESOURCES
Installation Guide — torque, strip length & NEC 110.14
Selection Guide — ports, entry style & conductor range
Applications — service taps, gutters, solar & AL/CU transitions
Specifications
| Part Number | 610-2004214 |
| Category | Electrical connector |
| Weight | 1.0 lb |
| HS Code | 8536.90.4000 |
