Starlink Mini Pass-Through DC Power Wall Socket, 5.5 x 2.1 mm Female Jack | Aluminum, Watertight Cap, 12 in Pigtail to 5521 Plug, 12 V 5 A, RV, Marine and Battery Box | CT-SK0111
Shipping calculated at checkout
SKU: CT-SK0111
Only 6 in stock
Open here
Goes with

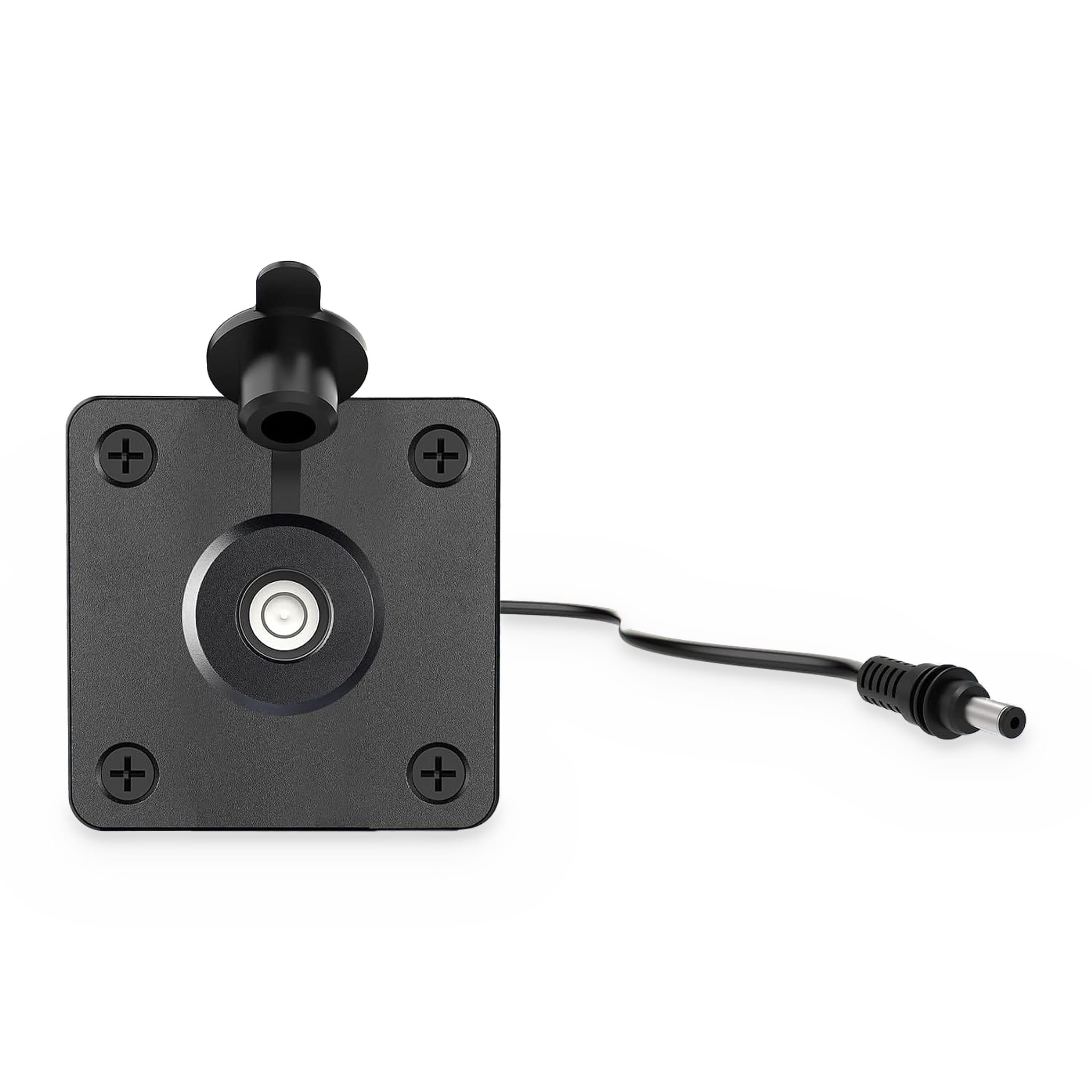

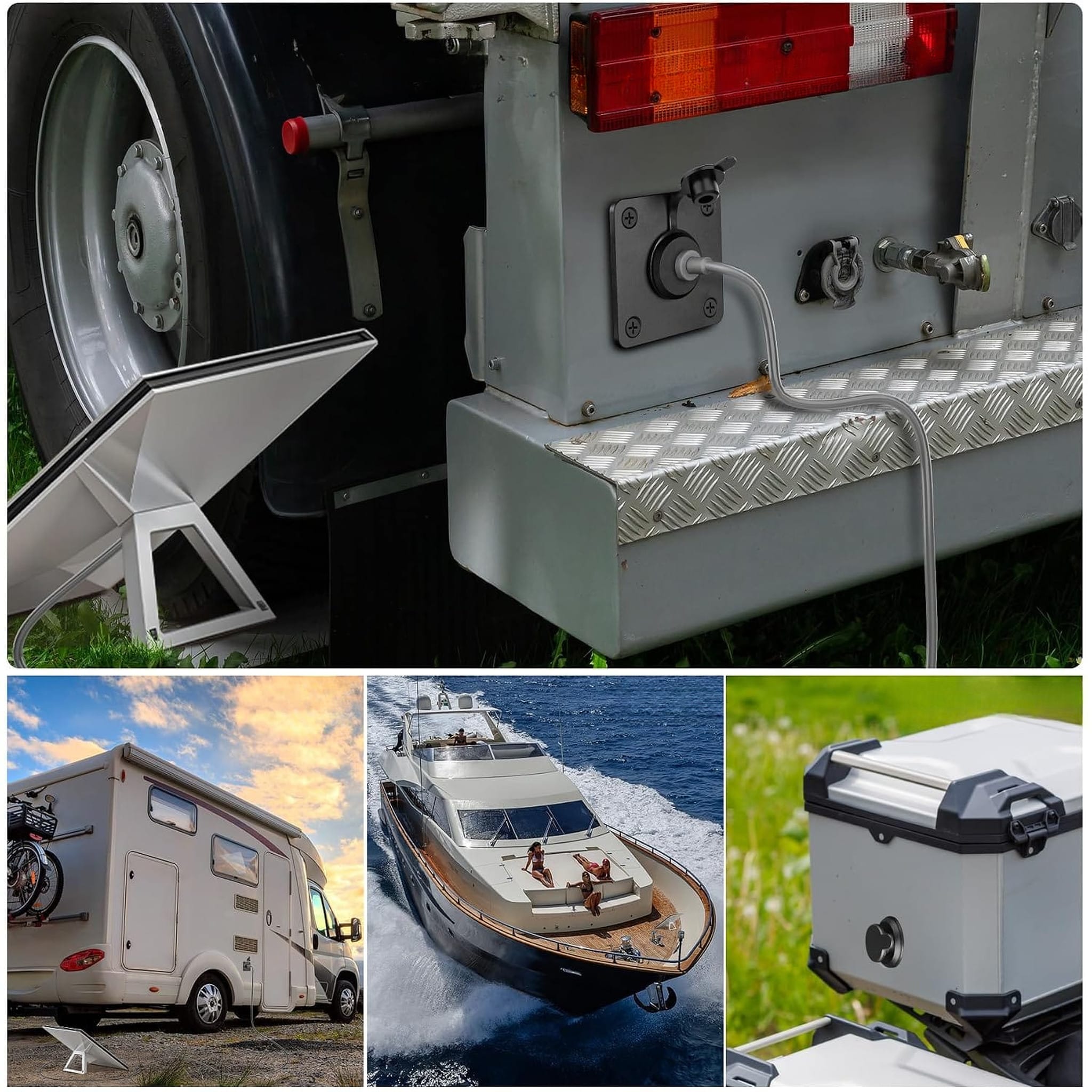

A sealed DC power point for the Starlink Mini. Mount it through the RV wall, van panel, boat bulkhead or the lid of a battery box, and the Mini's 5.5 x 2.1 mm power cable plugs straight in from outside. Inside, the 12 in pigtail ends in a 5521 male plug that mates with a Starlink Mini car charger or DC-DC power kit, or cut it and land the leads on a fused 12 V circuit. No cable through the door seal, no cap left open.

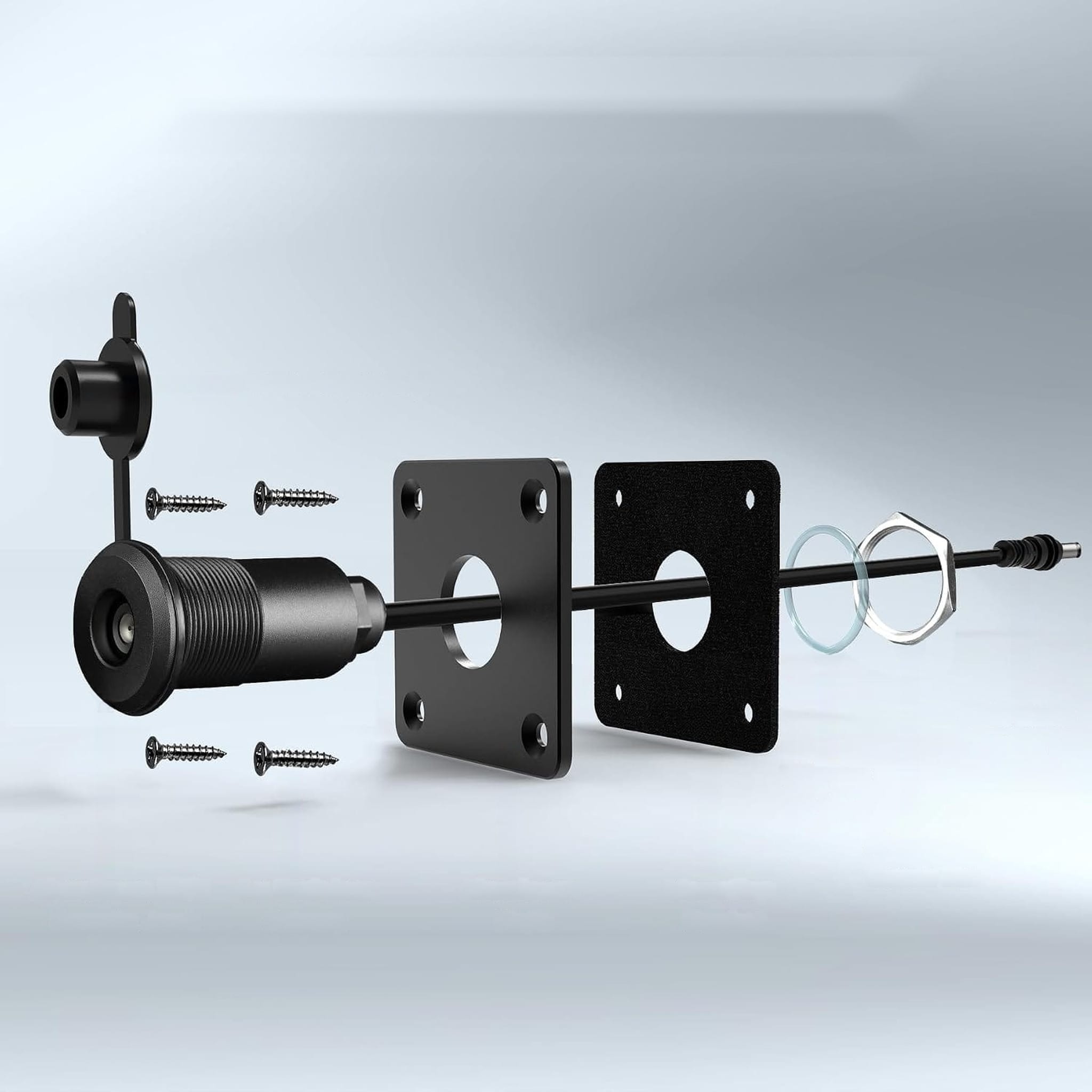

- CNC-turned anodized aluminum jack, aluminum plate and locknut; no painted steel, no plastic liner
- 5.5 x 2.1 mm female DC jack, rated 12 V 5 A (60 W) for the Starlink Mini; 12 in cable to a 5521 male plug
- Silicone O-ring, mounting gasket and tethered watertight cap
- Two install methods: 2.36 x 2.36 in plate with four stainless screws on flat panels, or the 1.05 in threaded body alone through a 1-1/8 in hole with the locknut for recessed installs
- Body length 1.26 in behind the panel
Wiring
The Mini draws up to 5 A at 12 V. Feed the socket from a 10 A fused circuit in 14 AWG (to 15 ft) or 12 AWG (to 25 ft), tinned copper on boats per ABYC E-11. The plug is center-positive; confirm polarity with a meter before connecting the dish. Pairs with the Gen3 Cat6 pass-through socket on installs that run both generations.
Starlink is a trademark of SpaceX. Conversions Tech is an independent distributor of compatible accessories and is not affiliated with SpaceX.
