1 Gang weatherproof Grey box with (3) 1/2" threaded outlets Deep

by Conversions Technology
Availability:
378 in stock, ready to be shipped
$4.89 - $4.89
$4.89
$4.89 - $4.89
$4.89
Request Distributor or Volume Pricing
SKU 210-31021

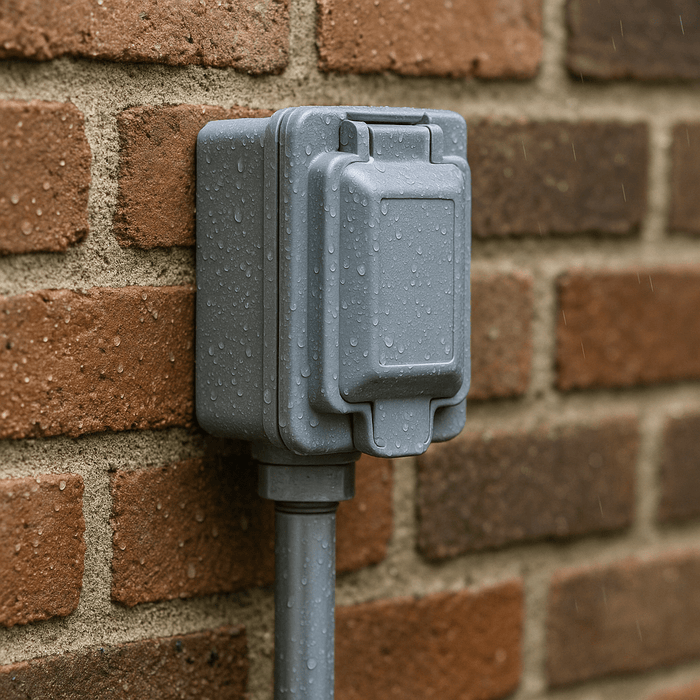

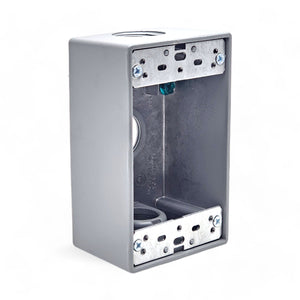

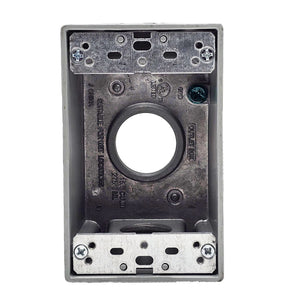

Conversions Tech Precision Die-Cast 1-Gang Electrical Box | Indoor / Outdoor Rated

Purpose-built for single-device installations—switches, GFCIs, sensors, or receptacles—this IP-sealed enclosure combines seamless A380 die-cast aluminum construction with a UV-stable powder-coat finish for uncompromising corrosion resistance in residential, commercial, or industrial environments.

Key Technical Specifications

Parameter Value Details
Material A380 die-cast aluminum 0.05 % max porosity, single-piece shell
Finish Polyester powder-coat RAL 7035 gray ≥2.5 mil, 1 000 h salt-spray compliant

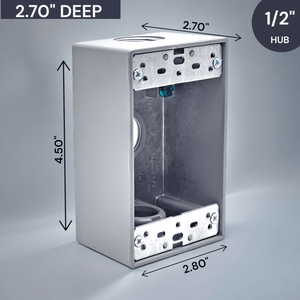

Envelope 2.80″ W × 4.50″ H × 2.70″ D ±0.010″ machining tolerance
Internal Volume 18.3 in³ Exceeds NEC 314.16(A) for 1-gang class
Hub Size / Thread ½″-14 NPSM Thread relief + O-ring groove

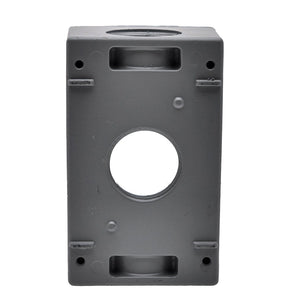

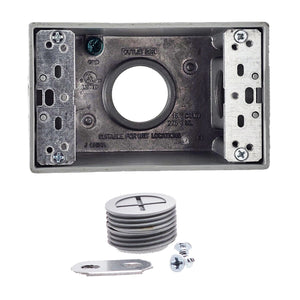

Hub Count / Locations 3 total (1) back, (2) sidewalls—aluminum closure plugs included
Ground Provision M4 × 0.7 mm green screw <0.05 Ω bonding path
Mounting #10-24 stainless lugs 3.50″ on-center, captive hardware
Compliance UL 514A / UL 50E RoHS III • NEMA 3R/4 rated

Installation Workflow

  1. Position & Anchor – Align box; secure via integrated lugs (25 lbf·in).
  2. Conduit Termination – Engage ½″ hubs 3½ turns; torque lock-nuts to 35 lbf·in.
  3. Device Wiring – Bond EGC to ground screw (12 lbf·in); maintain ¼-in strip length.
  4. Mount Device – Fasten switch/outlet to 6-32 bosses (8 lbf·in).
  5. Seal Unused Hubs – Install supplied plug + gasket (30 lbf·in).
  6. Verify Integrity – Meg-ohm test >100 MΩ @ 500 VDC; inspect cover gasket.

© 2025 Conversions Tech LLC. Specifications subject to change without notice.
