2-Gang Weatherproof Box 7×3/4" Hubs | Die-Cast Aluminum NEMA 3R/IP66
Shipping calculated at checkout
SKU: 210-31114
245 in stock
Open here

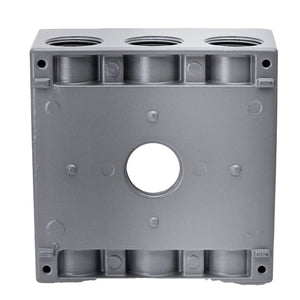

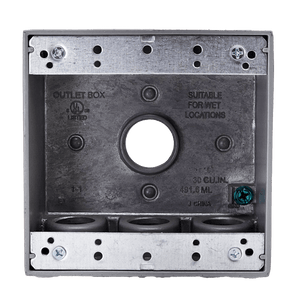

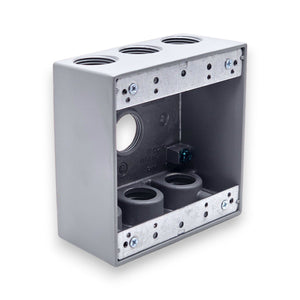

The Conversions Tech 2-gang weatherproof box is a die-cast aluminum enclosure engineered for dual-device mounting or multi-entry junction applications in wet, damp, or dry locations. Seven 3/4" threaded hubs provide flexible conduit routing for outdoor receptacles, switches, GFCIs, and industrial control terminations. The powder-coated gray finish resists UV degradation and corrosion. Designed to NEC Article 314 conductor fill requirements with integrated mounting lugs and ground screw provision.
Specifications
- Material: Die-cast aluminum with powder-coated gray finish

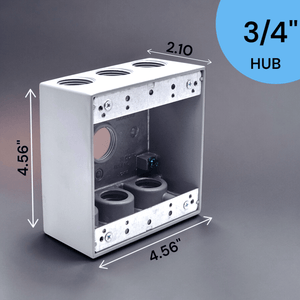

- Dimensions: Approximately 4.56" × 4.56" × 2.10" interior
- Threaded hubs: Seven 3/4" NPT — back and side entries

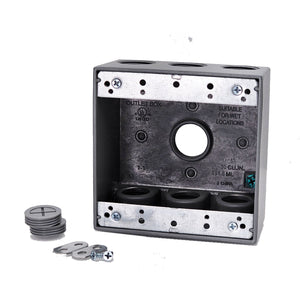

- Hardware included: Mounting lugs, ground screw, closure plugs
- Certifications: UL Listed, RoHS Compliant
- Environmental rating: NEMA 3R / IP66 equivalent
- Compliance: NEC Article 314 — Conductor Fill & Accessibility
- Mounting: Integrated lugs for surface installation
- Finish: UV and corrosion-resistant powder-coat (gray)
Cross-Reference
Equivalent to Crouse-Hinds and Appleton 2-gang weatherproof box form factors with multiple hub configurations. Provides comparable die-cast construction and environmental sealing at reduced cost for commercial and industrial electrical contractors.
FAQ
What conduit sizes fit the threaded hubs?
The seven hubs are 3/4" NPT threaded. Use 3/4" rigid, IMC, or PVC-coated conduit. Thread sealant or Teflon tape is recommended for wet-location installations per NEC 314.15.
Is this enclosure code-compliant for outdoor GFCI installations?
Yes. UL Listed and rated NEMA 3R / IP66 equivalent for rain-tight performance. Meets NEC Article 314 for wet locations when installed with appropriate cover and gasket per application requirements.
How many devices mount inside?
The 2-gang interior accommodates two standard wiring devices (receptacles, switches, GFCIs, or sensors) on standard mounting centers. Verify device depth against the 2.10" internal height for proper clearance.
Specifications
| Part Number | 210-31114 |
| Category | Tool |
| Weight | 1.0 lb |
| HS Code | 8203.20.6060 |
