1/2" EMT Grounding Bushings Insulated
Shipping calculated at checkout
SKU: 3114-0012
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

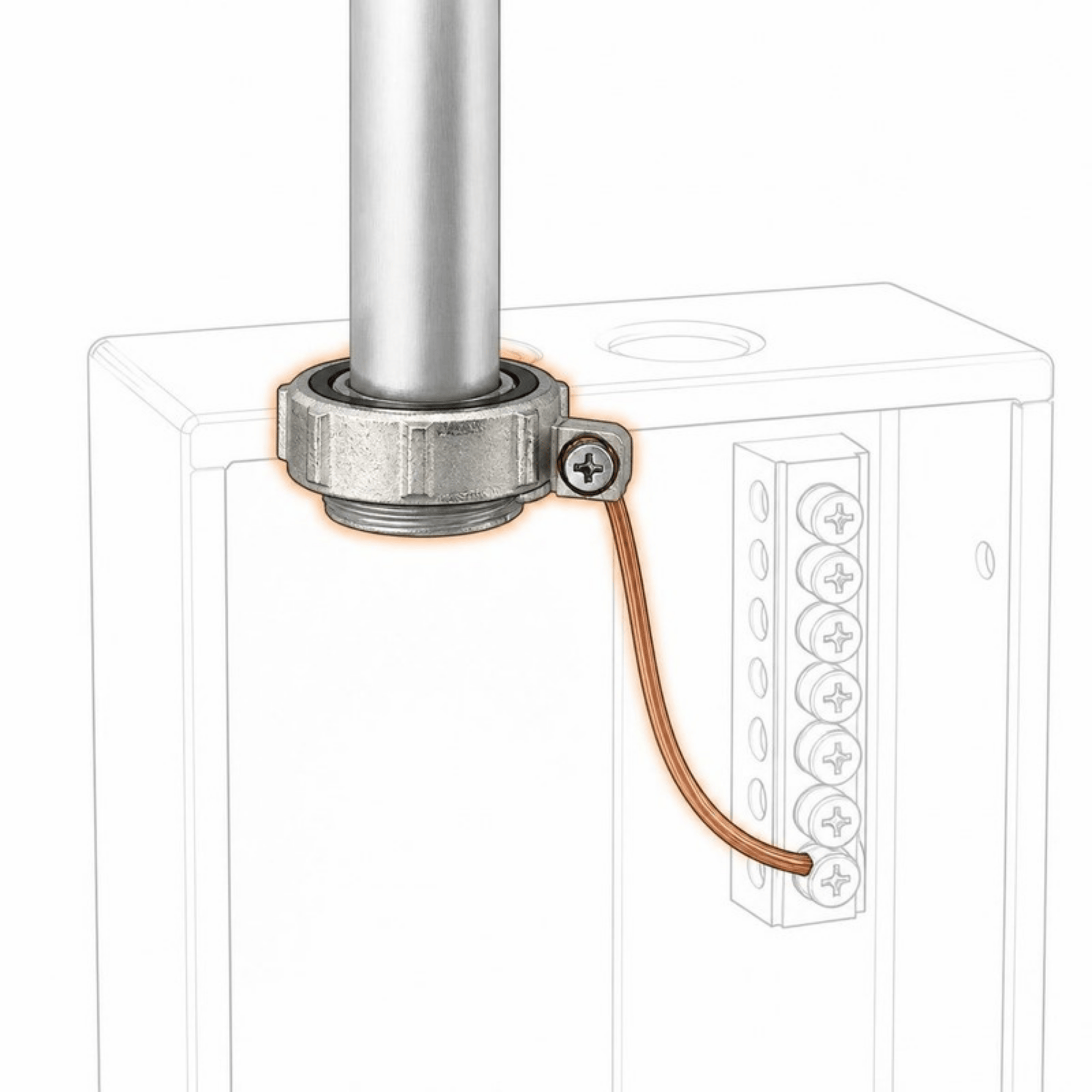

A Conversions Tech 1/2" EMT (Electrical Metallic Tubing) Grounding Bushing Insulated is a component used in electrical systems to provide a safe and reliable connection for grounding 1/2" EMT conduit. This bushing is designed to meet safety requirements and prevent electrical faults by using insulation to protect the conduit and other components.
Technical Specifications:
-
Material: Zinc die-cast
-
Thread Size: 1/2"
-
Insulation Rating: 150 Degree C
-
Minimum Ground Size: 14 gauge
-
Maximum Wire Size: 4 gauge
Application Use Cases:
-
Grounding electrical panels
-
Grounding conduit systems
-
Grounding equipment racks
-
Grounding machinery
Product Features:
-
Threaded for secure connection to conduit or enclosure
-
C-clamp grounding lug for easy installation of grounding wire
-
Dual rated for copper and aluminum conductors, providing flexibility in wire selection
-
Zinc die-cast construction for durability and corrosion resistance, making it suitable for various environments
-
150 Degree C insulation rating, allowing for use in a wide range of temperature applications
