1/2 in. Conduit Locknut, Steel | UL 514B | 3111-0012
Shipping calculated at checkout
SKU: 3111-0012
1000 in stock
Open here
CT 3111-0012 — 1/2" conduit locknut, zinc-plated steel. For EMT / rigid / IMC trade size 1/2 (OD 0.706"). UL 514B. Direct cross for RACO 1002.
| Part No. | 3111-0012 |
|---|---|
| Trade size | 1/2 in — fits OD 0.706 in |
| Raceway | EMT / rigid / IMC |
| Material / finish | Zinc-plated steel |
| Listing | UL 514B |
| Package | Sold each; box quantities priced through the trade desk |
Cross-reference
| Manufacturer | Part No. |
|---|---|
| RACO | 1002 |
| Bridgeport | 101-S |
Crosses identify fittings of the same trade size, raceway, and listing class. "Class" entries are family-level — confirm the exact number on the manufacturer datasheet.
Where it's used
- Securing connectors and nipples to boxes, panels, and enclosures
- Inside and outside locknut pairs on threaded rigid entries
- Bonding locknuts and grounding bushings are required instead where 250.92 / 250.97 apply
How to install

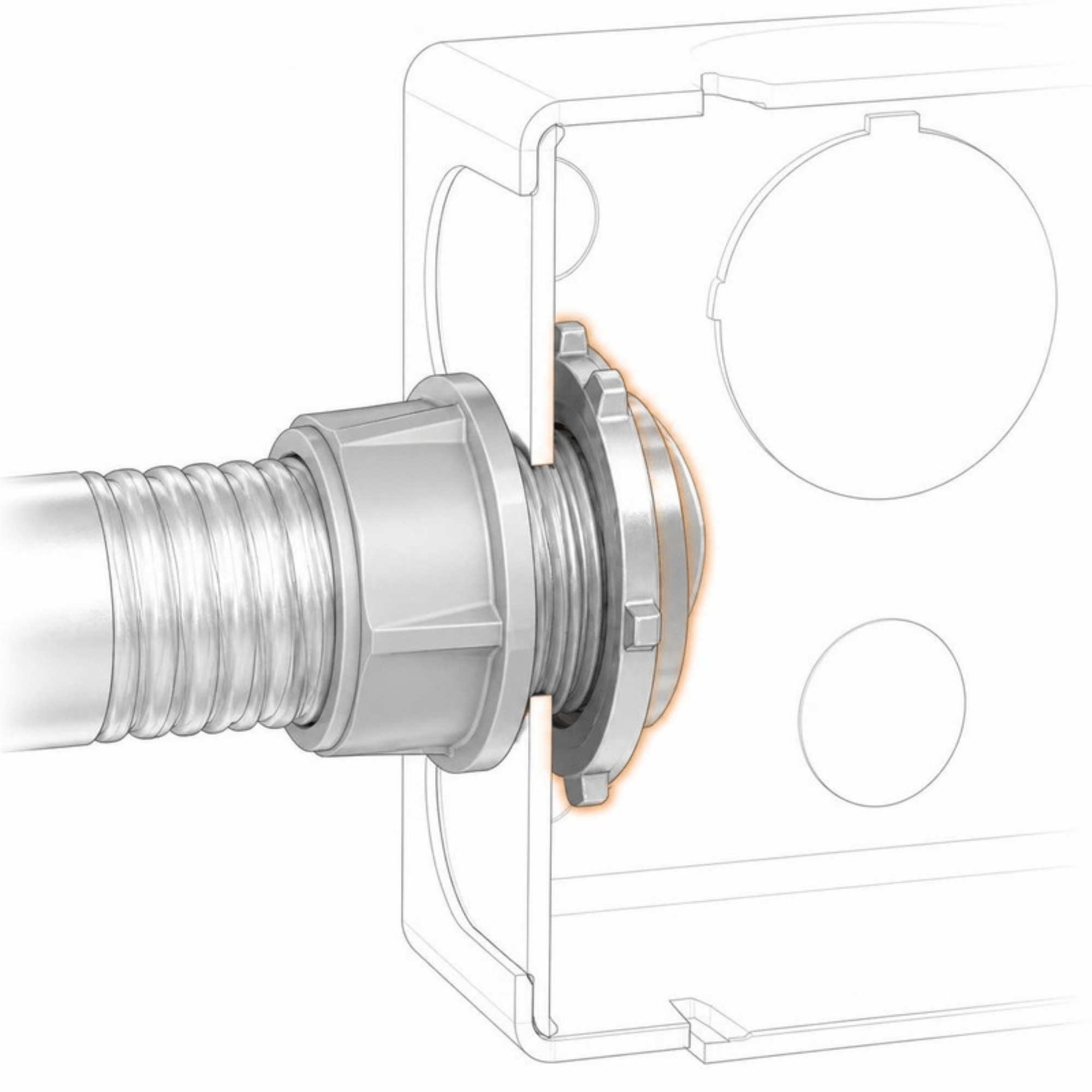

Teeth toward the enclosure, wrench-tight on bare metal (remove paint at the knockout). One inside on EMT connectors; one each side on threaded rigid nipples. Guide: Locknuts, Bushings and Grounding Bushings — NEC 250.97 / 250.92.
Complete the run — 1/2 in.
Connector · Coupling · Bushing · Grounding bushing · One-hole strap · Hanger
