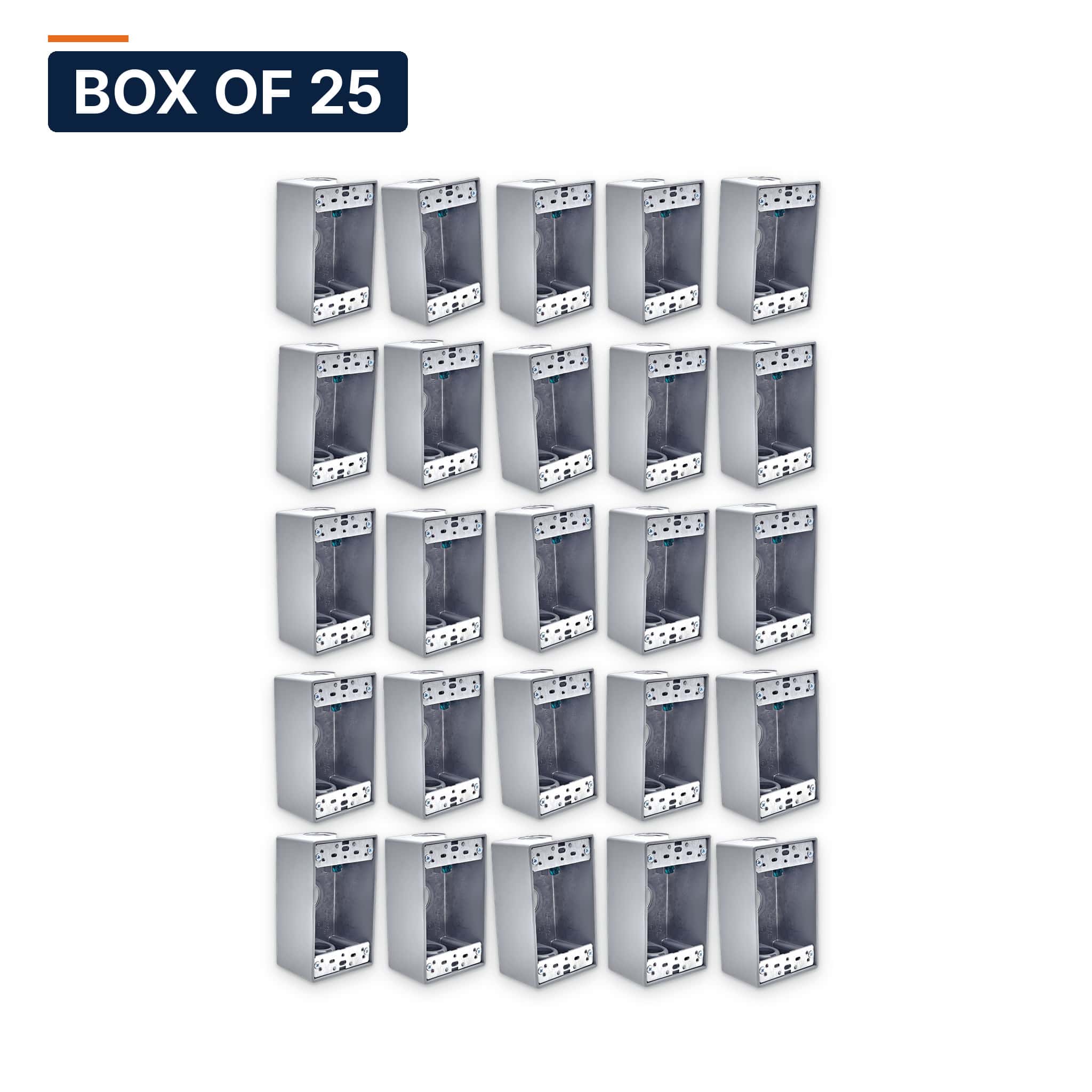

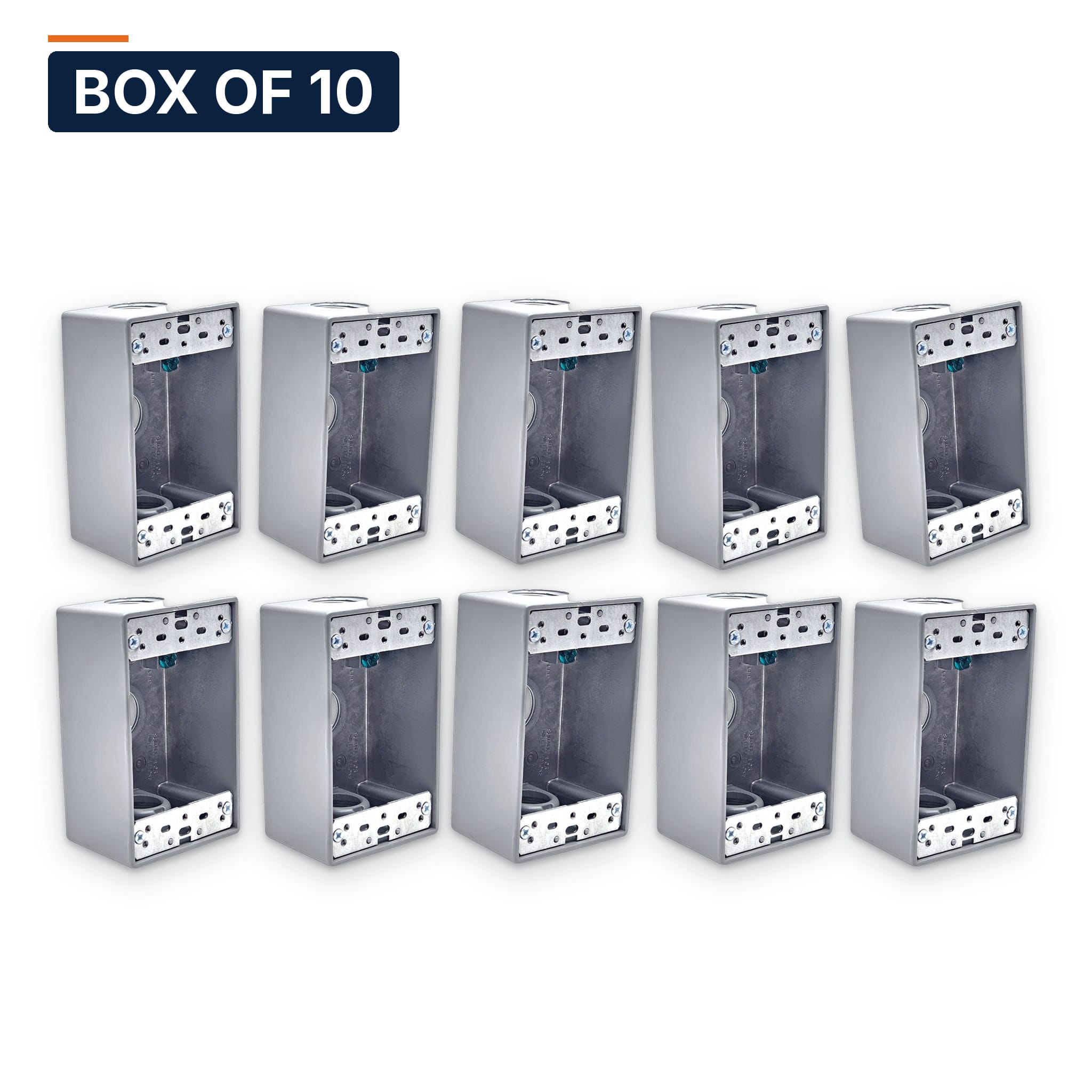

1-Gang Weatherproof Box 3×¾" Hubs Die-Cast Aluminum | 18.3 cu in NEMA 3R
Shipping calculated at checkout
SKU: 210-31054
159 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The 1-gang die-cast weatherproof box is engineered for wet, damp, or dry location installations requiring single-device housing for switches, receptacles, or GFCIs. The seamless die-cast aluminum construction with electrostatic powder-coat finish provides corrosion resistance for outdoor and industrial environments. Three ¾" threaded hubs enable flexible conduit entry configurations for branch circuit wiring.
Specifications
- Material: Die-Cast Aluminum Alloy
- Finish: Electrostatic Powder-Coat (Gray)
- Dimensions: 2.80" × 4.50" × 2.10" (D)
- Hub Configuration: Three ¾" NPT Threaded Hubs (back and two sides)
- Volume Capacity: 18.3 cu in
- Included Hardware: Ground Screw, Closure Plugs, Mounting Lugs
- Certifications: UL Listed, NEMA 3R, RoHS Compliant
- Standards: UL 514A, NEC Article 314
Cross-Reference
Equivalent to Crouse-Hinds and Appleton form types for 1-gang weatherproof applications. Conversions Tech specifications are engineered by our U.S. team and built to certified partner factory standards.
FAQ
What conduit sizes does this box accept?
The three hubs are ¾" NPT threaded. Use ¾" rigid conduit, IMC, or liquidtight flexible metal conduit with compatible fittings. Closure plugs are included for unused hubs.
Is this box NEMA 3R rated for rain protection?
Yes. NEMA 3R rating provides protection against falling rain, sleet, and external ice formation. Install with appropriate weatherproof cover for complete wet-location compliance per NEC 406.9.
Does the 18.3 cu in capacity meet code for my conductor fill?
18.3 cubic inches satisfies NEC Article 314.16 for common 1-gang device configurations. Calculate conductor fill: 14 AWG = 2.00 cu in per conductor, 12 AWG = 2.25 cu in, 10 AWG = 2.50 cu in. Count all conductors plus device yoke allowance.
