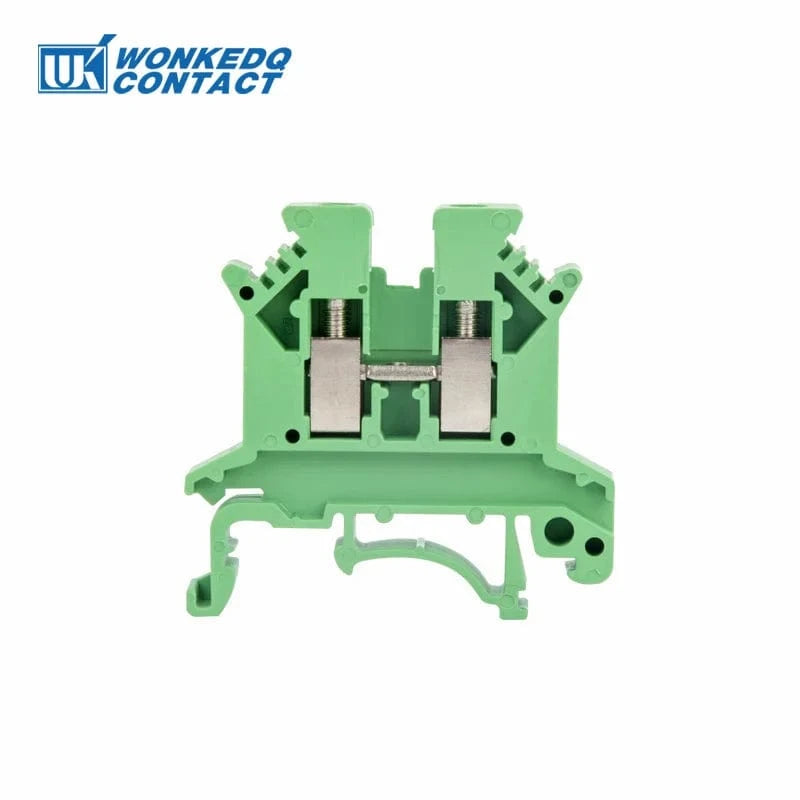

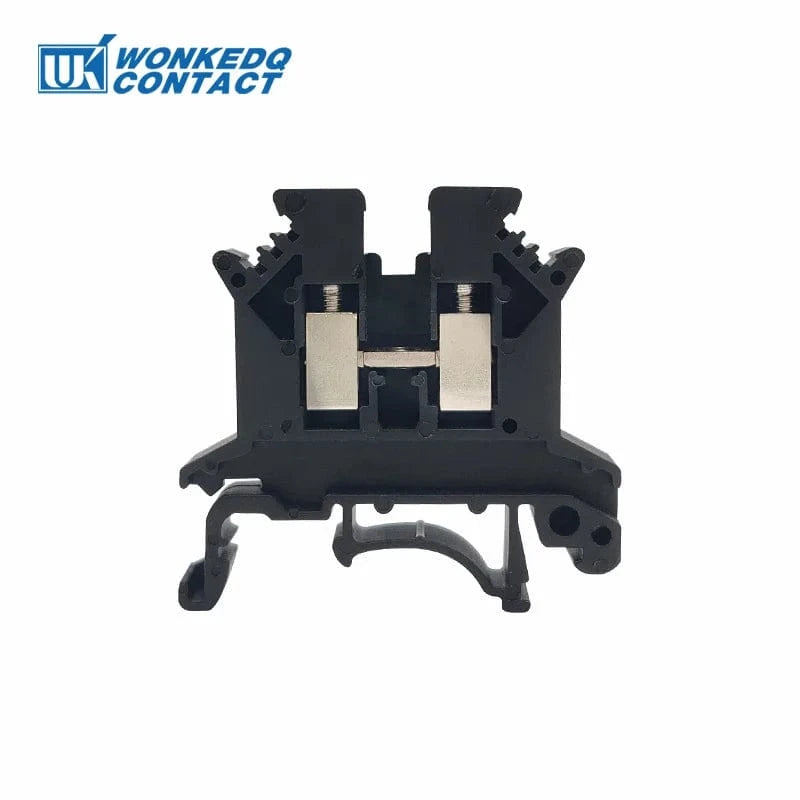

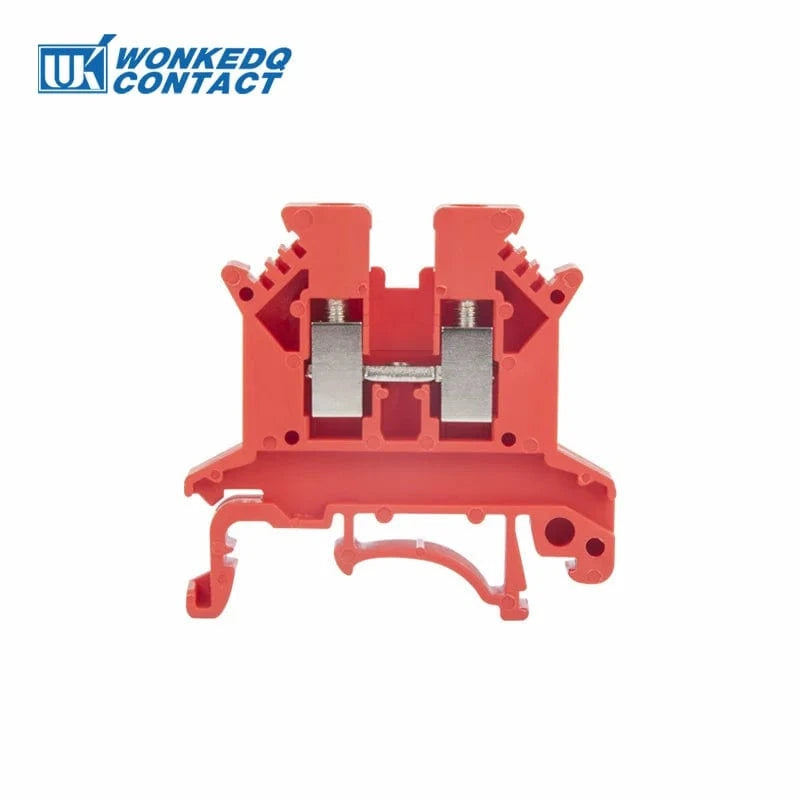

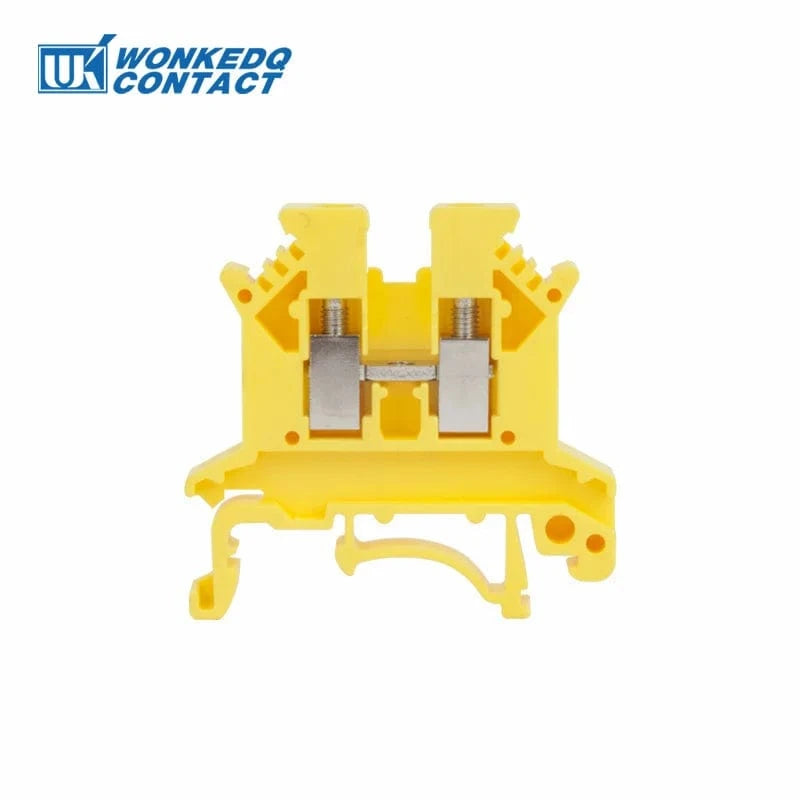

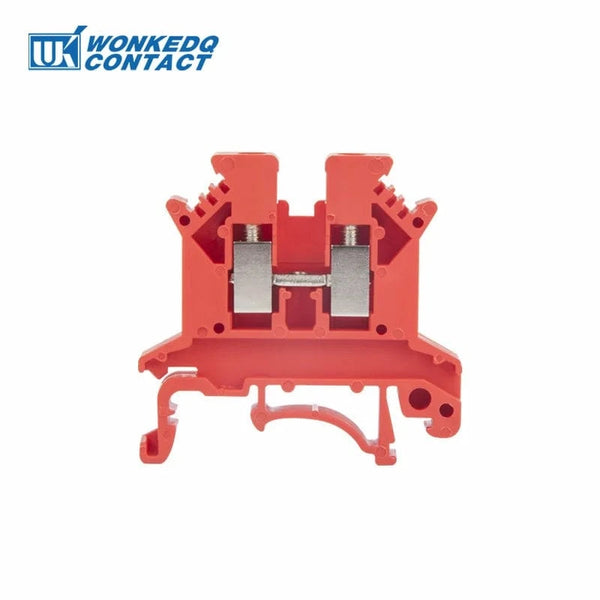

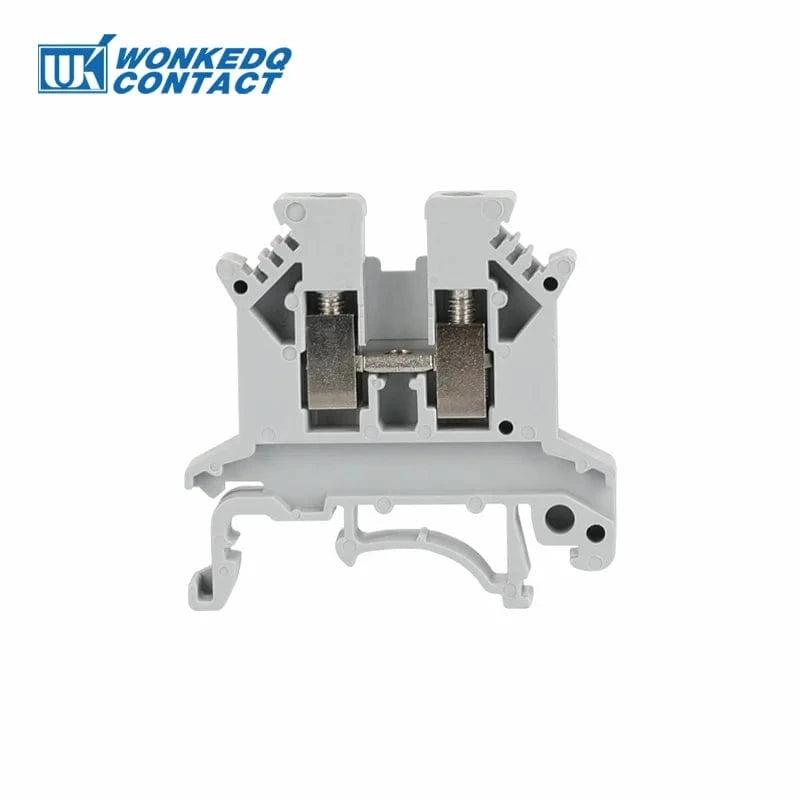

10Pcs UK 2.5 Terminal Block UK2.5B Screw Connection Connect Strip 2.5B 2.5mm² Cable Electrical Din Rail Wire Connector
Shipping calculated at checkout
SKU: 14:200002984#D-UK2.5;200497261:200000932#10 Pcs
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
SPECIFICATIONS
Application: Electrical wire conductor
Apply: Distribution Cabinet
Brand Name: WONKEDQ
Certification: CE,RoHS
Conductor Size: 24-12 AWG, 24-12 AWG
Connection method: Screw connection
Cross section soft cable: 0.2-2.5mm2
Cross section solid cable: 0.2-4mm2
Hign-concerned Chemical: None
Material: Nylon PA66
Model: UK 2.5B, UK 2.5, UK2.5
Model Number: UK2.5B UK2.5
Mounting Type: Din Rail
Number of Contacts: 1 - 10
Origin: Mainland China
Rated Voltage/Current: 800V/32A
Size L/H/W: 42.5/41/6.2
Standard: IEC 60947-7-1
Type: Screw Terminal
Usage: Distribution Panel
is_customized: Yes
item: Terminal block strips
|
|
|
|

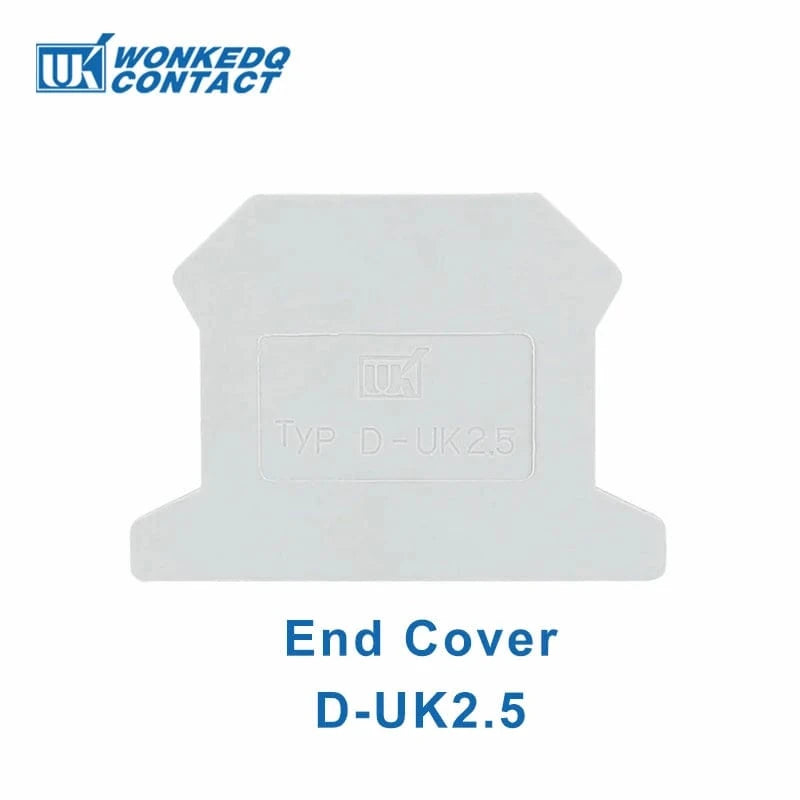

END COVER |

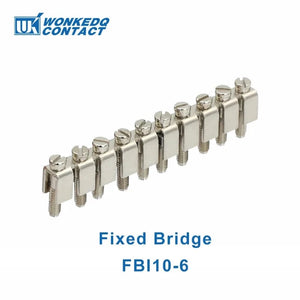

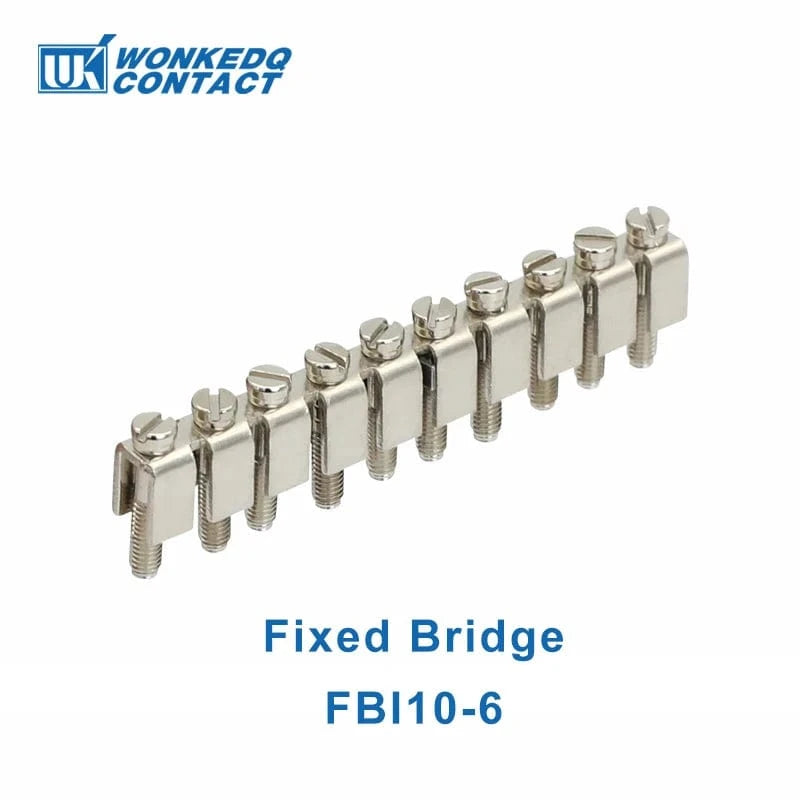

FIXED BRIDGE |
PLUG-IN BRIDGE |
MARKER STRIPS |
|
|
|
|
MARKER CARRIER |
MARKER CLIPS |
DIN RAIL |
END STOP |
Type No. |
Size |
Click The Pictures To Buy |
UK3N |
800V/32A 0.2-4mm⊃2;/0.2-2.5mm⊃2; L42.5/H46.2/W5.2 mm |
|
UK5N |
800V/41A 0.2-6mm⊃2;/0.2-4mm⊃2; L42.5/H46.2/W6.2 mm |
|
UK10N |
800V/76A 0.5-16mm⊃2;/0.5-10mm⊃2; L42.5/H46.2/W10.2 mm |
|
DIKD1.5 |
250V/32A 0.2-4mm⊃2;/0.2-2.5mm⊃2; L73/H54.5/W6.2 mm |
|
UDK-4 |
690V/32A 0.2-4mm⊃2;/0.2-4mm⊃2; L64/H46.2/W6.2 mm |
|
Type No. |
Details |
Accessories |

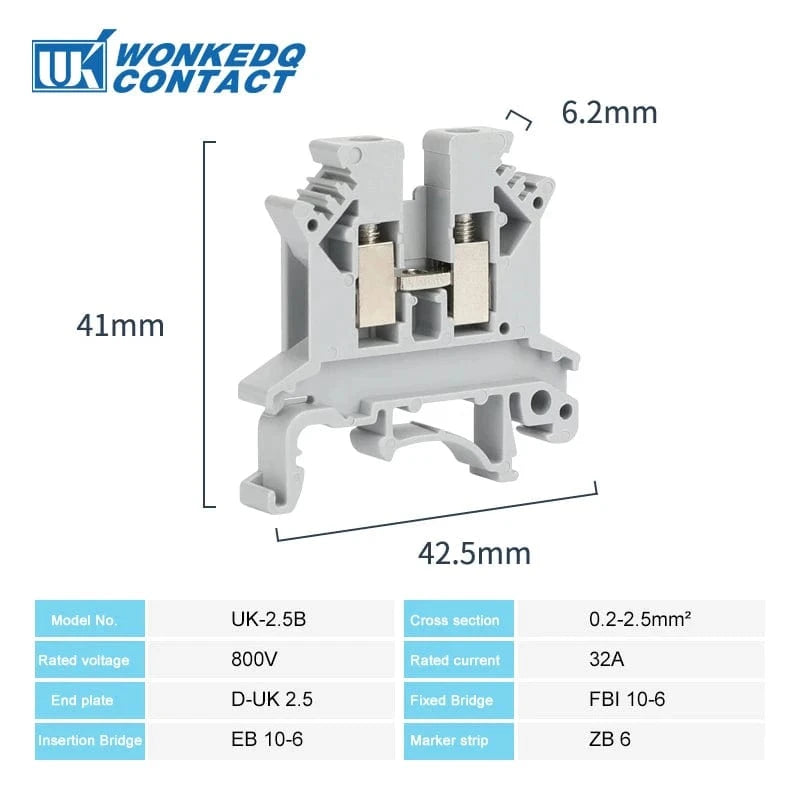

UK 2.5B |
800V/32A 0.2-4mm⊃2;/0.2-2.5mm⊃2; L42.5/H41/W6.2 mm |
End cover: |

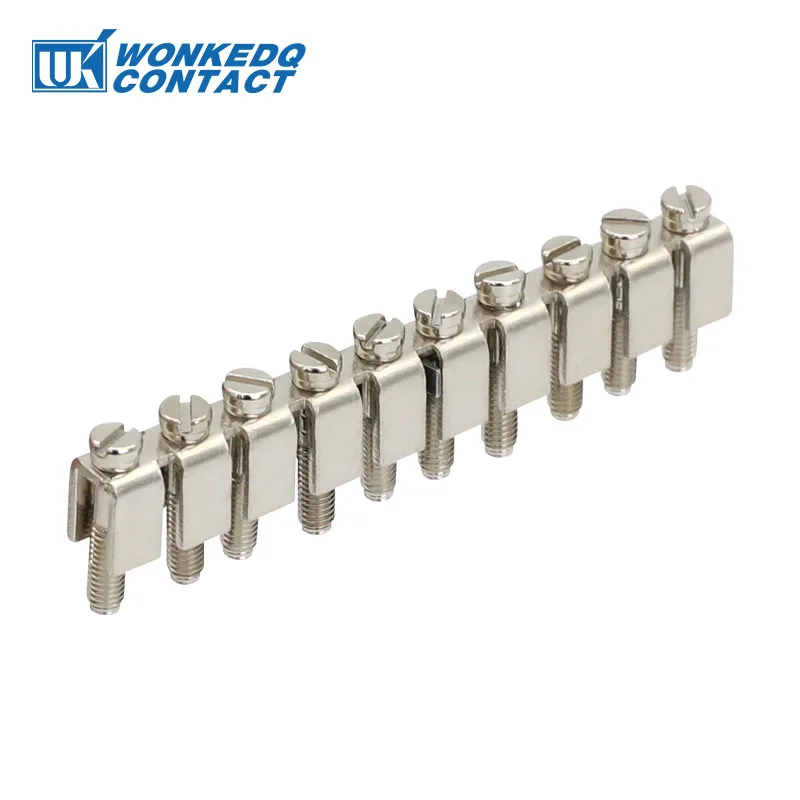

Fixed bridge: | ||

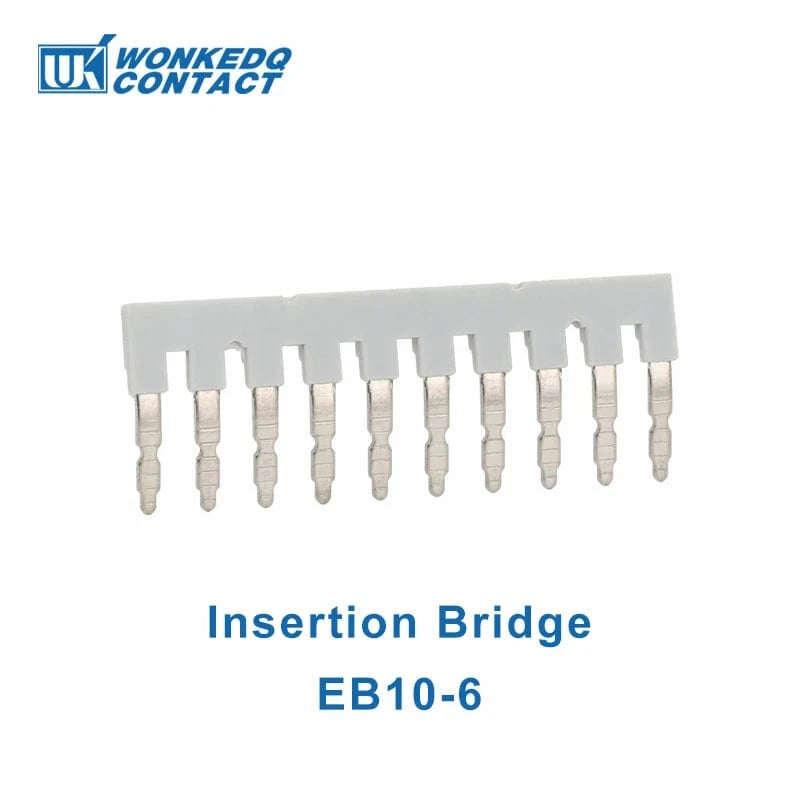

Insertion bridge: | ||

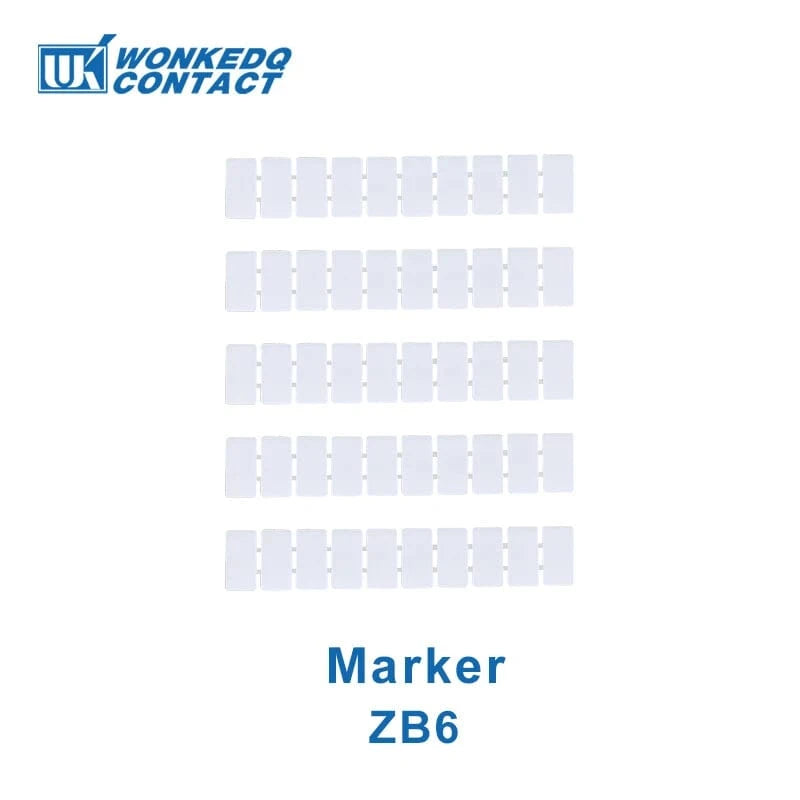

Marker strip: |
TECHNICAL PARAMETERS
Model Number |
UK 2.5B |
Color |
Grey, Blue, other color can be customized |
Length/Height/Wide (mm) |
42.5/41/6.2 |
Connection method |
Screw connection |
Material |
Nylon PA66 |
Rated Voltage/Current |
800V/32A |
Cross section, solid/soft Cable |
0.2-4 mm2/ 0.2-2.5 mm2 |
Conductor Size |
24-12 AWG |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Packing Detail |
6.9g/pc, 50PCS/BOX,3000PCS/CTN |
Certification |
CE/RoS/CQC/ISO 9001 |
