12 AWG Solid Grounding Pigtails with 10-32 Screws | 2-Pack | 686-012-2PC
Shipping calculated at checkout
SKU: 686-012-2PC
In stock
Open here

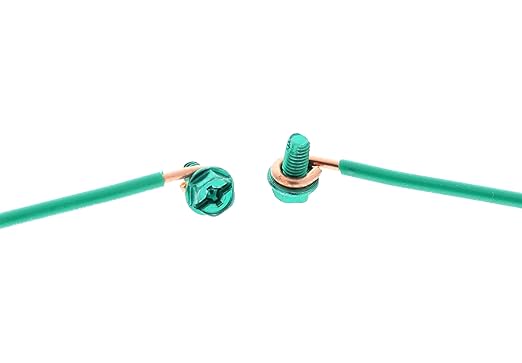

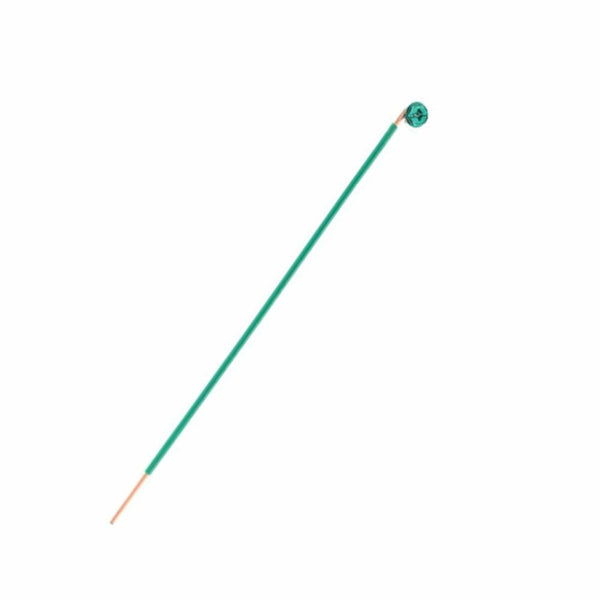

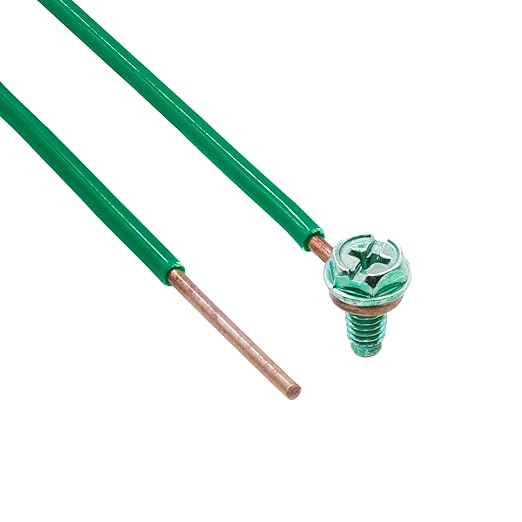

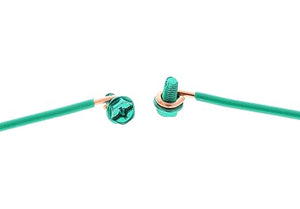

CT 686-012-2PC — 12 AWG solid copper grounding pigtails with green thread-forming 10-32 grounding screws, 2-pack. Same pigtail as our 50-pack, in a service-call quantity: pre-cut green tail, stripped end, captive screw. Bonds a device and metal box to the equipment grounding conductor without putting the device in series with the ground path.
| Part No. | 686-012-2PC |
|---|---|
| Conductor | 12 AWG solid bare-copper, green insulated tail, stripped one end |
| Screw | Green thread-forming 10-32 grounding screw, combination head |
| Package | 2 pigtails with screws |
| Rating | 600 V, 90°C conductor; screw meets NEC 250.8(A)(6) thread-forming machine screw |
Cross-reference
| Manufacturer | Part No. | Notes |
|---|---|---|
| Ideal | 30-3404 (50-pack) | Same pigtail class; Ideal sells in 50s |
Where it's required
- Every metal box with an equipment grounding conductor — NEC 250.148
- Bonding receptacle grounding terminals to metal boxes — NEC 250.146
- Device swaps and service calls where one or two tails are needed

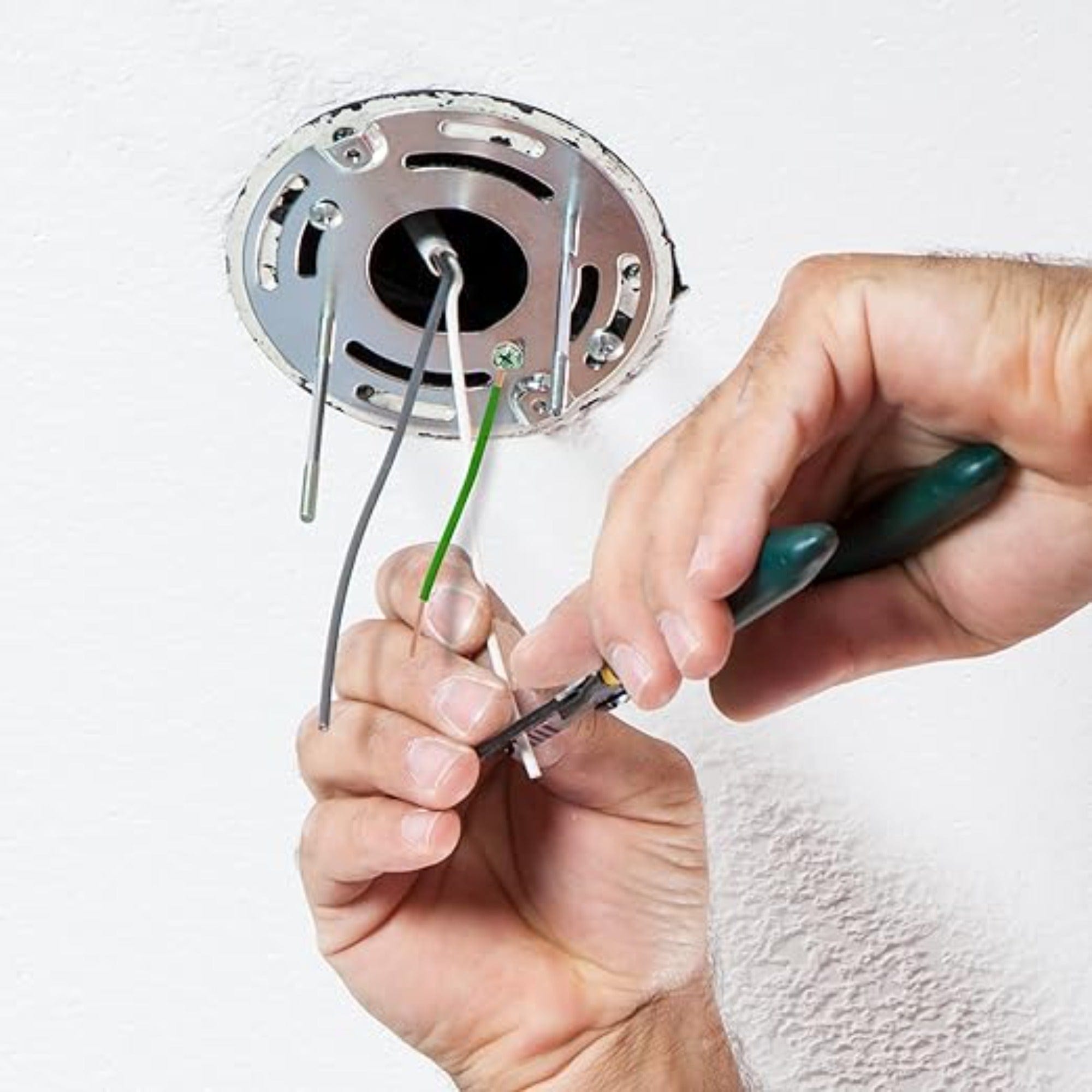

How to install
Join the circuit EGCs and the pigtail with a listed connector; drive the green screw into the box's factory-tapped 10-32 hole (never a knockout or a sheet-metal screw — NEC 250.8(B)); land the pigtail's free end on the device grounding terminal. Code detail: Grounding Accessories and the NEC.

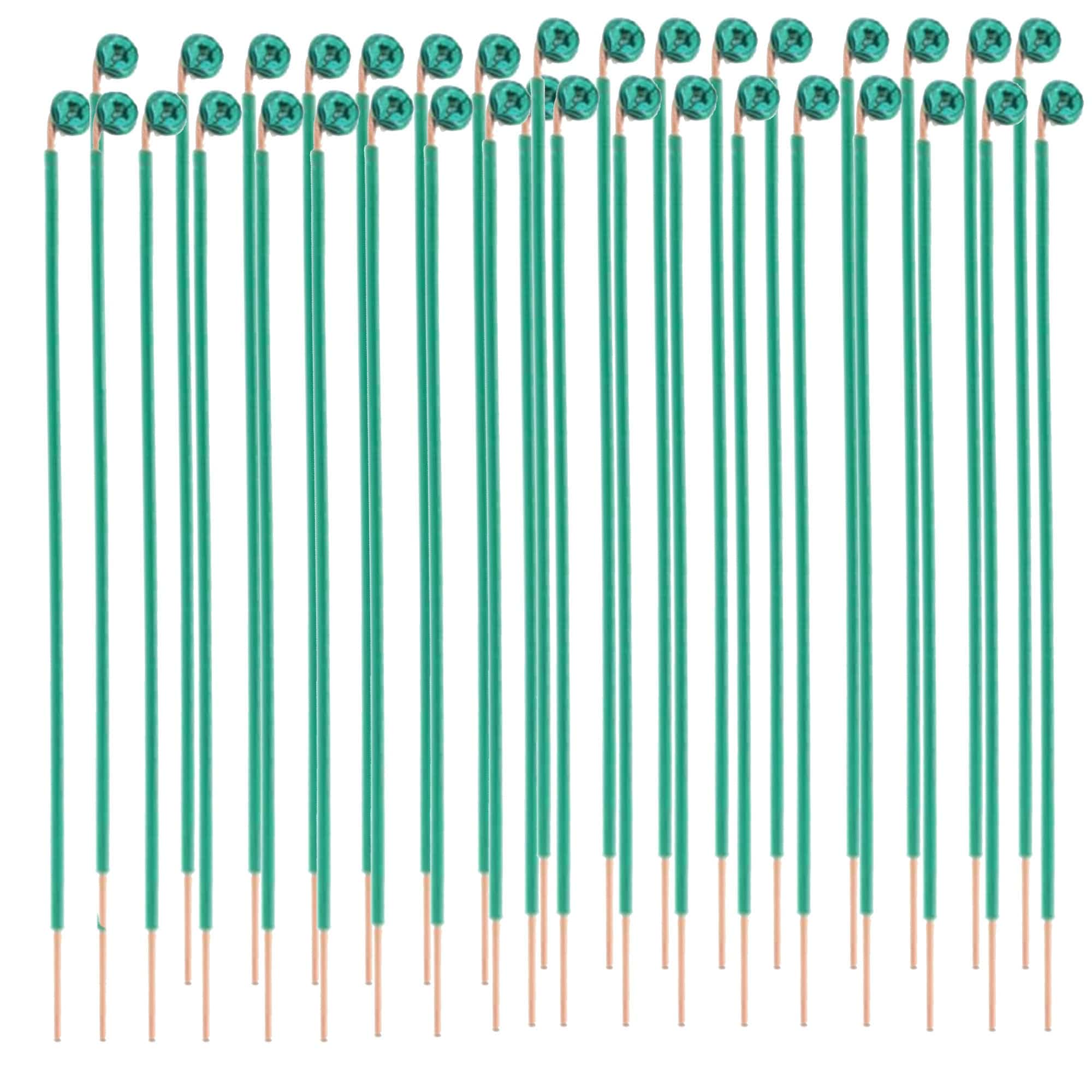

Ships from Oxnard, CA. Contractor quantity: 50-pack 686-012.
