DR Series DIN-Rail Switching Power Supply | DR-15 · DR-30 · DR-45 · DR-60 | 5V–24V Single Output | Conversions Tech INC.
The Conversions Tech DR Series Switching Power Supplies deliver reliable, efficient DC output for industrial automation, control panels, and LED systems. Available in 15W, 30W, 45W, and 60W models, each unit features a universal 100–240 VAC input, single DC output, and compact 35 mm DIN-rail mount for fast installation. Engineered to meet CE certification standards, the DR series ensures stable performance, low ripple, and overload protection for demanding applications.
General Technical Specifications
| Product Type | DIN-Rail Mounted Switching Power Supply |
| Input Voltage | 100 – 240 VAC, 50/60 Hz |
| Output Type | Single Output (5V, 12V, 15V, or 24V DC) |
| Mounting Type | 35 mm DIN Rail — Compact Enclosure |
| Efficiency | ≥ 85% Typical (Model Dependent) |
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Protection Features | Short-Circuit · Overload · Over-Voltage · Overheat |
| Certifications | CE · RoHS Compliant |
| Warranty | 12-Month Manufacturer Warranty |
Model-Specific Details

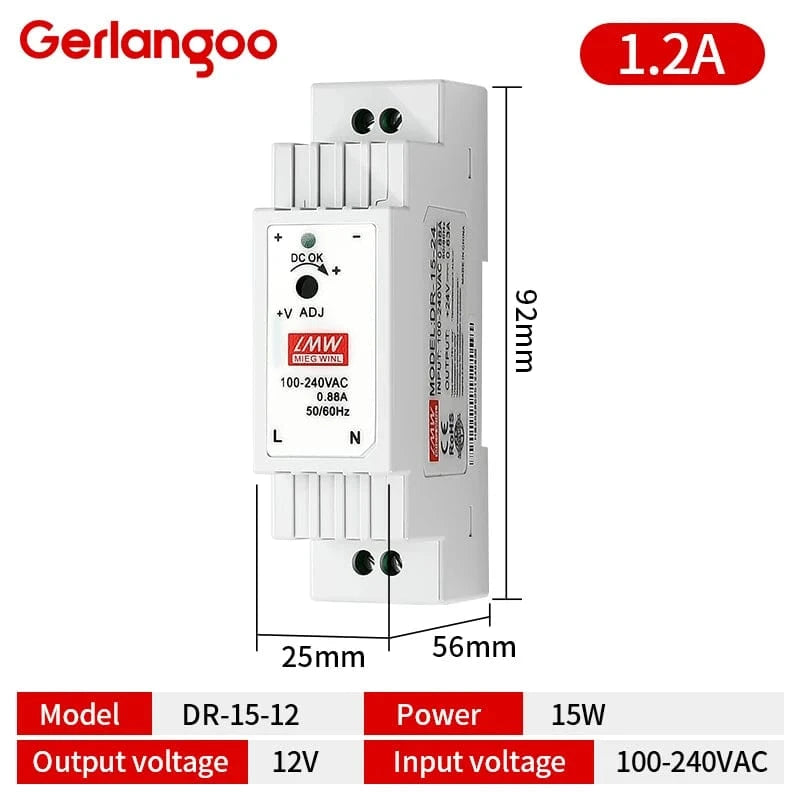

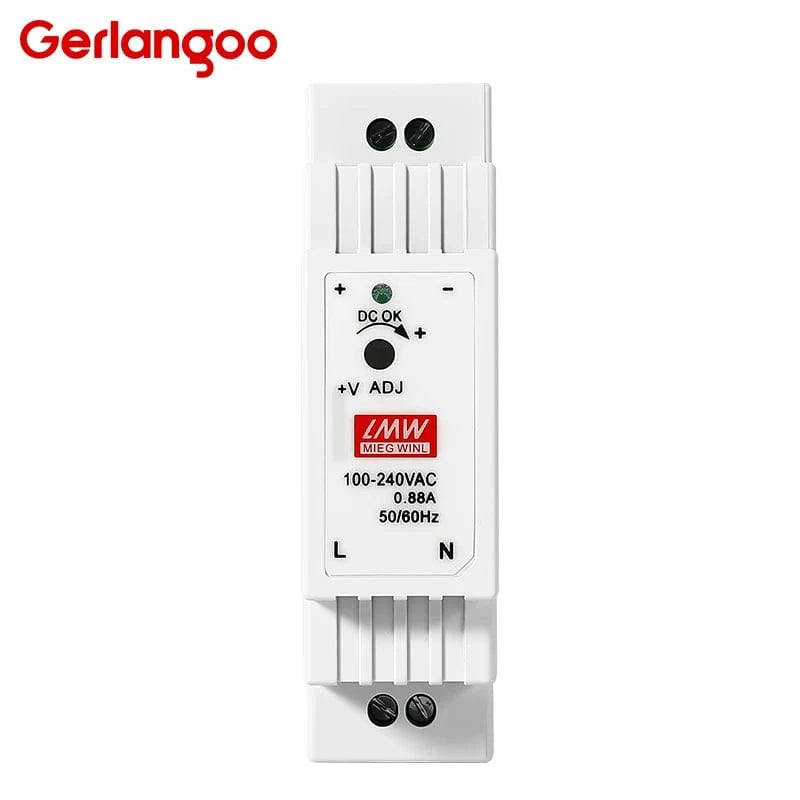

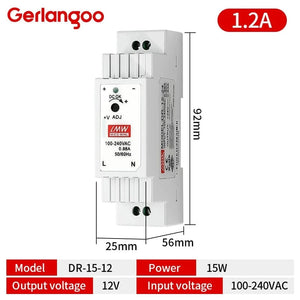

DR-15 — 15W Power Supply
| Output Voltage / Current | 5V / 2.4A · 12V / 1.25A · 15V / 1A · 24V / 0.63A |
| Rated Power | 15W |
| Input Current | 0.88A @ 100–240VAC |
| Mounting | 35 mm DIN Rail — Easy Installation |
DR-30 — 30W Power Supply
| Output Voltage / Current | 5V / 3A · 12V / 2A · 15V / 2A · 24V / 1.5A |
| Rated Power | 30W |
| Input Current | 1.1A @ 100–240VAC |
| Mounting | 35 mm DIN Rail — Compact Housing |

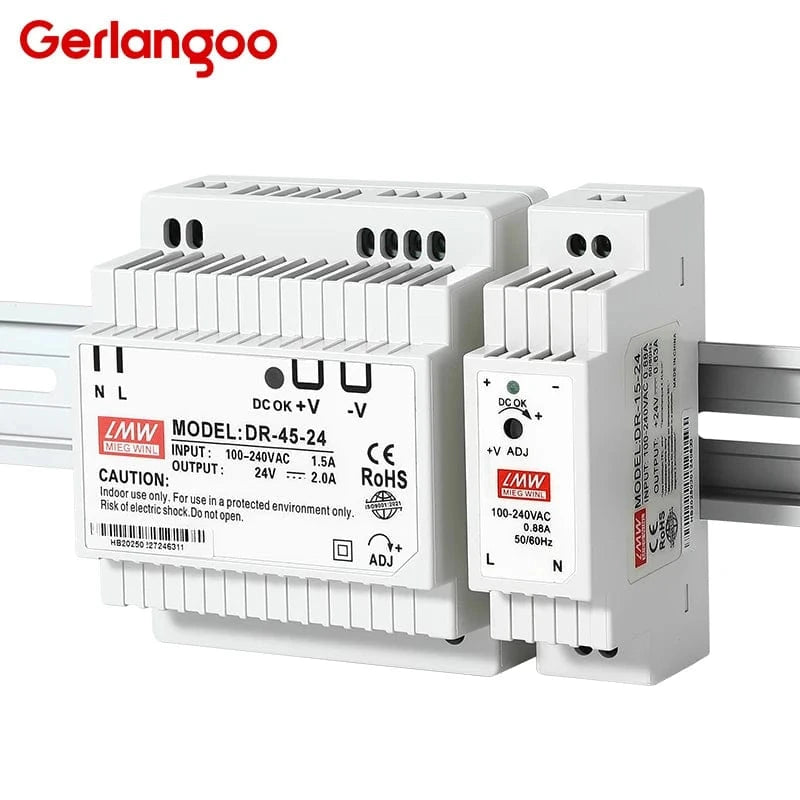

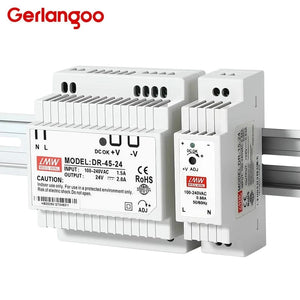

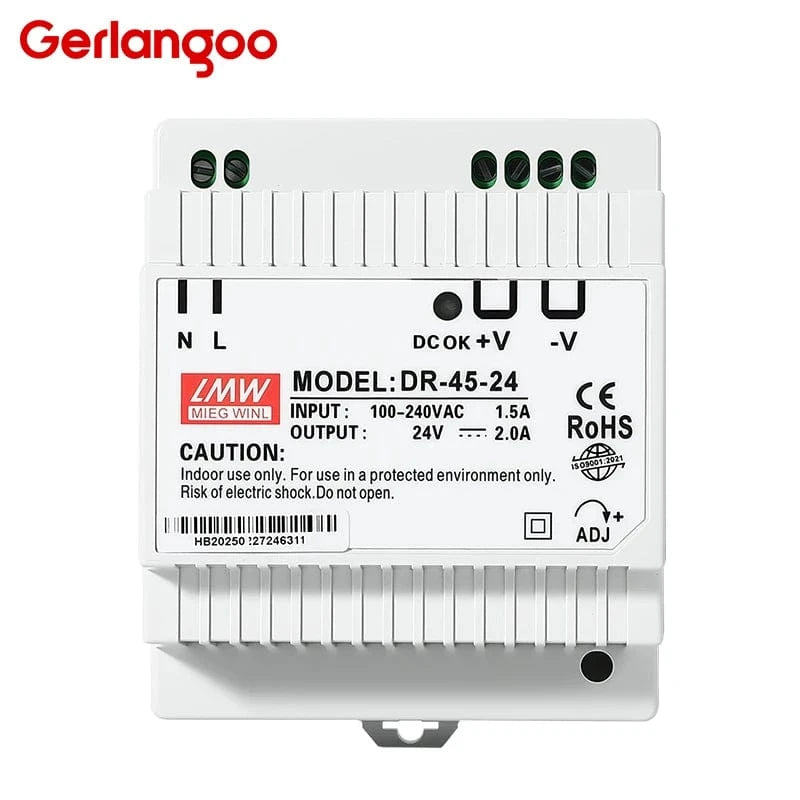

DR-45 — 45W Power Supply
| Output Voltage / Current | 5V / 5A · 12V / 3.5A · 15V / 2.8A · 24V / 2A |
| Rated Power | 45W |
| Input Current | 1.5A @ 100–240VAC |
| Mounting | 35 mm DIN Rail — Quick Snap Fit |

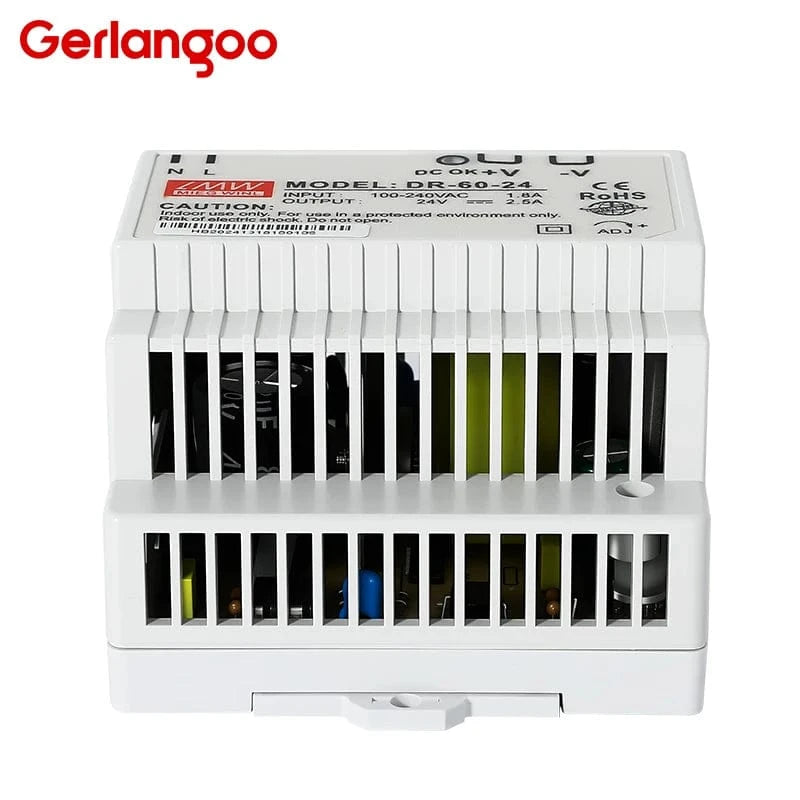

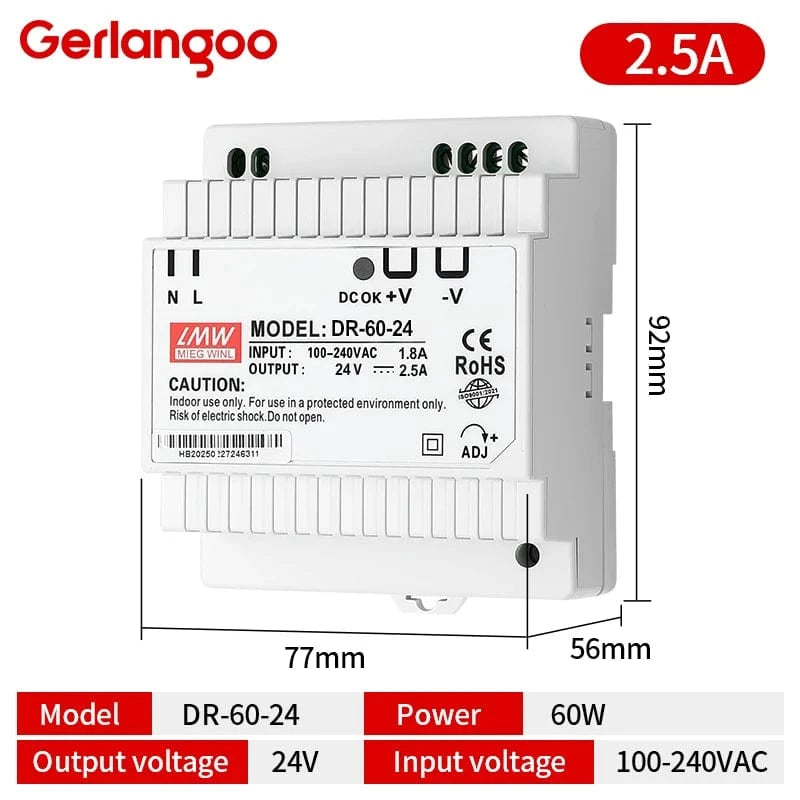

DR-60 — 60W Power Supply
| Output Voltage / Current | 5V / 6.5A · 12V / 4.5A · 15V / 4A · 24V / 2.5A |
| Rated Power | 60W |
| Input Current | 1.8A @ 100–240VAC |
| Mounting | 35 mm DIN Rail — Industrial-Grade Construction |
Key Features & Benefits
- Universal Input Voltage: Operates on 100–240 VAC for global installations.

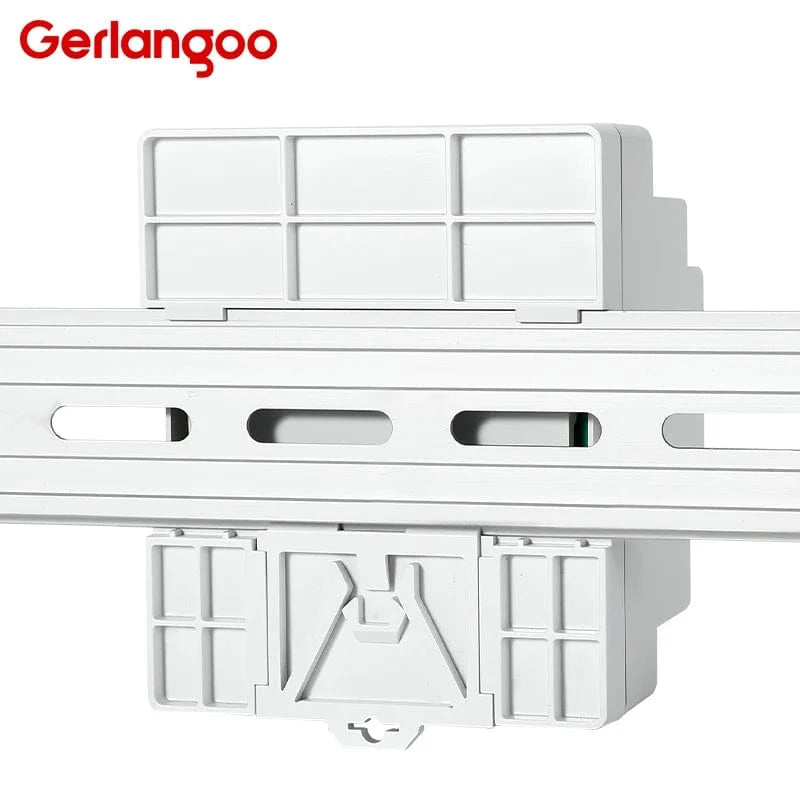

- DIN Rail Design: Snap-on mounting for quick integration in control panels.
- Single Output: Available in 5V, 12V, 15V, and 24V configurations.
- High Efficiency: Stable DC power with minimal heat and ripple.
- Protection Built-In: Short-circuit, overload, and over-voltage safeguards.
- CE Certified: Complies with global electrical safety and EMC standards.
Applications
- Industrial automation and process control
- LED lighting and signage power systems
- Panel-mounted control and PLC systems
- Security, access control, and monitoring equipment
Installation Notes
- Ensure power is off before installation or wiring.
- Mount securely to 35 mm DIN rail; verify ventilation clearance.
- Connect input and output terminals per voltage rating.
- Do not exceed rated load to maintain efficiency and longevity.
Why Choose Conversions Tech INC?
- Industrial Reliability: Designed for continuous operation in demanding environments.
- Compact Footprint: DIN-rail mount saves panel space while maintaining accessibility.
- Global Compliance: CE and RoHS certified for international use.
- Technical Support: 24/7 customer assistance and engineering support.
- Warranty: Backed by a 12-month manufacturer warranty for peace of mind.
Frequently Asked Questions (FAQs)
1. What input voltage range do these power supplies support?
Each DR model accepts a wide input range of 100–240 VAC at 50/60 Hz.
2. Are these power supplies suitable for DIN-rail mounting?
Yes — all models are designed for 35 mm DIN-rail systems for quick installation.
3. Do these units have overload protection?
Yes. Built-in overload, over-voltage, and short-circuit protection ensure reliable operation.
4. Which models are available in 24V output?
24V versions are available in all four power classes: DR-15, DR-30, DR-45, and DR-60.
5. What’s the difference between DR-15 and DR-60?
DR-15 offers 15W of output power for compact devices; DR-60 delivers 60W for higher current industrial loads.
6. Are these power supplies CE certified?
Yes — the entire DR Series meets CE and RoHS standards for electrical safety and quality.
