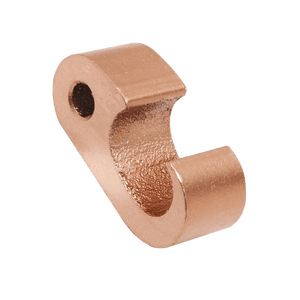

Fig 6 Irreversible Compression Ground Tap Connector #8-6 STR | 600V
Shipping calculated at checkout
SKU: 610-23172
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Fig 6 Irreversible Compression Ground Tap Connector is a dual-function tap connector and tap splice designed for grounding and bonding applications. Engineered for direct burial installations, this connector accommodates two continuous parallel conductors and is compatible with copper bonded ground rods and rebars. The compact profile simplifies taping in tight enclosures.
Specifications
- Conductor range: #8-6 STR (also accommodates #6-2 STR)
- Material: copper alloy
- Voltage rating: 600V
- Temperature rating: 90°C heat resistant
- Pre-filled with anti-oxidant compound
- Accommodates two continuous parallel conductors
- Compatible with 1/2", 5/8", and 3/4" copper bonded ground rods
- Compatible with rebars
- UL 467 listed
- UL 96 listed for lightning protection
- Application: direct burial
Cross-Reference
Equivalent to irreversible compression ground tap connectors from major manufacturers. Four die sets and eight connectors required for full range coverage from #8 solid to 500 kcmil.
FAQ
What die sets are required for installation?
The Fig 6 connector requires four die sets and eight connectors to achieve the full conductor range from #8 solid through 500 kcmil. Proper tooling selection ensures correct compression and electrical integrity.
Is this connector suitable for direct burial without additional protection?
Yes. The connector is specifically designed for direct burial applications and carries UL 467 listing for grounding and bonding. The copper alloy construction and pre-filled anti-oxidant compound provide corrosion resistance in underground environments.
Can this connector be used for lightning protection systems?
Yes. The Fig 6 connector is UL 96 listed for lightning protection applications, making it suitable for grounding electrode connections in lightning protection systems per NFPA 780 requirements.
