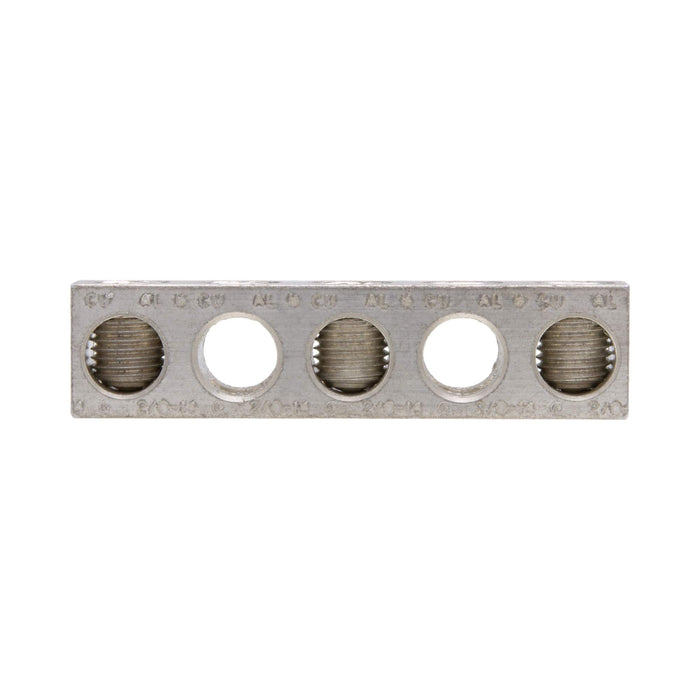

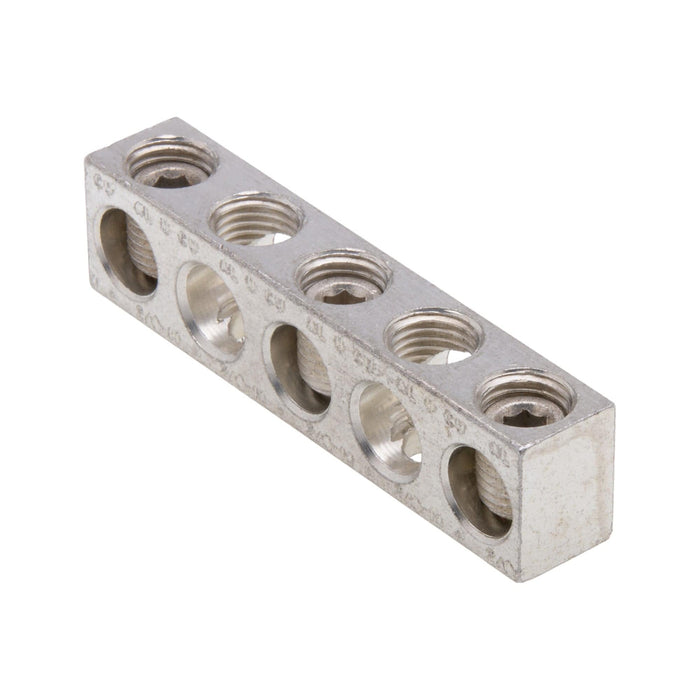

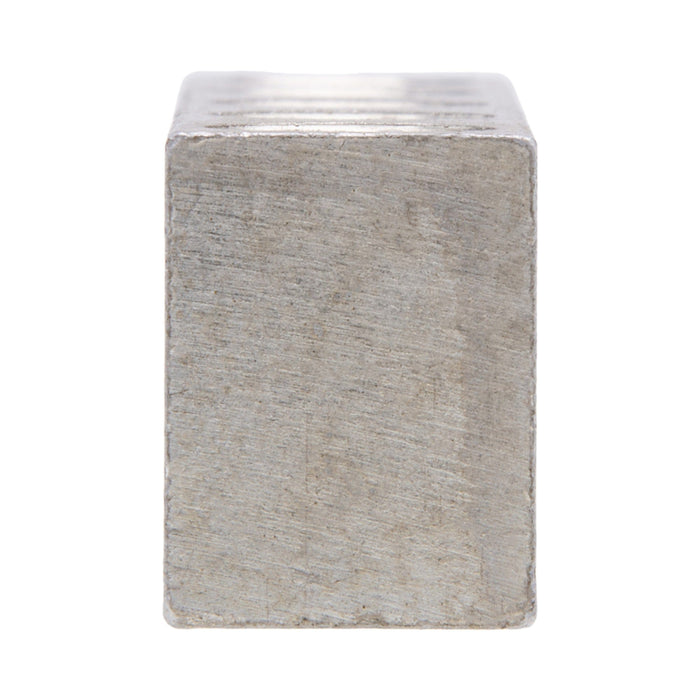

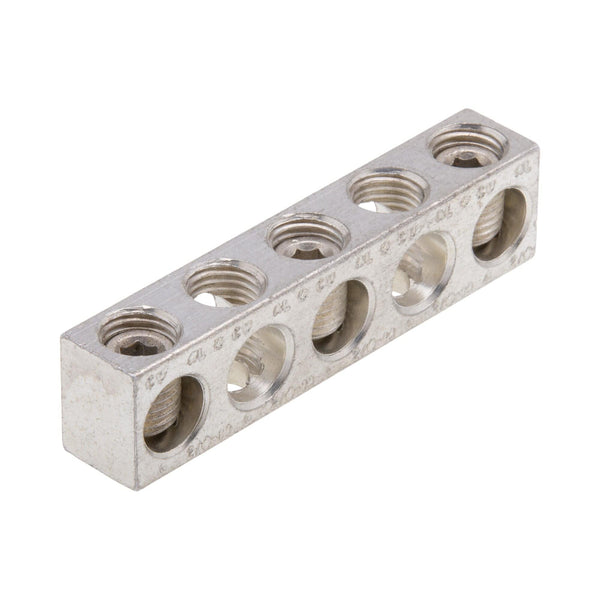

Neutral Bar, Aluminum, 5 Positions, 14 AWG–4 AWG, Dual Rated AL9CU, Tin Plated | 210-22432
Shipping calculated at checkout
SKU: 210-22432
Only 6 in stock
At a glance: CT 210-22432 — 5-position aluminum neutral bar for 14 AWG–4 AWG conductors. Tin plated and dual rated AL9CU, so copper and aluminum conductors can land in adjacent positions.
Specifications
| Part number | 210-22432 |
|---|---|
| Positions | 5 |
| Wire range per terminal | 14 AWG–4 AWG (all positions, per catalog) |
| Material | Aluminum, tin plated |
| Rating | Dual rated AL9CU (copper or aluminum conductors) |
Where it's used
- Common neutral point in load centers and panelboards
- Neutral and equipment-grounding assemblies in control cabinets and enclosures
How to install
Aluminum conductors: wire brush and apply oxide inhibitor before insertion. Bond the bar to the enclosure only where it serves as the equipment ground or at the service disconnect; isolate neutral bars downstream of the service.
