Cat5e CMR 1000ft Box | Red | Bare Copper | Riser | Ethernet Cable
Shipping calculated at checkout
SKU: 960-235
100 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

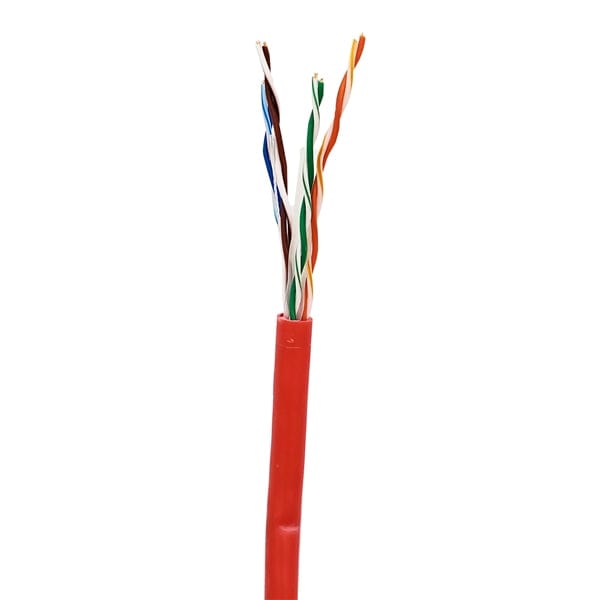

1000-ft Cat 5e Bulk Ethernet Cable – Solid 24 AWG Copper, 350 MHz, CMR Riser | Conversions Tech™
Conversions Tech™ Cat 5e High-Performance Cable delivers blazing-fast Gigabit bandwidth and rock-solid Power-over-Ethernet from MDF to IDF and every drop ceiling in between. Each precisely balanced solid 24 AWG bare-copper conductor crushes crosstalk, powering data, VoIP and 4K IP cameras up to 350 MHz—all inside a UL-listed CMR riser jacket built for vertical shafts. Shipped on a zero-tangle professional pull spool, this 1000-ft run shaves hours off big installs while our legendary FOREVER WARRANTY keeps downtime at zero.
Key Performance Benefits
- 350 MHz Tested Headroom —out-performs ANSI/TIA-568.2-D for flawless 10/100/1000 BASE-T & low-latency 4K streaming.
- Pure Bare-Copper Core —99.99 % conductivity trumping CCA for cooler PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) runs up to 90 W.
- Ultra-Low Return Loss —tight twist geometry and advanced dielectric slash EMI & NEXT for mission-critical links.
- CMR Riser Flame Rating —UL 444-compliant jacket resists vertical flame spread; RoHS 3 & cETLus certified.
- Installer-Friendly Packaging —1000 ft (305 m) continuous length, sequential footage markers & snag-free payout.
- FOREVER WARRANTY —lifetime replacement from Conversions Tech for unmatched peace of mind.
Technical Specifications
| Category | Cat 5e (ANSI/TIA-568.2-D) |
|---|---|
| Conductors | 4 × UTP, solid bare copper |
| Gauge | 24 AWG (0.51 mm) |
| Bandwidth | 350 MHz |
| Outer Jacket | CMR PVC, color-coded (multiple hues) |
| Length | 1000 ft (305 m) continuous spool |
| Operating Temp | -20 °C – +75 °C |
| Certifications | cETLus, RoHS 3, UL 444, ISO/IEC 11801 |
| Part Number | CT-C5E-24-SOLID-1000-CMR |
Build networks that never quit. Tap Add to Cart or dial 800-555-CABLE for project pricing and same-day shipping.
4 Reasons Pros Buy Direct from Conversions Tech
Headquartered in business-friendly Wyoming, we design, test, and ship every product from inside the United States—delivering genuine “Made-for-America” quality without the big-box markup.
Our in-house team owns every CAD file, mold, and QA station behind our weatherproof boxes, conduit bodies, and power inverters. Vertical control means tighter tolerances, UL-listed safety, and up to 30 % lower cost than private-label imports.
Thousands of SKUs sit ready to go. Orders placed by 2 p.m. ship the same day, keeping contractors, OEMs, and distributors on schedule.
Need a torque spec or an OEM quote at dawn? You’ll speak directly with the Conversions Tech engineering desk—not a script reader—for instant answers, custom kitting, and private-label options.
Bottom line: For rugged, code-compliant electrical solutions shipped fast from a trusted U.S. source, choose Conversions Tech and build it right the first time.
