Copper Short Barrel One Hole Compression Lugs 2 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98013A
Out of stock
Open here

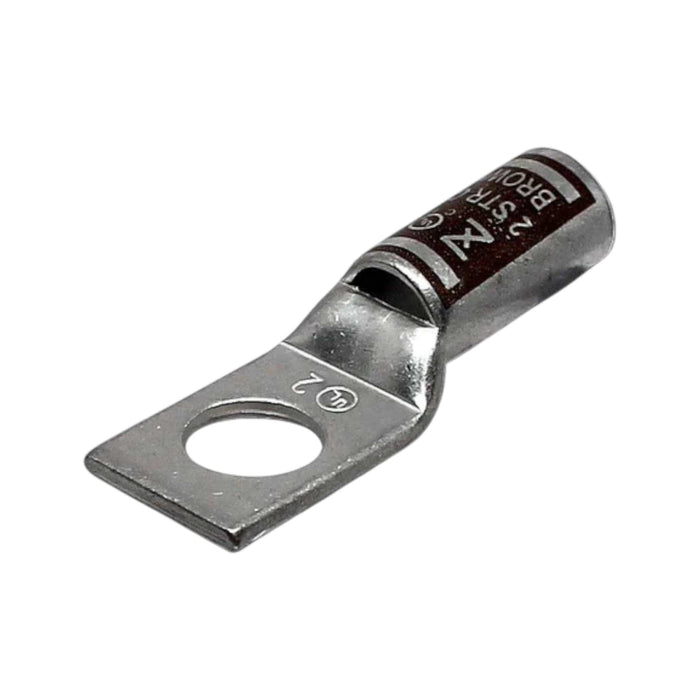

The Conversions Tech 1-Hole Copper Compression Lug is a reliable and durable solution for secure electrical connections. Designed for 2 AWG conductors and a 3/8-inch bolt size, it features a standard barrel, sight window, and a tin-plated copper construction for enhanced conductivity and corrosion resistance. The distinctive brown color code ensures easy identification, making this lug a high-performance choice for electrical installations that require both reliability and efficiency.
Key Features
- High-Quality Copper Construction: Provides excellent conductivity and ensures secure, reliable electrical connections for 2 AWG conductors.
- 3/8-Inch Bolt Size: Designed with a 3/8-inch bolt size for secure attachment to terminals or busbars, ensuring stability and reliable connections.
- Standard Barrel and Sight Window: The standard barrel ensures efficient crimping, while the sight window allows for easy inspection to confirm proper conductor insertion.
- Tin-Plated Copper: Offers superior corrosion resistance and enhanced conductivity, ensuring optimal performance in harsh environments.
- Distinctive Brown Color Code: Facilitates easy identification, simplifying the organization and speeding up installations in electrical systems.
- Reliable, High-Performance Connection: Ideal for electrical installations that require both durability and efficiency, ensuring long-lasting, secure performance in a variety of applications.
Technical Specifications
| Wire Size | 2 AWG |
| Stud Size | 3/8" Stud |
| Color | Brown |
| Overall Length (L) | 46.0mm (1.81") |
| Barrel Length (L1) | 21.1mm (0.81") |
| Barrel Diameter (D) | 15.9mm (0.63") |
| Barrel Inner Diameter (D1) | 10.8mm (0.42") |
| Barrel Outer Diameter (D2) | 8.5mm (0.35") |
| Flange Length (B) | 20.3mm (0.33") |
| Flange Width (E) | 10.4mm (0.40") |
| Thickness (F) | 2.2mm (0.08") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 170A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
