1-Hole Compression Lug 1000 MCM 5/8" Stud | 35 kV, Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98043B
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

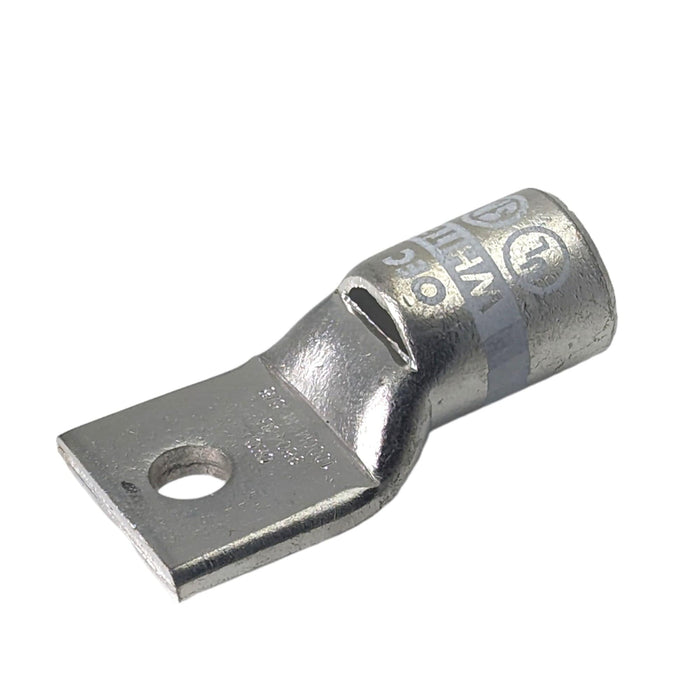

The Conversions Tech one-hole compression lug is a tin-plated copper terminal designed for high-current power distribution and industrial electrical systems. Engineered for 1000 MCM conductors with a 5/8-inch stud hole, this short barrel lug provides secure terminations in switchgear, transformers, panelboards, and utility infrastructure where reliable conductivity and visual inspection capability are required.
Specifications
- Material: Seamless electro tin-plated copper
- Conductor size: 1000 MCM
- Stud size: 5/8 inch
- Voltage rating: 35 kV
- Barrel type: Standard
- Barrel length: 1.625 inches
- Inner diameter: 1.172 inches
- Outer diameter: 1.5 inches
- Overall length: 4.087 inches
- Pad size: 1.437 inches L x 2.169 inches W x 0.328 inches thick
- Pad holes: 1
- Cable entry type: Chamfered entry
- Die index: I-125
- Color code: White
- Sight window: Yes
Cross-Reference
Equivalent form factor to Panduit, Burndy, and Ilsco one-hole compression lugs for 1000 MCM applications. Compatible with standard industry tooling and installation practices at competitive distributor pricing.
FAQ
What crimping tool die do I need for this lug?
Use die index I-125. Confirm proper die selection with your crimping tool manufacturer to ensure full compression and UL compliance.
Is this lug rated for medium voltage applications?
Yes, the 35 kV voltage rating suits medium voltage terminations. Verify application requirements against local codes and system specifications.
How does the sight window help during installation?
The sight window allows visual confirmation of conductor insertion depth and proper positioning before crimping, reducing rework and ensuring reliable termination.
