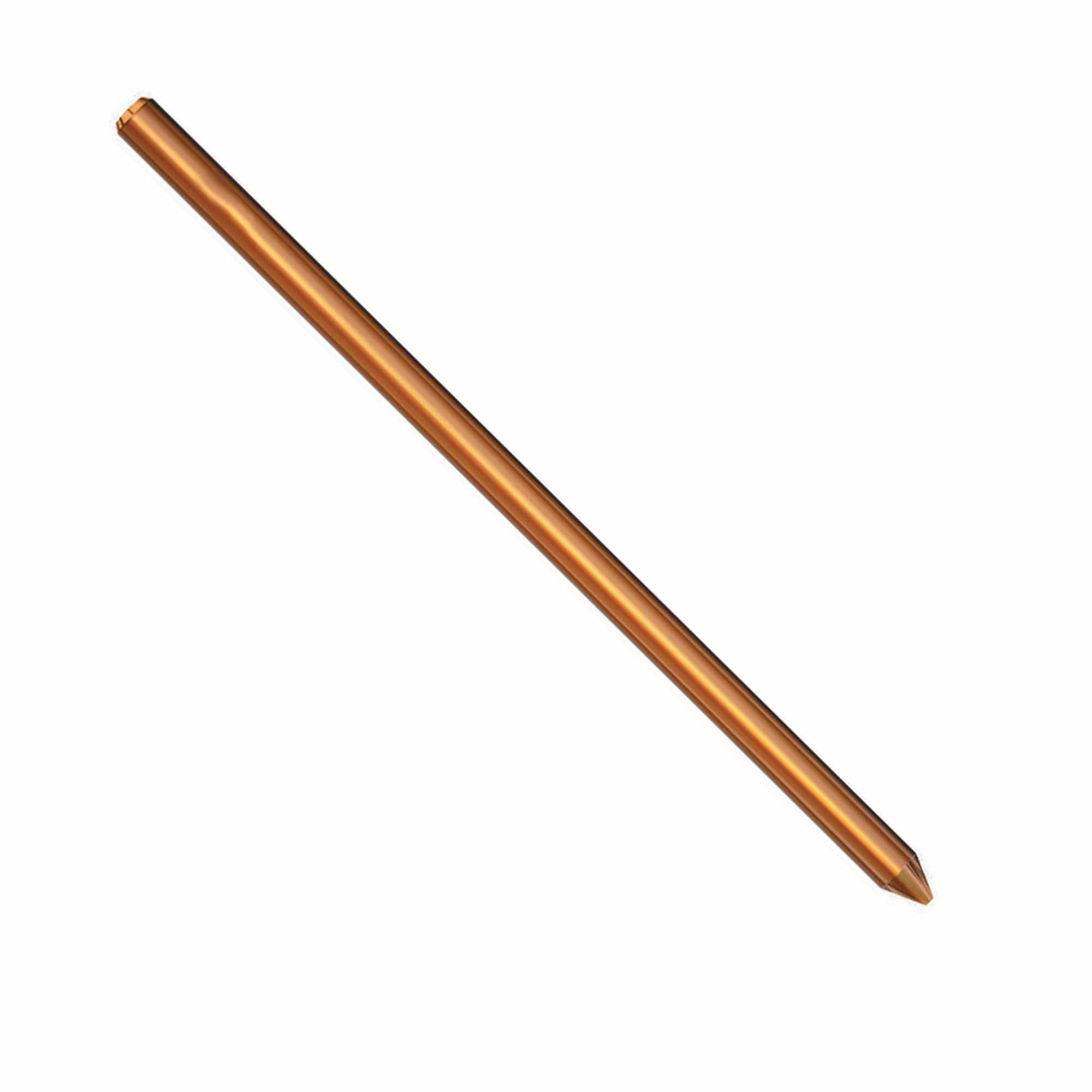

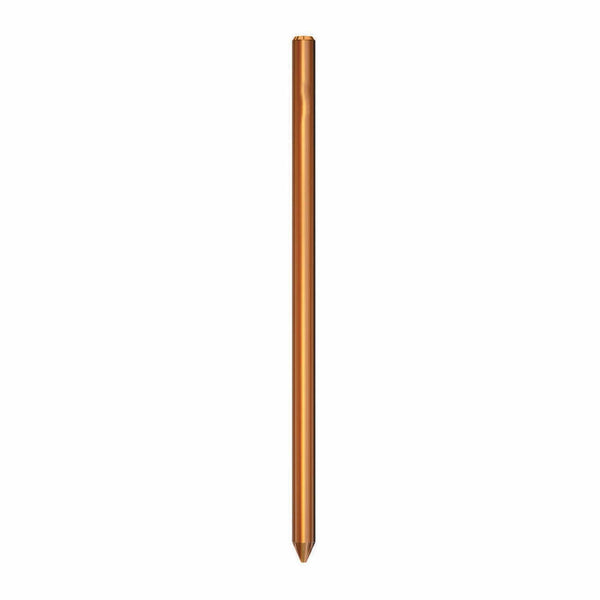

Copper Bonded Steel Grounding Rod 3/4 X 10 FT
Shipping calculated at checkout
SKU: 22026
Out of stock
UL-Listed Copper-Bonded Steel Grounding Rod
Conversions Tech next-gen grounding electrode fuses a high-tensile steel core with a 99.9 % electrolytic copper sheath, achieving copper-level conductivity and steel-grade durability. Engineered for telecom towers, substations, industrial plants and commercial builds seeking ultra-low (< 5 Ω) earth resistance and bullet-proof code compliance.
Key Technical Benefits
- Copper-Bonded Integrity — ≥0.010 in electrolytic copper molecularly bonded to a high-strength steel core for long-life conductivity and impact resistance.
- Ultra-Low Ground Resistance — Uniform copper sheath speeds fault-current & lightning dissipation, protecting sensitive power conversion, SCADA and RF equipment.
- Threaded Drive & Coupling End — Precision 5/8-11 threads accept industry-standard driving studs & couplers, preventing rod back-out in frost-heave or seismic zones.
- Corrosion-Proof Service Life — Meets ASTM B843, IEEE Std 80 & IEC 62561-2 for 30 + years in acidic, alkaline, saline or marsh soil.
- UL 467 Certified — Guaranteed code compliance across all U.S. jurisdictions; streamlines inspections.
- Economical Performance — Premium earthing at competitive pricing—ideal for bulk infrastructure rollouts.
Product Specifications
| Parameter | Value |
|---|---|
| Diameter Options | ½ in · ⅝ in · ¾ in · 1 in |
| Standard Lengths | 8 ft, 10 ft, 20 ft (custom on request) |
| Copper Thickness | ≥ 0.010 in (254 µm) |
| Core Material | High-tensile low-carbon steel |
| Surface Finish | Electrolytic copper bonded |
| Thread Specification | 5/8-11 UNC (M16) on drive end |
| Certifications | UL 467 · NEC 250 · IEEE Std 837 |
Ideal Applications
Engineered for mission-critical earthing:
- Telecommunication & 5G towers
- Power generation plants & substations
- Industrial manufacturing facilities
- Commercial & high-rise electrical grids
Cross-Reference: 22026
| Brand | Series / Part | Notes |
|---|---|---|
| nVent ERICO | copper-bonded rod class* | match by 3/4 in x 10 ft, UL 467 |
| Galvan Industries | copper-bonded rod class* | same 10-mil copper bond class |
| Harger | CBS rod class* | match by diameter and length |
*Cross by rod diameter/length - UL 467 copper-bonded steel, 10-mil min plating. Trademarks belong to their owners.
Drive with standard rod driver; pair with our UL 467 rod clamps or irreversible compression connectors for buried connections per NEC 250.64(C).
