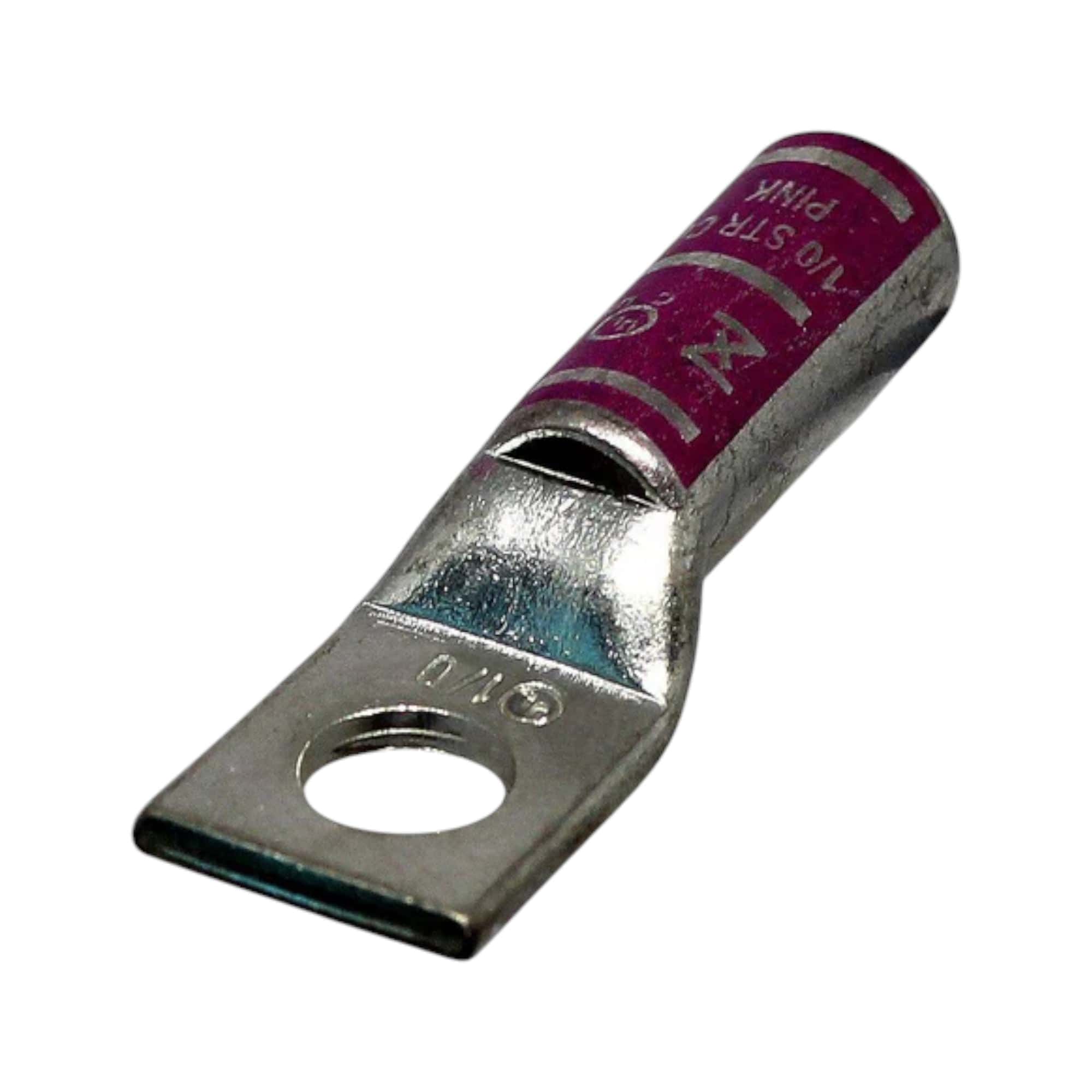

Copper Long Barrel One Hole Compression Lug 1/0 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98069A
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech durable copper compression lug designed to provide secure electrical connections. Featuring a conductor size of 1/0, a 5/16-inch bolt size, and a long barrel with tin plating, this lug ensures reliable performance even in demanding conditions. The pink color code makes for easy identification, streamlining efficient installations without the need for a sight window. This combination of durability, performance, and convenience makes the 98069A a top choice for professionals seeking high-quality, hassle-free connectors.
Key Features
- Durable Copper Construction: Made from high-quality copper for superior electrical conductivity and reliability.
- 1/0 Conductor Size: Designed to accommodate 1/0 gauge wires, ensuring compatibility with larger electrical systems.
- 5/16 Inch Bolt Size: Features a 5/16 inch bolt hole for a secure and stable connection to terminals.
- Long Barrel Design: The long barrel provides a larger crimping surface for a stronger and more reliable connection.
- Tin Plating: Coated with tin plating to prevent corrosion and ensure long-lasting performance in various environments.
- Pink Color Code: The pink color code makes it easy to identify the lug during installations, improving efficiency.
-
No Sight Window: This lug does not feature a sight window, making it suitable for applications where visual inspection is not necessary.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Pink |
| Overall Length | 2.731 Inch |
| Barrel Length | 1.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1/0 AWG |
| Stud Size | 5/16 Inch |
| Die Index | I-42 |
| Pad Size | 0.875 Inch L X 0.738 Inch W X 0.125 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| Insulation ID/OD | 0.39 Inch ID X 0.515 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
