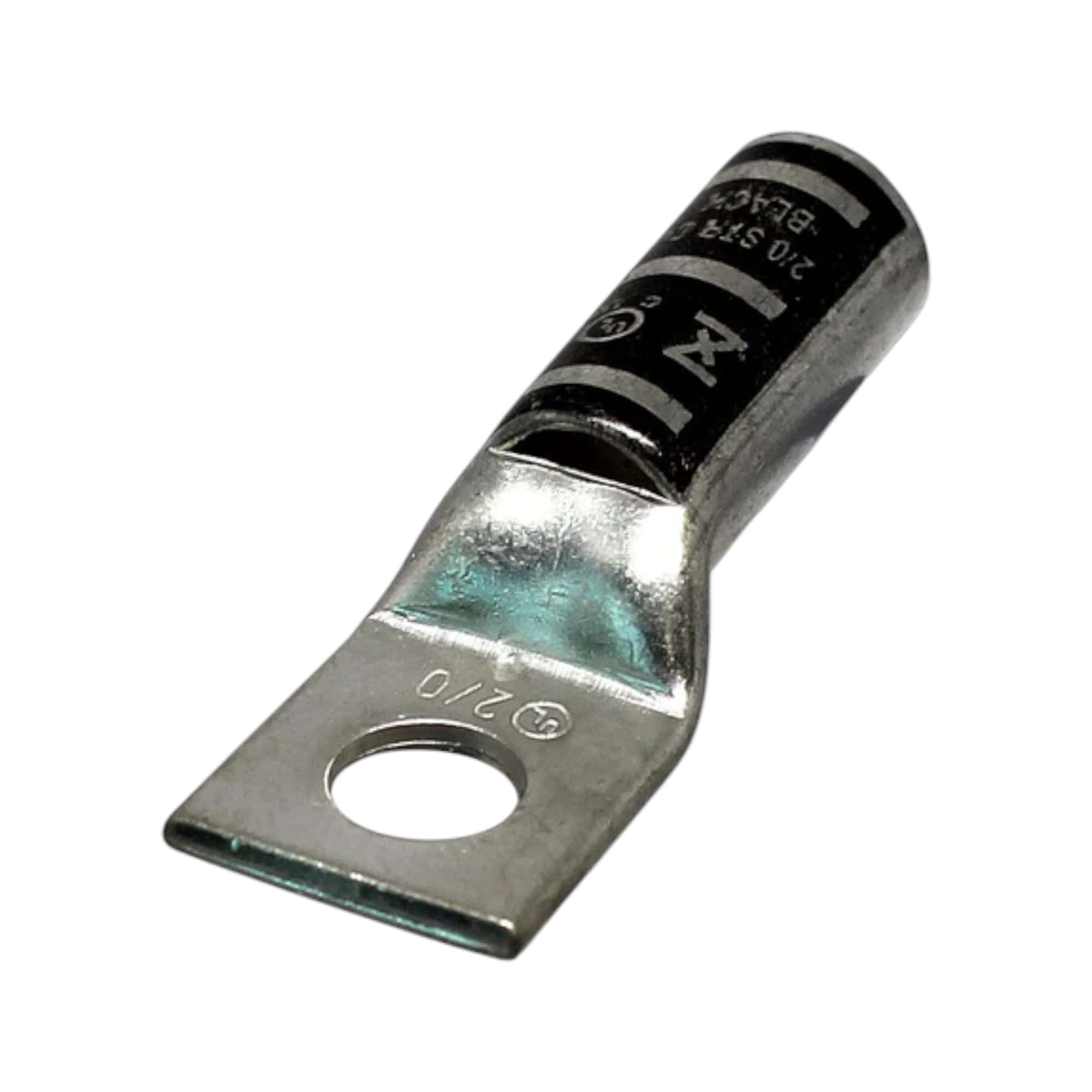

2/0 AWG Copper Compression Lug, 1-Hole, Long Barrel, 3/8" Stud | CT-LB2-0-38
Shipping calculated at checkout
SKU: CT-LB2-0-38
Only 21 in stock
Goes with
At a glance: Long barrel one-hole copper compression lug, 2/0 AWG conductor, 3/8" bolt hole. Seamless electrolytic copper tube, extended two-crimp barrel, gauge and die index stamped. 35kV class construction.
Specifications
| Part number | CT-LB2-0-38 |
|---|---|
| Conductor | 2/0 AWG copper, Class B stranded through M (flex-rated) |
| Barrel | Long |
| Stud | 3/8 in, 1 hole |
| Overall length | 2.28 in (B) |
| Die | Index 45, Black, two crimps |
| Material | Electrolytic copper, electro tin plated |
| Rating | UL 486A, cULus, 90 C, 35 kV, 175 A at 75 C |
| Color code | Black |
| Category | Electrical connector |
| Stud Size | 3/8" |
| Weight | 0.3 lb (est.) |
Cross reference
| Our part | Burndy | Panduit | NSI Industries |
|---|---|---|---|
| CT-LB2-0-38 | YA26 | LCB2/0-38-X | L2038 |
Matched by size and type. Trademarks belong to their owners.
