Long Barrel Compression Lug 3 AWG 1/4" Stud | 35kV, Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98066D
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

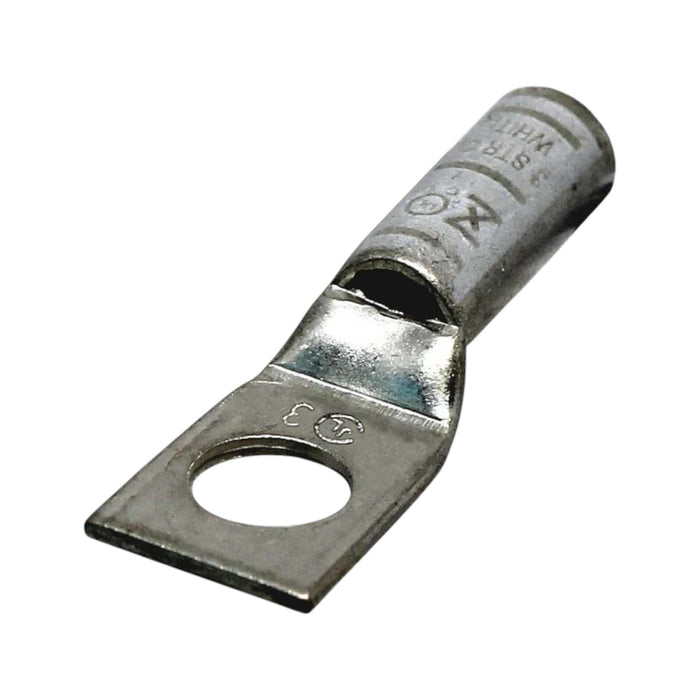

Long barrel one-hole compression lug for terminating 3 AWG copper conductors to 1/4-inch studs. Engineered for medium-voltage applications up to 35 kV with extended barrel geometry for enhanced pull-out strength and full wire insertion. Tin-plated seamless copper construction resists corrosion in industrial and utility environments. White color code per industry standard for conductor size identification.
Specifications
- Conductor Size: 3 AWG
- Stud Size: 1/4 Inch
- Material: Seamless Electro Tin Plated Copper
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Overall Length: 3.189 Inch
- Barrel Length: 1.5 Inch
- Inner Diameter: 0.484 Inch
- Outer Diameter: 0.609 Inch
- Pad Size: 1.25 Inch L x 0.885 Inch W x 0.125 Inch Thk
- Pad Holes: 1
- Cable Entry: Chamfered Type
- Die Index: I-29
- Color Code: White
Cross-Reference
Equivalent form factor to long-barrel compression lugs from major manufacturers. Compatible with industry-standard tooling and installation practices.
FAQ
What crimping tool is required for this lug?
Use die index I-29 with compatible compression tooling. Verify die alignment with the long barrel geometry to achieve full compression across the 1.5-inch barrel length.
Is this lug rated for medium-voltage applications?
Yes. The 35 kV voltage rating supports medium-voltage terminations when installed per applicable codes and standards.
Why specify a long barrel design?
The 1.5-inch barrel length increases contact surface area and pull-out strength compared to standard barrel lugs, providing more reliable termination for 3 AWG conductors under mechanical load or thermal cycling.
