Copper Long Barrel One Hole Compression Lug 3 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98066G
Out of stock
Open here

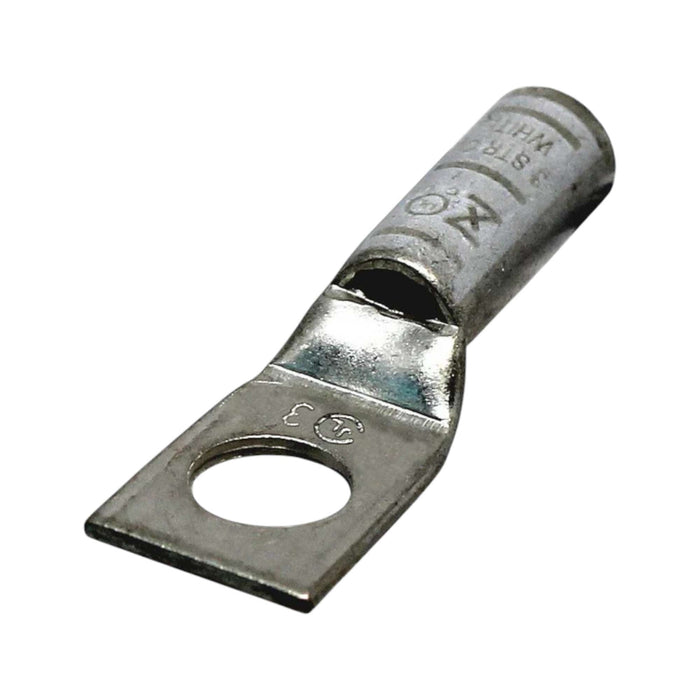

The Conversions Tech is a robust copper compression lug engineered for secure electrical connections. Featuring a conductor size of 3 AWG, a 1/2-inch bolt size, and a long barrel, this tin-plated lug guarantees dependable performance in various electrical setups. The white color code ensures easy identification, streamlining efficient installations without the need for a sight window. This high-quality, durable connector is an ideal solution for professionals seeking reliability and efficiency in their electrical systems.
Key Features
- Robust Copper Construction: Made from high-quality copper for superior electrical conductivity and long-lasting reliability.
- 3 AWG Conductor Size: Designed for 3 AWG wires, making it ideal for medium-sized electrical systems.
- 1/2 Inch Bolt Size: Features a 1/2-inch bolt hole, ensuring a stable and secure connection to terminals.
- Long Barrel Design: The long barrel provides enhanced pull-out strength and ensures a secure crimped connection.
- Tin Plating: Coated with tin plating to protect against corrosion and improve the lug’s performance over time.
- White Color Code: The white color code makes it easy to identify the lug during installations, improving efficiency.
-
No Sight Window: Designed without a sight window, making it suitable for applications where visual inspection isn’t required.
Technical Specifications
| Material | Seamless Electro Tin Plated Copper |
|---|---|
| Color | White |
| Overall Length | 3.189 Inch |
| Barrel Length | 1.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-50 |
| Pad Size | 1.25 Inch L X 0.885 Inch W X 0.125 Inch Thk |
| Pad Holes | 1 |
| Inner Diameter | 0.484 Inch |
| Outer Diameter | 0.609 Inch |
| Cable Entry | Chamfered Type |
