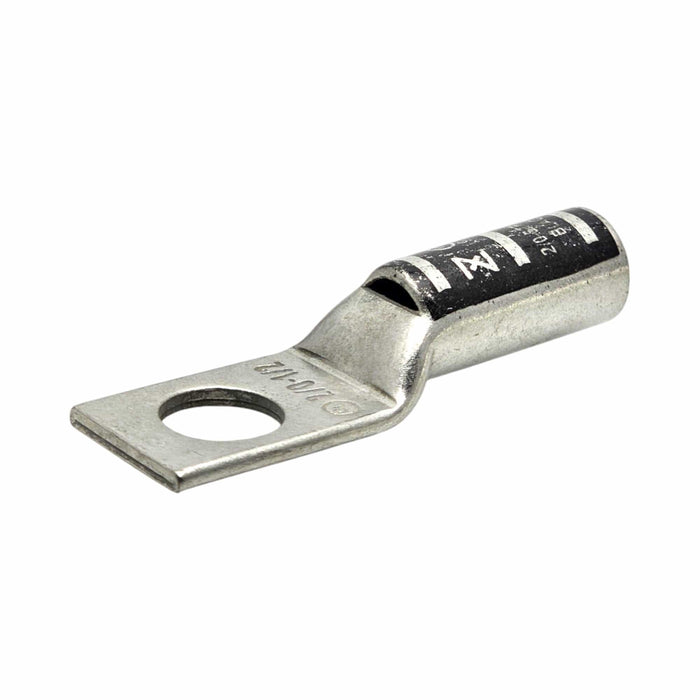

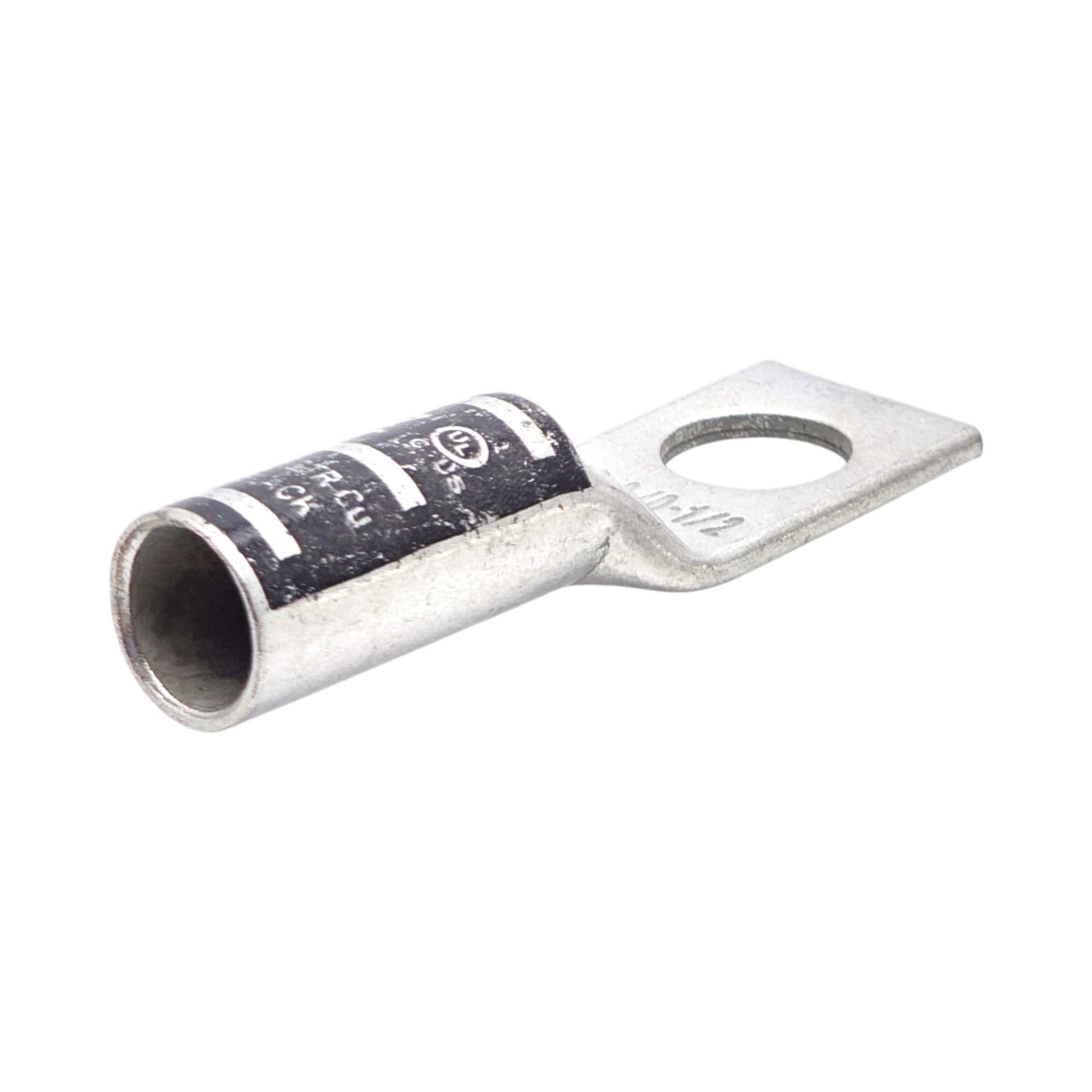

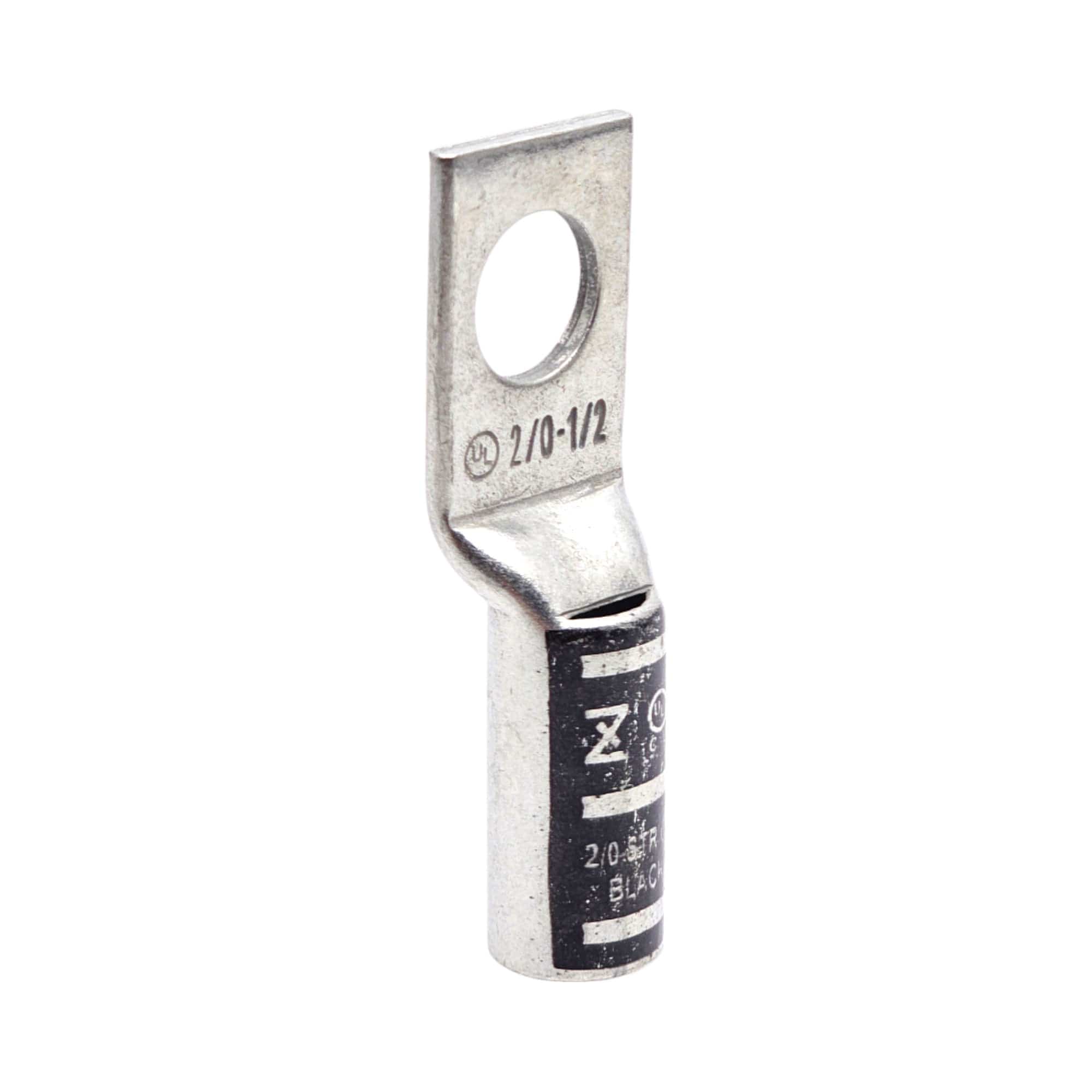

Long Barrel Compression Lug 2/0 AWG 1/2" Bolt | 90°C Copper
Shipping calculated at checkout
SKU: 210-09858
560 in stock
Open here
The Conversions Tech long barrel compression lug terminates 2/0 AWG copper conductors in power distribution panels, industrial machinery, construction projects, and renewable energy systems. The seamless electro-tin plated copper construction provides conductivity and corrosion resistance for high-current terminations.
Specifications
- Material: Seamless electro-tin plated copper
- Conductor size: 2/0 AWG
- Stud size: 1/2 inch
- Barrel type: Long barrel
- Barrel length: 1.5 inches
- Overall length: 2.771 inches
- Pad holes: 1
- Pad dimensions: 0.875 in (L) × 0.811 in (W) × 0.125 in (Thk)
- Insulation ID/OD: 0.437 in (ID) × 0.562 in (OD)
- Barrel entry: Chamfered
- Color code: Black
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-45
Cross-Reference
Equivalent to long barrel one-hole compression lugs from major manufacturers. Used in same applications as Burndy, Panduit, and Ilsco 2/0 AWG long barrel lugs at lower cost.
FAQ
What crimping tool die index is required?
Use die index I-45 for proper crimp compression. Verify your crimping tool manufacturer supports this die index for 2/0 AWG long barrel lugs.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating matches standard 75°C and 90°C copper conductor ampacities per NEC Table 310.16 when installed in equipment rated 90°C.
Can this lug be used on compact stranded conductor?
Yes. The chamfered barrel entry accommodates compact stranded 2/0 AWG copper. Strip conductor to full 1.5 inch barrel depth for maximum contact surface and pull-out strength.
Specifications
| Part Number | 210-09858 |
| Category | Electrical connector |
| Weight | 0.35 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — One-Hole Long Barrel, 2/0 AWG, 1/2 Inch stud
CT P/N 210-09858 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA26 |
All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
