4/0 AWG Copper Compression Lug, 2-Hole, Long Barrel, 1/4 in. Stud, UL Listed | 210-98101

Sale price $3.61

Shipping calculated at checkout

🛡 Trade Pricing Program Contractors, wholesalers & distributors save 15–30% Apply — 60 seconds Sign In

SKU: 210-98101

840 in stock

Goes with

Shop with confidence

  • Same-day shipping on in-stock items · Ships from Oxnard, CA
  • UL / CSA listed products
  • Net 30-60 terms available
  • Engineering desk support
  • Ach Direct Debit
  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • USDC
  • Visa

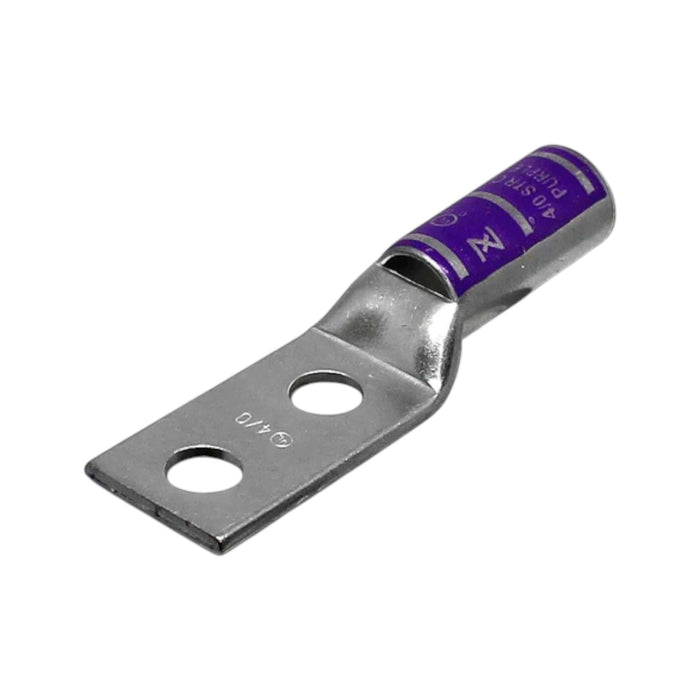

At a glance: Long-barrel two-hole (NEMA) compression lug for 4/0 AWG copper conductor on 1/4 in. studs, 1.75 in. hole spacing. Tin-plated seamless copper with purple color code. For power distribution, industrial equipment and utility applications requiring secure two-bolt termination. UL Listed.

Specifications

Part number 210-98101
Conductor 4/0 AWG copper, Class B (Code) stranded
Stud size 1/4 in
Pad 2-hole (NEMA), straight
Stud hole Ø0.28 in (7.1 mm)
Hole spacing 1.75 in (44.5 mm)
Barrel Long barrel, chamfered entry
Barrel length 1.42 in (36.0 mm)
Barrel OD 0.75 in (19.1 mm)
Tongue width 1.00 in (25.4 mm)
Tongue thickness 5.6 mm (0.22 in), reference
Strip length (min.) 1.65 in (42.0 mm)
Overall length 5.49 in (139.5 mm)
Material Electrolytic copper tubing, seamless
Finish Electro-tin plated
Color code Purple
Markings Die index and wire size embossed on each connector
Voltage rating 600 V; max circuit rating 35 kV
Temperature rating 90 °C
Certifications UL Listed (cULus), UL 486A-486B; CSA C22.2 No. 65
Weight 0.25 lb

Documents: Spec sheet (PDF) · Dimensional drawing (PDF) · CT catalogs. Dimensions are from the CT drawing.

Crimping: Install with a standard 12-ton compression tool and the die that matches the die index embossed on the lug (two crimps on long-barrel lugs). Matching dies · Die & tool chart

Cross reference

Our part Burndy Panduit NSI Industries
210-98101 YA282N LCC4/0-12-X L40N *

Matched by size and type. Trademarks belong to their owners. *Verify on datasheet.
