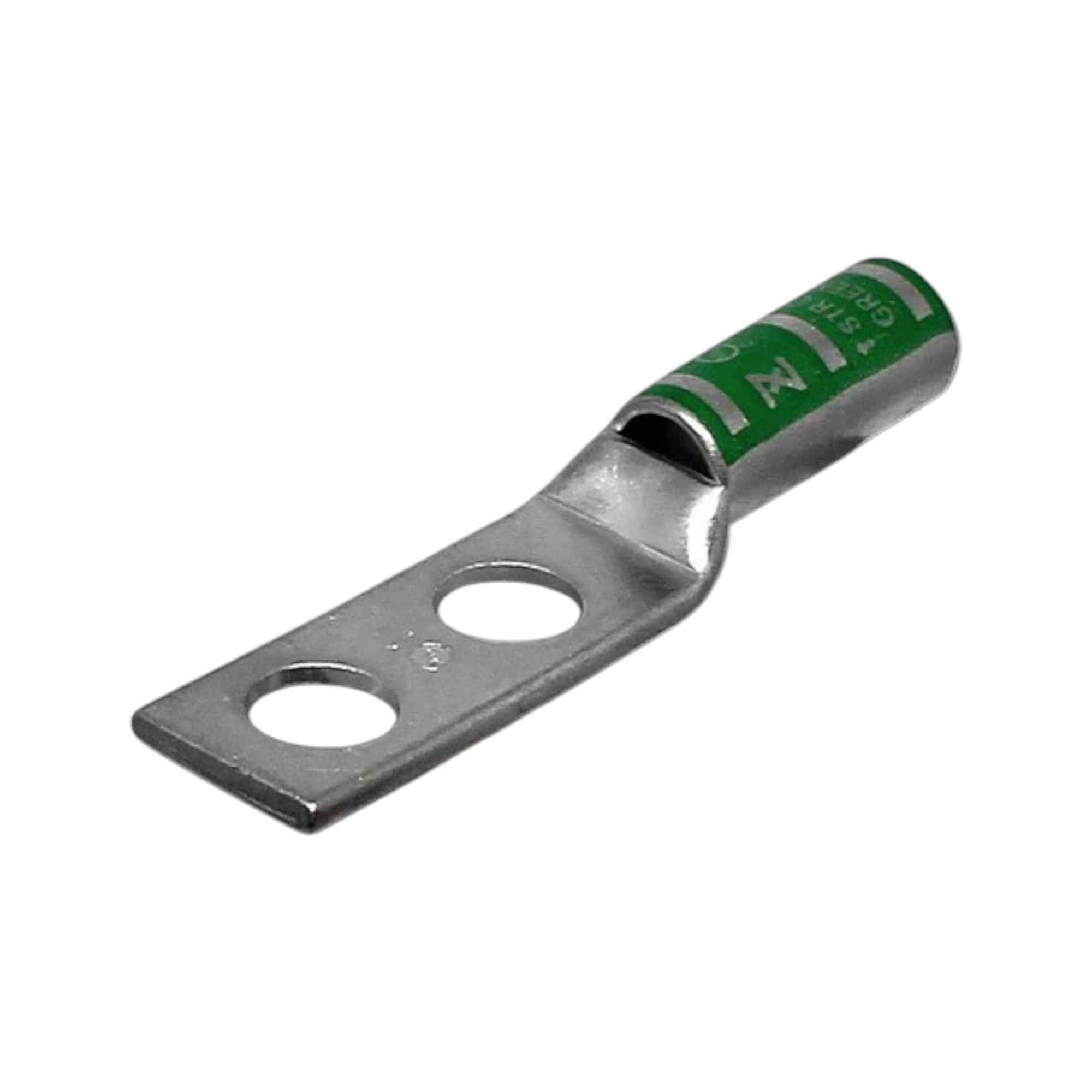

Long Barrel Two-Hole Compression Lug | 1 AWG, 5/16" Stud, 7/8" Hole Spacing
Shipping calculated at checkout
SKU: 210-98091B
1000 in stock
Open here
Two-hole long barrel compression lug for 1 AWG copper conductors. Used in power distribution, switchgear, and industrial panel applications where dual-bolt mounting provides mechanical stability and long barrel design maximizes contact surface for reliable termination. Tin-plated copper construction resists oxidation in standard indoor and outdoor electrical environments.
Specifications
- Conductor Size: 1 AWG
- Material: Seamless Electro-Tin Plated Copper
- Stud Size: 5/16 Inch
- Pad Holes: 2
- Pad Hole Spacing: 7/8 Inch
- Barrel Type: Long
- Barrel Length: 1.375 Inches
- Overall Length: 3.392 Inches
- Pad Size: 1.687 Inches (L) x 0.673 Inch (W) x 0.109 Inch (Thk)
- ID x OD: 0.359 Inch x 0.468 Inch
- Cable Entry Type: Chamfered Entry
- Die Index: I-37
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Color Code: Green
Cross-Reference
Equivalent to Burndy YAV-L, Ilsco CSLE, and Panduit LCDN two-hole long barrel compression lugs. Form factor matches standard industry dimensions for 1 AWG long barrel two-hole lugs at lower distributor cost.
FAQ
What die should I use for crimping this lug?
Use die index I-37 per the specification table. Verify proper die placement with your compression tool manufacturer to ensure full barrel compression.
Is this lug rated for wet locations?
The 35 kV voltage rating and 90°C temperature rating apply to standard installations. Environmental suitability depends on enclosure type and local code requirements; the tin-plated finish provides corrosion resistance for typical industrial atmospheres.
Why two holes instead of one?
Two-hole mounting prevents lug rotation under vibration or thermal cycling, distributing mechanical stress across two bolts. The 7/8-inch spacing fits standard busbar and equipment pad configurations.
Specifications
| Part Number | 210-98091B |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 1 AWG, 5/16 Inch stud
CT P/N 210-98091B is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA1C2N |
| Panduit | LCC1-12W-E |
| NSI Industries | L1N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
