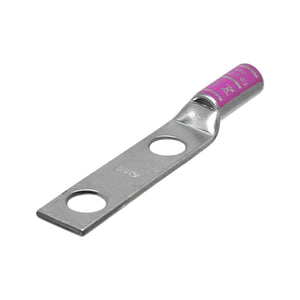

Two-Hole Long Barrel Compression Lug 1/0 AWG 5/16" Stud | 90°C
Shipping calculated at checkout
SKU: 210-98095B
990 in stock
Open here
Two-hole long barrel compression lug for terminating 1/0 AWG copper conductors. Electro-tin plated copper construction with chamfered cable entry for field installation on switchgear, transformers, panelboards, and industrial power distribution equipment. Pink color code provides instant conductor size identification. Rated 90°C continuous operation at 35 kV.
Specifications
- Material: Seamless electro-tin plated copper
- Conductor size: 1/0 AWG copper
- Stud size: 5/16 inch
- Pad holes: 2
- Pad hole spacing: 3/4 inch
- Barrel type: Long
- Barrel length: 1.5 inches
- Overall length: 3.793 inches
- Pad dimensions: 1.937" (L) × 0.738" (W) × 0.125" (Thk)
- Barrel ID × OD: 0.39" × 0.515"
- Cable entry: Chamfered
- Die index: I-42
- Temperature rating: 90°C
- Voltage rating: 35 kV
- Color code: Pink
Cross-Reference
Equivalent form factor to two-hole long barrel compression lugs from major manufacturers. Standard I-42 die index ensures compatibility with common compression tooling.
FAQ
What crimping die do I need for this lug?
Use die index I-42. Verify tool compatibility before installation.
Is this lug rated for the full ampacity of 1/0 AWG copper?
90°C temperature rating supports standard 1/0 AWG copper ampacity per NEC when installed per application requirements.
Why does the pad hole spacing differ from the feature description?
The specification table lists 3/4" pad hole spacing. Verify your application requirements against the published dimensional data.
Specifications
| Part Number | 210-98095B |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 1/0 AWG, 5/16 Inch stud
CT P/N 210-98095B is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Burndy (Hubbell) | YA252N |
| Panduit | LCC1/0-12-X |
| NSI Industries | L10N * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
