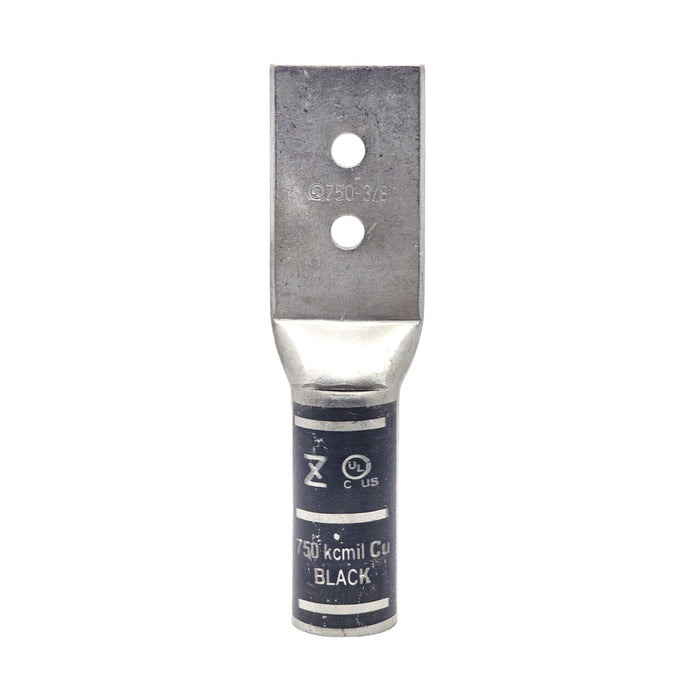

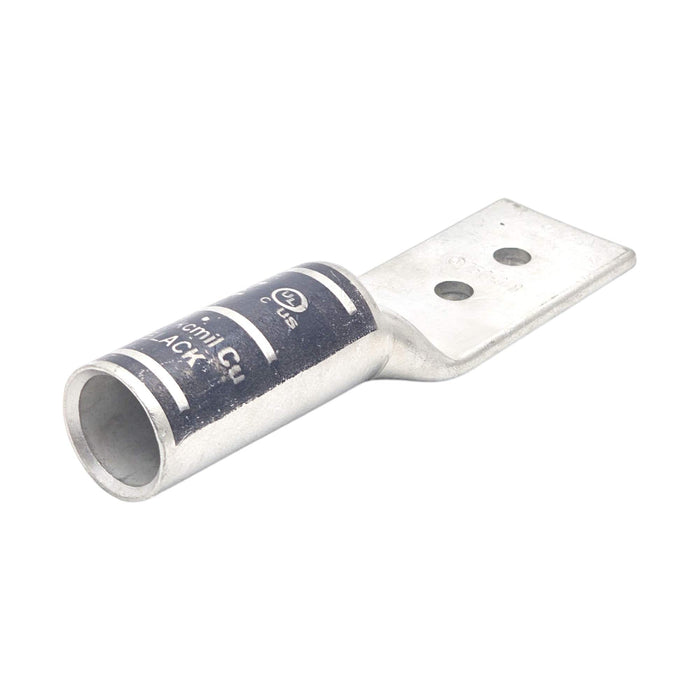

Copper Long Barrel Two Hole Compression Lugs 750 MCM 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98110A
195 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 2-Hole Compression Lug is a reliable electrical connector designed for superior conductivity. Built for 750 MCM conductors, it features a 2-hole configuration, a 3/8-inch bolt size, and a long barrel to ensure secure and efficient connections. The tin-plated finish enhances corrosion resistance and durability. While it lacks a sight window, the black color code provides a sleek, professional appearance, making this lug an excellent choice for applications that demand both performance and a clean, reliable installation.
Key Features
- Material: Constructed from seamless electro-tin plated copper, ensuring excellent conductivity and corrosion resistance for long-term reliability.
- Color: Black color code for easy identification and compliance with industry standards.
- Length and Barrel Size: Overall Length: 5.714 inches; Barrel Length: 2.875 inches. Long barrel design provides flexibility and accommodates various conductor sizes.
- Conductor Size and Stud Size: Conductor Size: 750 MCM; Stud Size: 3/8 inch. Suitable for connecting large conductors, ensuring efficient power transfer.
- Voltage Rating: Rated for a voltage of 35 kV, suitable for high-voltage applications.
- Pad Size and Hole Spacing: Pad Size: 1.937 inches L x 1.901 inches W x 0.282 inches Thk
- 2 Pad Holes with 1 inch Pad Hole Spacing: Providing a secure mounting option.
- Die Index: I-106 Die Index ensures compatibility with appropriate crimping tools for proper installation.
- Barrel Type: Chamfered entry on the barrel enhances ease of conductor insertion, streamlining the installation process.
- ID x OD: Inner Diameter (ID): 1.031 inches; Outer Diameter (OD): 1.313 inches, providing precise dimensions for secure connections.
- Temperature Rating: Rated for a temperature of 90°C, suitable for a range of operating conditions.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color Code | Black |
| Overall Length | 5.714 inches |
| Barrel Length | 2.875 inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 750 MCM |
| Stud Size | 3/8 inch |
| Die Index | I-106 |
| Pad Size | 1.937 inches L x 1.901 inches W x 0.282 inches Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 inch |
| Barrel Type | Long Barrel with Chamfered Entry |
| ID x OD | 1.031 inches ID x 1.313 inches OD |
| Temperature Rating | 90°C |
