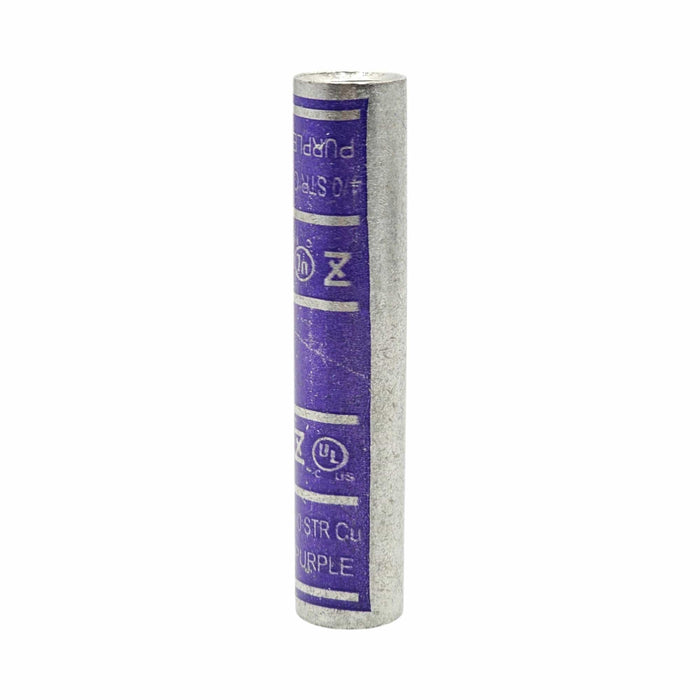

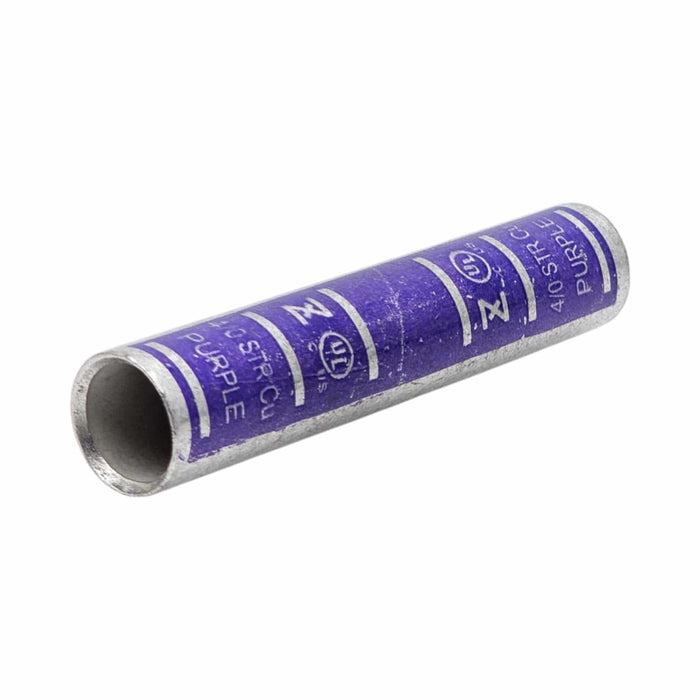

Copper Long-Length Compression Splice — 4/0 AWG (≈212 MCM) | Tin-Plated | Conversions Tech
The Conversions Tech Copper Long-Length Compression Splice is a rugged, high-conductivity connector engineered for 4/0 AWG (≈212 MCM) copper conductors. Designed for feeders, switchgear, and industrial power distribution, its seamless, tin-plated copper barrel with a centered wire stop ensures low resistance, multi-crimp reliability, and long-term mechanical strength. This professional-grade splice is built to maintain performance in demanding electrical environments.
Rated for up to 35 kV and 90°C, this splice is UL Listed and RoHS compliant, providing unmatched safety and compliance across industrial and utility-grade installations.
Key Features
- Long-Length Barrel: Provides extra crimping surface for maximum pull-out strength and superior heat dissipation.
- Seamless Copper Tube: Smooth internal diameter with chamfered entry ensures consistent wire insertion and crimping.
- Tin-Plated Finish: Offers corrosion resistance and enhanced conductivity for both indoor and outdoor use.
- Purple Color Code: Simplifies gauge identification during field installations.
- High Voltage & Temperature Rating: Supports up to 35 kV and 90°C operating conditions when properly installed.
- Certified Quality: Fully UL Listed and RoHS Compliant for global electrical standards.
Technical Specifications
| Conductor | 4/0 AWG copper, stranded (Cu only) |
| Connector Type | Inline butt splice, long-length barrel with center stop |
| Material / Finish | Seamless copper, electro-tin plated |
| Overall Length | 3.000 in |
| Inner Diameter | 0.546 in |
| Outer Diameter | 0.687 in |
| Voltage / Temperature | 35 kV max (proper installation) / 90°C |
| Color Code | Purple |
| Certifications | UL Listed, RoHS Compliant |
| Brand | Conversions Tech |
| SKU / MPN | 212-5040 |
Typical Applications
- Panelboards & Switchboards: Secure and efficient terminations for high-current feeders and switchgear.
- Industrial Control Panels: Designed for MCCs, wireways, and power bus applications.
- Renewable & Backup Power Systems: Suitable for solar PV, energy storage, UPS, and telecom DC systems.
- Utility Power Distribution: Provides reliable copper-to-copper inline splicing with high current capacity.
Install Best Practices
- Strip conductor insulation to the correct length and seat wire fully against the center stop.
- Crimp from the center outward using the die chart provided by the crimp tool manufacturer.
- Avoid overlapping crimps to maintain optimal electrical and mechanical performance.
- Finish with adhesive-lined heat shrink or an approved insulating wrap to meet code requirements.
What’s in the Box
- (1) Copper Long-Length Compression Splice — 4/0 AWG
Frequently Asked Questions (FAQs)
1. What type of conductor is this splice designed for?
This splice is specifically engineered for stranded copper conductors (Cu only).
2. Can it be used outdoors?
Yes, the tin-plated finish offers excellent corrosion resistance, making it suitable for both indoor and outdoor use.
3. Does it meet UL and RoHS standards?
Yes, it is fully UL Listed and RoHS compliant for electrical safety and environmental protection.
4. What is the recommended operating voltage?
It is rated for up to 35 kV with proper installation using approved tooling and insulation methods.
5. What is the correct installation method?
Crimp using the die recommended by the tool manufacturer, working outward from the center stop, and finish with insulation per local electrical codes.
