Copper Short Barrel One Hole Compression Lugs 1 AWG 3/8 -inch Bolt Size
Shipping calculated at checkout
SKU: 210-98016
Only 1 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

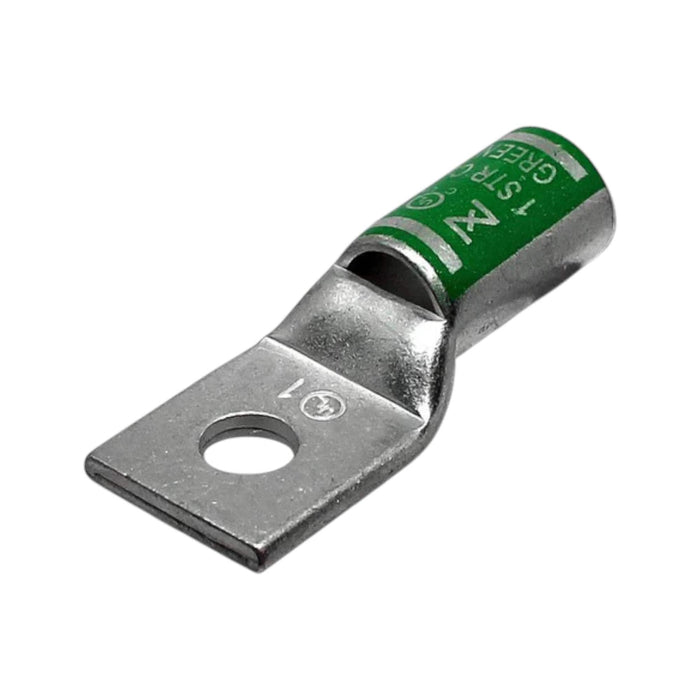

Conversions Tech 1-Hole Copper Compression Lug - 1 AWG, 3/8" Stud
The Conversions Tech 1-Hole Copper Compression Lug is a robust and reliable solution for establishing secure electrical connections. Designed for a 1 AWG conductor and featuring a 3/8-inch bolt size, this lug ensures a solid and dependable connection across diverse applications. Its standard barrel design, complete with a chamfered entry and sight window, facilitates easy installation and inspection. Crafted from electro-tin-plated copper, it delivers excellent conductivity and resists corrosion, while the green color code enhances identification in complex electrical setups, ensuring both performance and convenience.
Key Features of the 1 AWG Copper Compression Lug
- High-Quality Copper Build: Offers superior conductivity and durability for consistent, secure electrical connections.
- 1 AWG Compatibility: Engineered for 1 AWG conductors, providing a stable and robust connection for various electrical systems.
- 3/8-Inch Bolt Size: Equipped with a 3/8-inch bolt size for secure fastening to terminals or busbars.
- Standard Barrel with Chamfered Entry: Simplifies conductor insertion for a streamlined and reliable connection process.
- Inspection Sight Window: Enables quick visual verification of conductor placement, ensuring a dependable connection.
- Electro-Tin Plating: Enhances conductivity and provides excellent resistance to corrosion for long-term performance.
- Green Color Coding: Supports easy phase identification, improving efficiency and organization during installation.
- Versatile Application: Delivers dependable performance in residential, commercial, and industrial electrical installations.
Technical Specifications
| Conductor Size | 1 AWG |
| Bolt Size | 3/8" Stud |
| Color Code | Green |
| Overall Length (L) | 46.0mm (1.80") |
| Barrel Length (L1) | 21.1mm (0.80") |
| Outer Diameter (D) | 16.8mm (0.66") |
| Inner Diameter (D1) | 11.7mm (0.46") |
| Bolt Hole Diameter (D2) | 9.1mm (0.35") |
| Tongue Width (B) | 20.3mm (0.80") |
| Bolt Hole Spacing (E) | 10.4mm (0.40") |
| Wall Thickness (F) | 2.5mm (0.10") |
| Material | Electro-Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Ampacity | 130 Amps |
| UL Listed | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
