Copper Short Barrel One Hole Compression Lugs 250 MCM 5/8-inch Bolt Size

Sale price $2.77

Shipping calculated at checkout

SKU: 210-09805

1422 in stock

🖨️ Print Spec Sheet

Shop with confidence

  • Fast shipping
  • Easy exchanges
  • Trusted reviews
  • Eco materials
  • Price guarantee
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Venmo
  • Visa

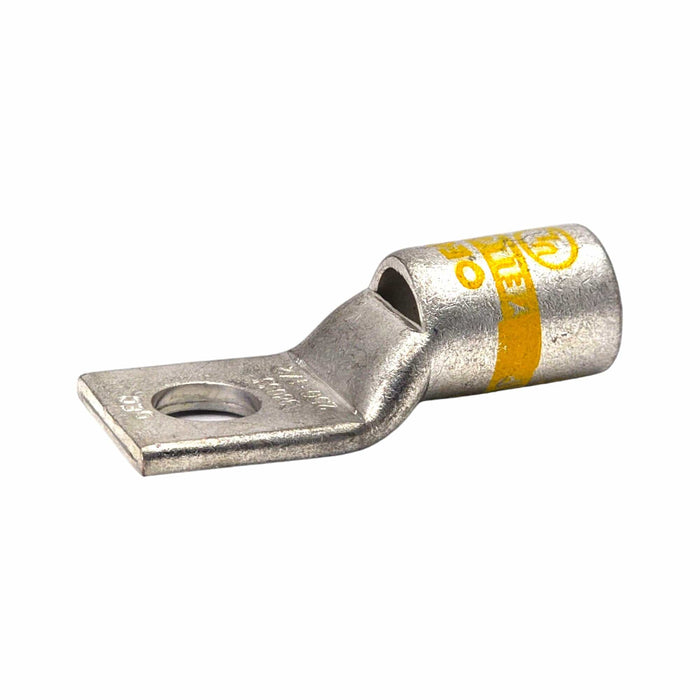

The Conversions Tech Copper Short Barrel One Hole Compression Lugs are designed for secure connections with 250 MCM copper conductors. Made from high-quality copper, they provide excellent conductivity and corrosion resistance. The short barrel design ensures a strong and compact connection, ideal for tight spaces, while the one-hole configuration securely attaches the conductor. With a 5/8-inch bolt size, these lugs are compatible with standard bolts, offering ease of installation. They are perfect for use with compression tools, ensuring a durable and reliable crimp for industrial and commercial applications.

Key Features

  • High-Quality Copper Construction: Ensures excellent electrical conductivity, low resistance, and superior corrosion resistance for long-lasting performance.
  • 250 MCM Conductor Size: Designed specifically for large copper conductors, providing secure and efficient electrical connections in high-current applications.
  • 5/8-Inch Bolt Size: Allows for a stable and secure attachment, ensuring a firm mechanical connection under heavy electrical loads.
  • Short Barrel Design: Ideal for tight spaces, this design simplifies installation while maintaining optimal electrical performance.
  • One-Hole Configuration: Ensures a secure and reliable connection with a single, firm attachment point for efficient power transfer.
  • Compression Tool Compatibility: Suitable for use with compression tools, providing a durable, secure crimp that ensures high-quality and long-lasting electrical connections.
  • Durability and Reliability: Perfect for industrial, commercial, and high-demand applications, offering dependable performance in demanding environments.

Technical Specifications

Material Electro Tin Plated Copper
Color Yellow
Overall Length 2.67 inches
Barrel Length 1.06 inches
Conductor Size 250 MCM Stranded
Stud Size 5/8 inch
Voltage Rating 35 Kilovolts
Die Index 16
Pad Size 1.11 inches width x 0.16 inches thickness
Number of Pad Holes 1
Barrel Type Standard, straight, non-insulated
Cable Entry Type Chamfered, beveled entry
Wire Strip Length 1.125 inch
Temperature Rating 90°C
