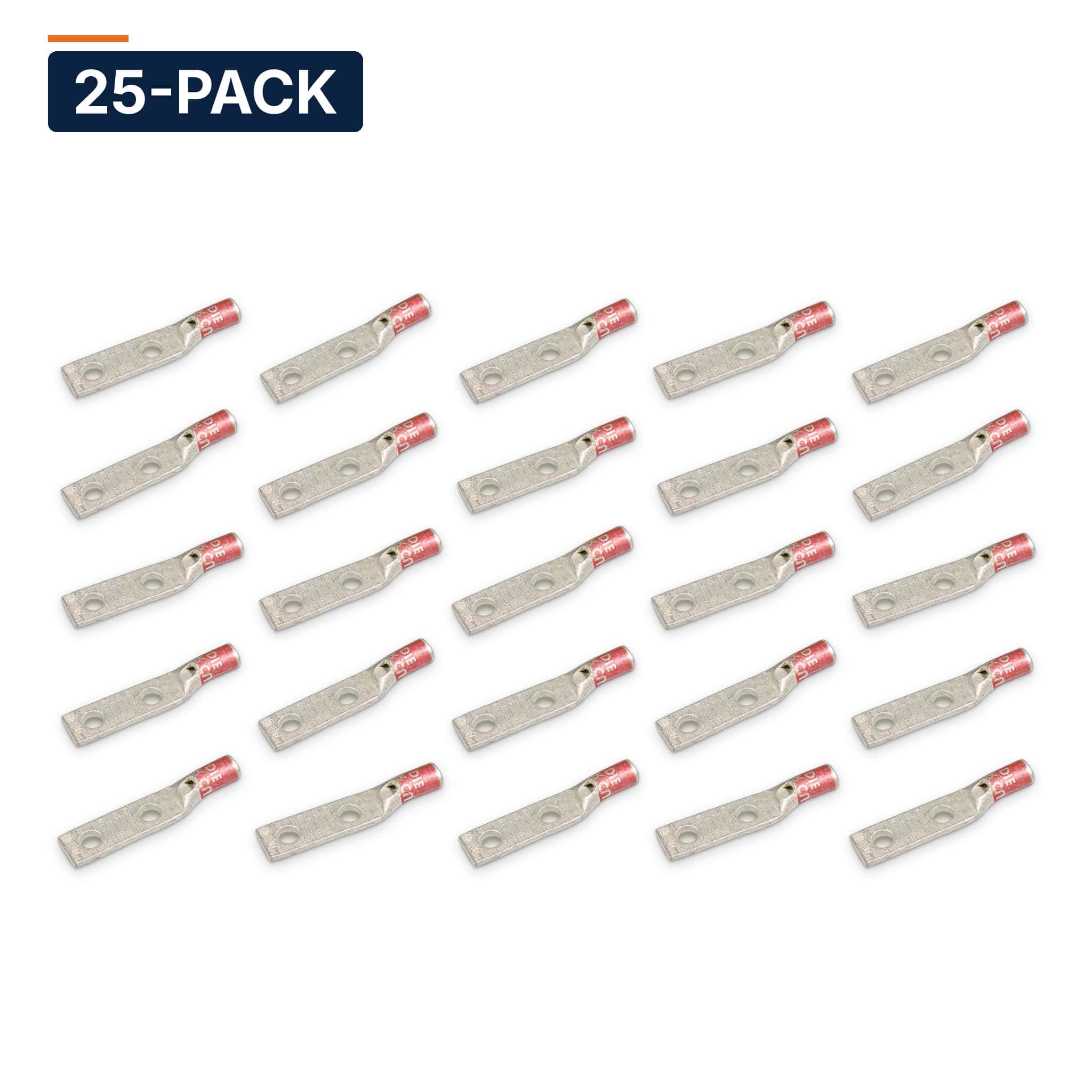

2-Hole Compression Lug 8 AWG 3/8" Stud | 50A, I-21 Die
Shipping calculated at checkout
SKU: 210-09909
1000 in stock
Open here
The Conversions Tech two-hole compression lug is engineered for 8 AWG conductor termination in industrial and commercial electrical systems. Designed for dual-bolt mounting with 3/8-inch studs and 5/8-inch hole spacing, this short-barrel lug provides mechanical redundancy for critical connections in switchgear, panelboards, and power distribution equipment. The tin-plated copper construction delivers corrosion resistance for extended service life in standard indoor environments.
Specifications
- Conductor Size: 8 AWG
- Stud Size: 3/8"
- Number of Pad Holes: 2
- Pad Hole Spacing: 5/8"
- Pad Dimensions: 1.437" L x 0.486" W x 0.093" Thk
- Overall Length: 2.132"
- Barrel Length: 0.5"
- Inner Diameter: 0.179"
- Outer Diameter: 0.272"
- Barrel Type: Standard
- Cable Entry: Chamfered
- Color Code: Red
- Material: Seamless electro tin-plated copper
- Die Index: I-21
- Voltage Rating: 35 kV
- Max Amp Rating: 50A
- Temperature Rating: 90°C
- Certifications: UL Recognized, CE Certified, RoHS Compliant
- Sight Window: Yes
Cross-Reference
Equivalent to standard two-hole compression lug form factors used in industrial termination applications. Compatible with tooling and installation practices common to major electrical connector manufacturers.
FAQ
What crimping tool die is required for this lug?
This lug requires an I-21 die index for proper compression crimping. Verify your crimping tool manufacturer's die chart to confirm compatibility.
Why does this lug have two holes instead of one?
Two-hole lugs provide redundant mechanical fastening and improved resistance to loosening from vibration or thermal cycling. The 5/8-inch spacing matches standard busbar and equipment mounting patterns.
Specifications
| Part Number | 210-09909 |
| Category | Electrical connector |
| Weight | 0.12 lb (est.) |
| HS Code | 8536.90.4000 |
Direct Cross-Reference — Two-Hole NEMA (1.75″ centers), 8 AWG, 3/8-inch stud
CT P/N 210-09909 is a dimensional and electrical equivalent replacement for:
| Manufacturer | Part Number |
|---|---|
| Panduit | LCC8-12 * |
* Cross derived from manufacturer part-numbering pattern; verify against datasheet for critical applications. All trademarks are property of their respective owners and are used for compatibility identification only. Conversions Tech products meet the same UL 486A dimensional and electrical standards at distributor-direct pricing.
Die Cross-Reference — 8 AWG (Red band, industry die index 21)
CT P/N 210-09909 follows the industry-standard 12-ton U-groove die index and interchanges with:
| Manufacturer | Part / Index | System |
|---|---|---|
| Burndy (Hubbell) | U8CRT | U-die, fits Y35 / Y750 / PAT750 |
| Milwaukee | 49-16 U-style * | M18 Force Logic U-style |
| Thomas & Betts | Die Index 21 | Color-Keyed system |
| ILSCO | ILD-21 | IDT die system |
* Part number derived from manufacturer numbering pattern — verify against datasheet for critical applications. Prices are third-party street/MSRP references at time of publication and may change. All trademarks are property of their respective owners, used for compatibility and comparison identification only.
