Copper Short Barrel Two Hole Compression Lugs 6 AWG #10 Bolt Size
Shipping calculated at checkout
SKU: 210-98045
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

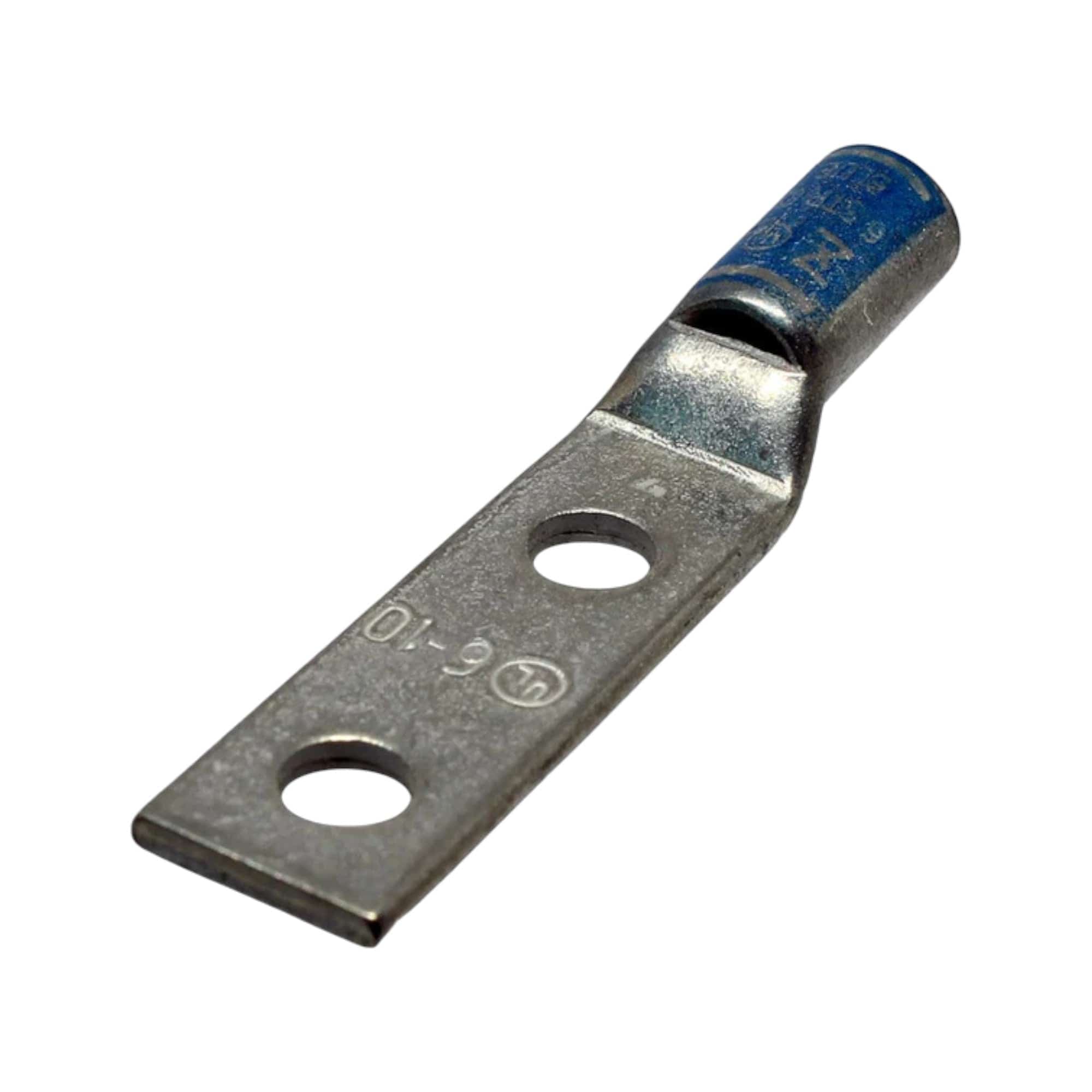

The Conversions Tech Copper Compression Lug is a reliable copper connector designed for electrical applications. It accommodates a 6 AWG conductor size and features two holes, a #10 bolt size, and 3/4-inch hole spacing, ensuring secure and efficient electrical connections. The lug includes a standard barrel and an integrated sight window for easy visual inspection. Its tin-plated finish provides superior corrosion resistance, while the distinctive blue color code allows for easy identification and compatibility with standard color-coding systems. This lug guarantees reliable and long-lasting performance in various electrical environments.
Key Features
- Copper Construction – Ensures excellent electrical conductivity and long-lasting reliability in electrical connections.
- 6 AWG Conductor Size – Specifically designed for 6 AWG wire, making it ideal for medium-sized conductors.
- #10 Bolt Size – Provides a standard bolt size for a secure and stable connection.
- 3/4-inch Hole Spacing – Offers optimal spacing for strong and reliable attachment points.
- Standard Barrel – Features a standard barrel for easy wire insertion and consistent compression.
- Sight Window – Integrated sight window allows for visual inspection of the crimped connection, ensuring proper installation.
-
Tin Plating & Blue Color Code – Tin plating enhances corrosion resistance, while the blue color code allows for easy identification and ensures compatibility with standard color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Blue |
| Overall Length | 2.132 Inches |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 6 AWG |
| Stud Size | #10 |
| Die Index | I-24 |
| Pad Size | 1.437 Inches Length x 0.44 Inches Width x 0.087 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 3/4 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.203 Inch |
| Outer Diameter | 0.295 Inch |
| Cable Entry | Chamfered Type |
