Copper Short Barrel Two Hole Compression Lugs 350 MCM 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98058A
1000 in stock
Open here

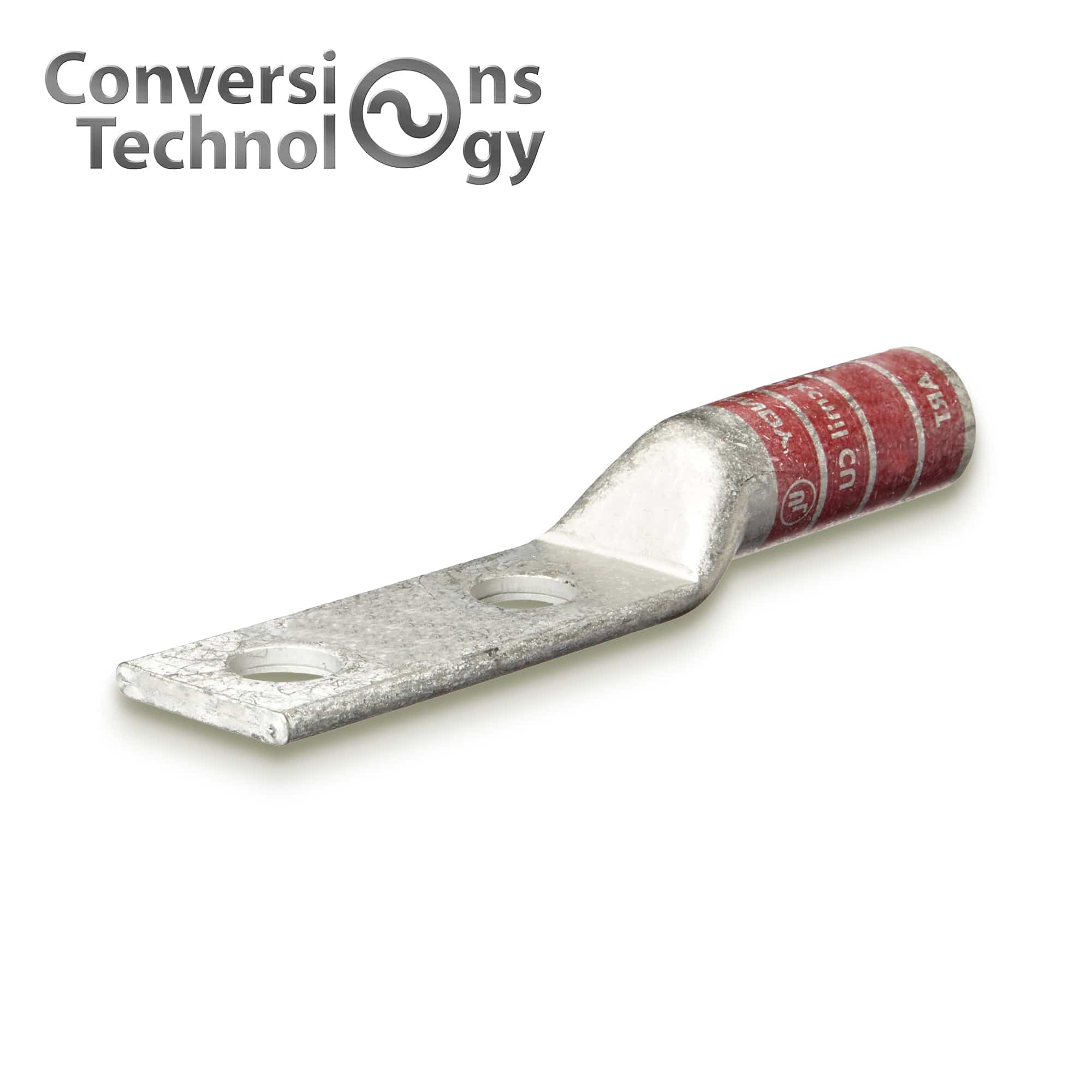

The Conversions Tech 2-Hole Lug is a high-quality copper compression lug designed for secure electrical connections, accommodating conductors up to size 350 AWG. Featuring a standard barrel, 3/8-inch bolt size, and a distinctive red color code for easy identification, this tin-plated lug ensures durability and reliable performance. The inclusion of a sight window provides visual confirmation of secure connections, making it an ideal choice for various electrical applications.
Key Features
- Designed for conductors up to 350 AWG - Accommodates 350 AWG conductors, ensuring reliable electrical connections in various high-performance applications.
- Standard barrel design - Promotes efficient crimping and enhances connection stability for long-lasting performance.
- 3/8-inch bolt size - Compatible with 3/8-inch bolts, ensuring secure attachment to electrical components.
- Distinctive red color code - Simplifies identification, allowing for easy and accurate conductor size recognition during installation.
- Tin-plated finish - Provides excellent corrosion resistance, ensuring durability and reliable performance over time.
- Sight window - Enables visual confirmation of a secure connection, offering added assurance during installation and improving overall connection integrity.
-
Ideal for high-demand electrical applications - Perfect for industrial, commercial, and other demanding electrical systems that require secure and stable connections.

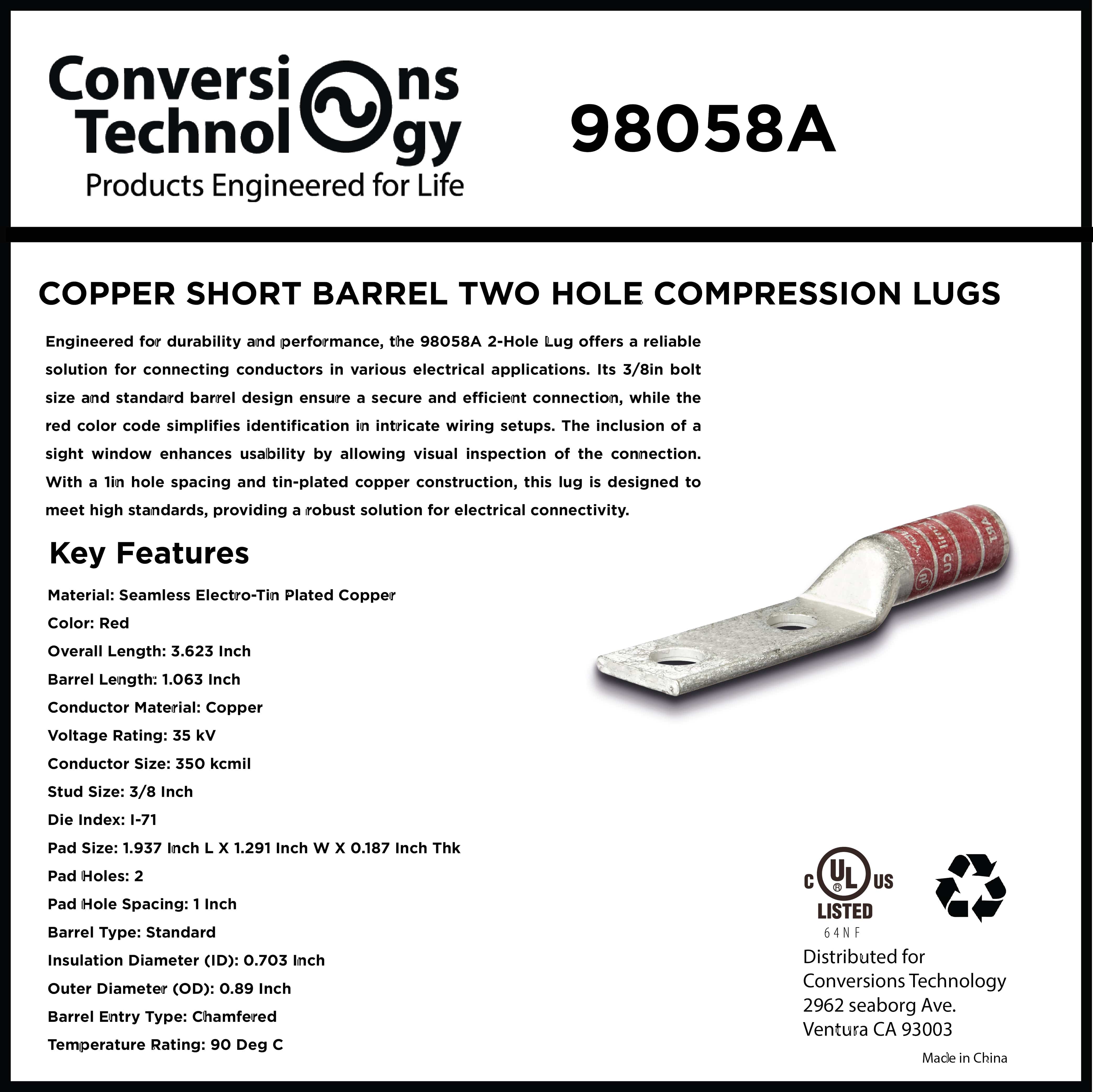

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Red |
| Overall Length | 3.623 Inches |
| Barrel Length | 1.063 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 350 mcm |
| Stud Size | 3/8 Inch |
| Die Index | I-71 |

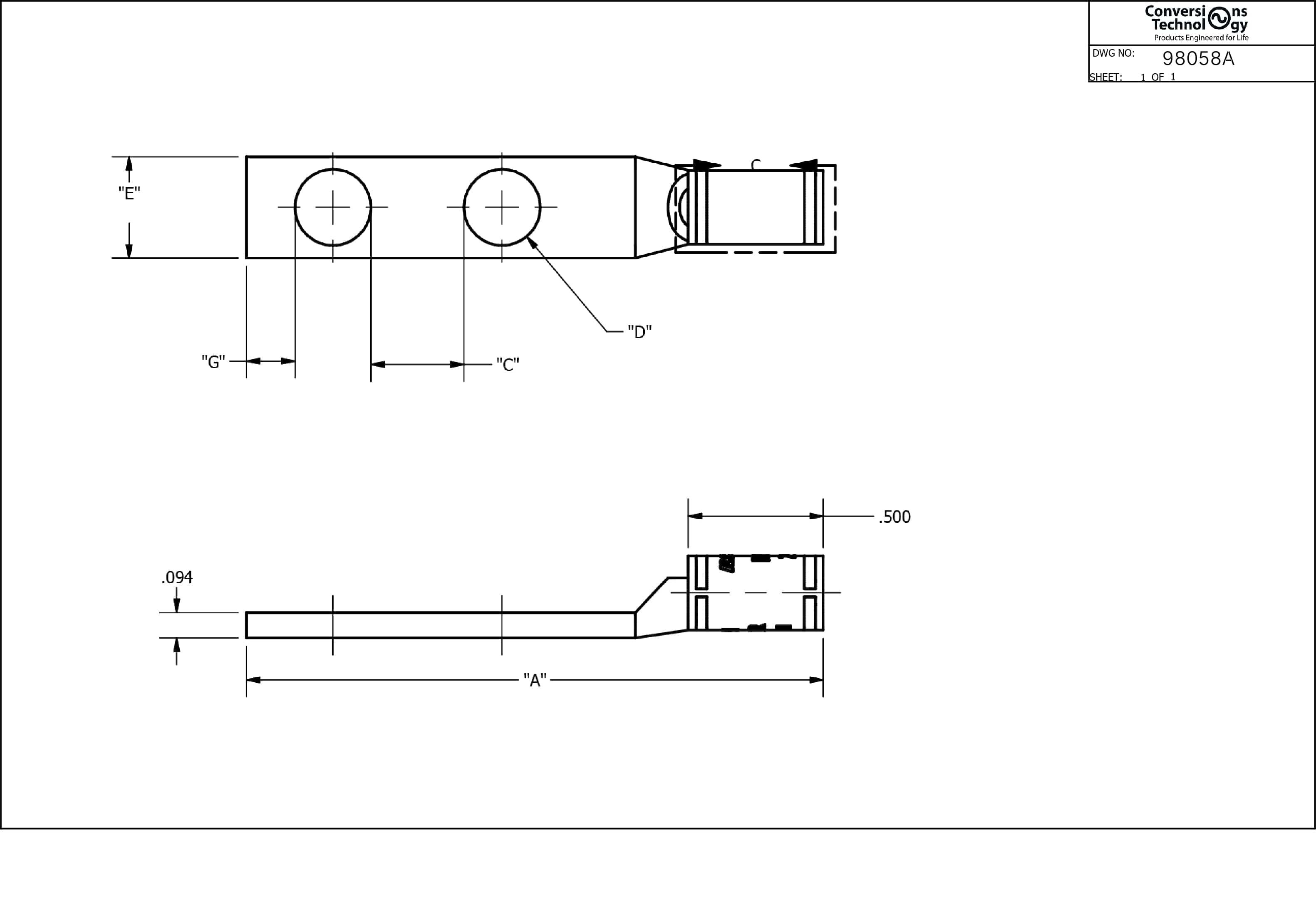

| Pad Size | 1.937 Inch Length x 1.291 Inch Width x 0.187 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Insulation Diameter (ID) | 0.703 Inch |
| Outer Diameter (OD) | 0.89 Inch |
| Barrel Entry Type | Chamfered |
| Temperature Rating | 90°C |
