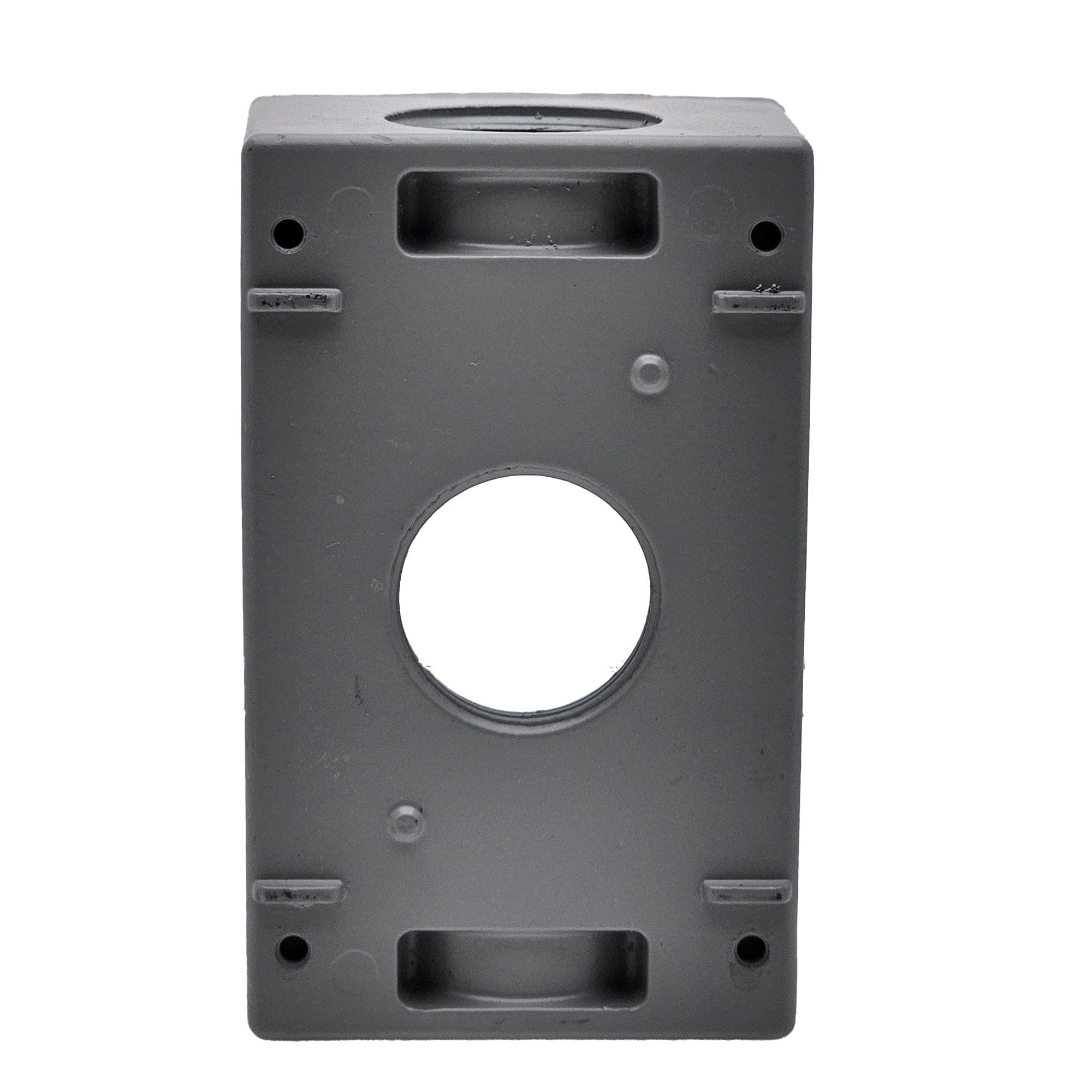

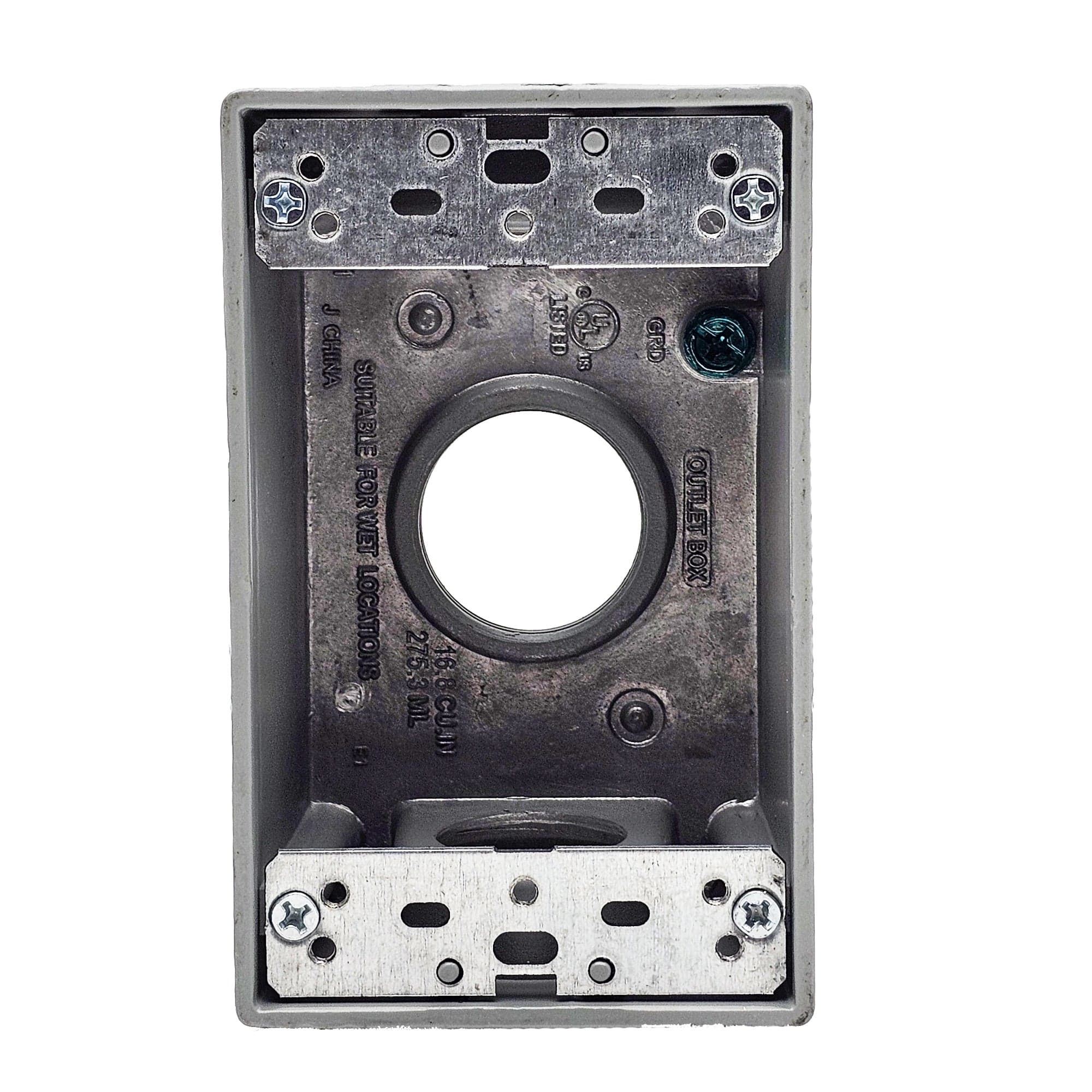

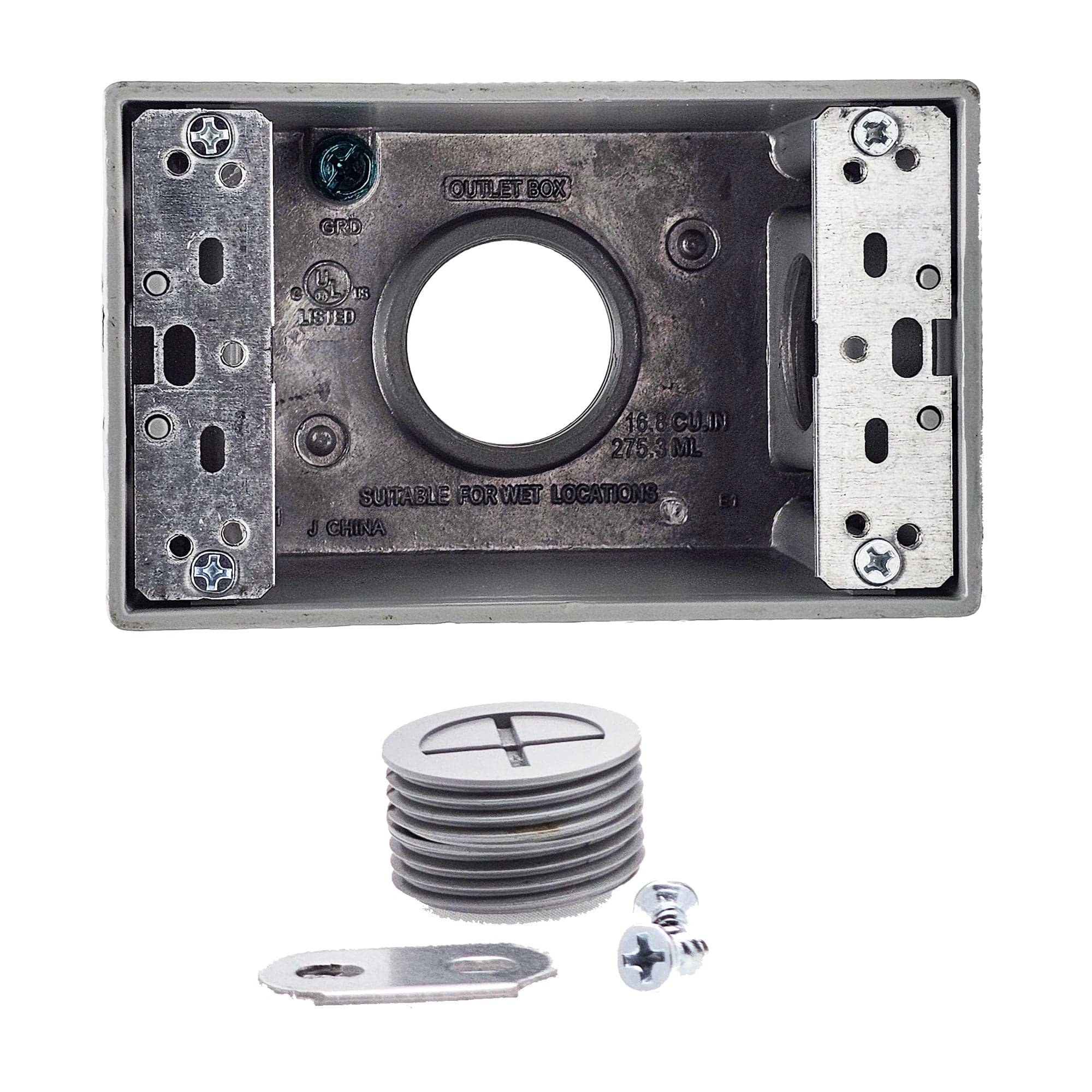

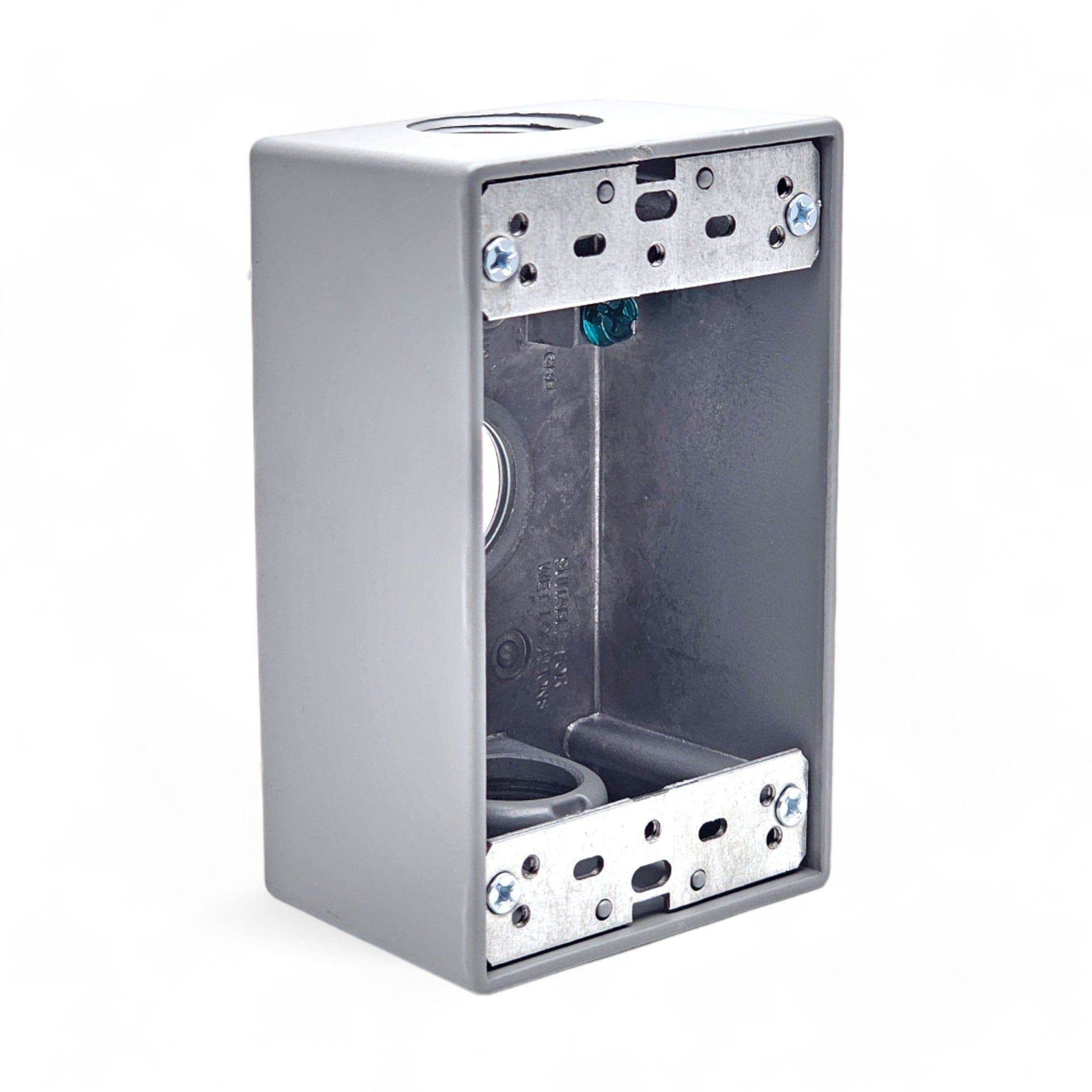

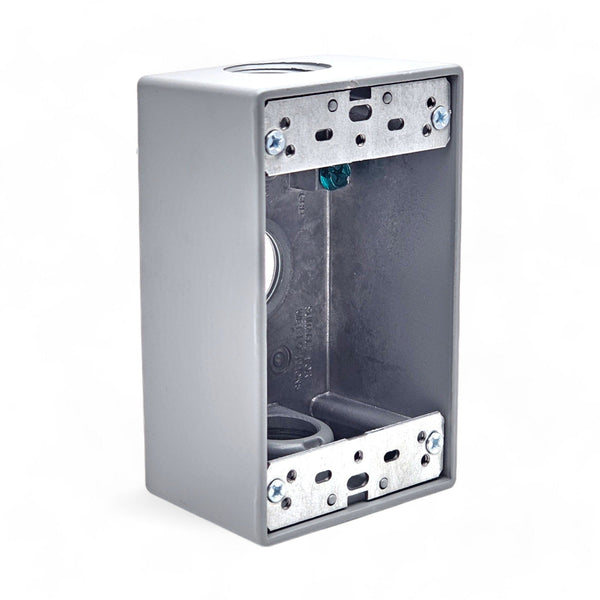

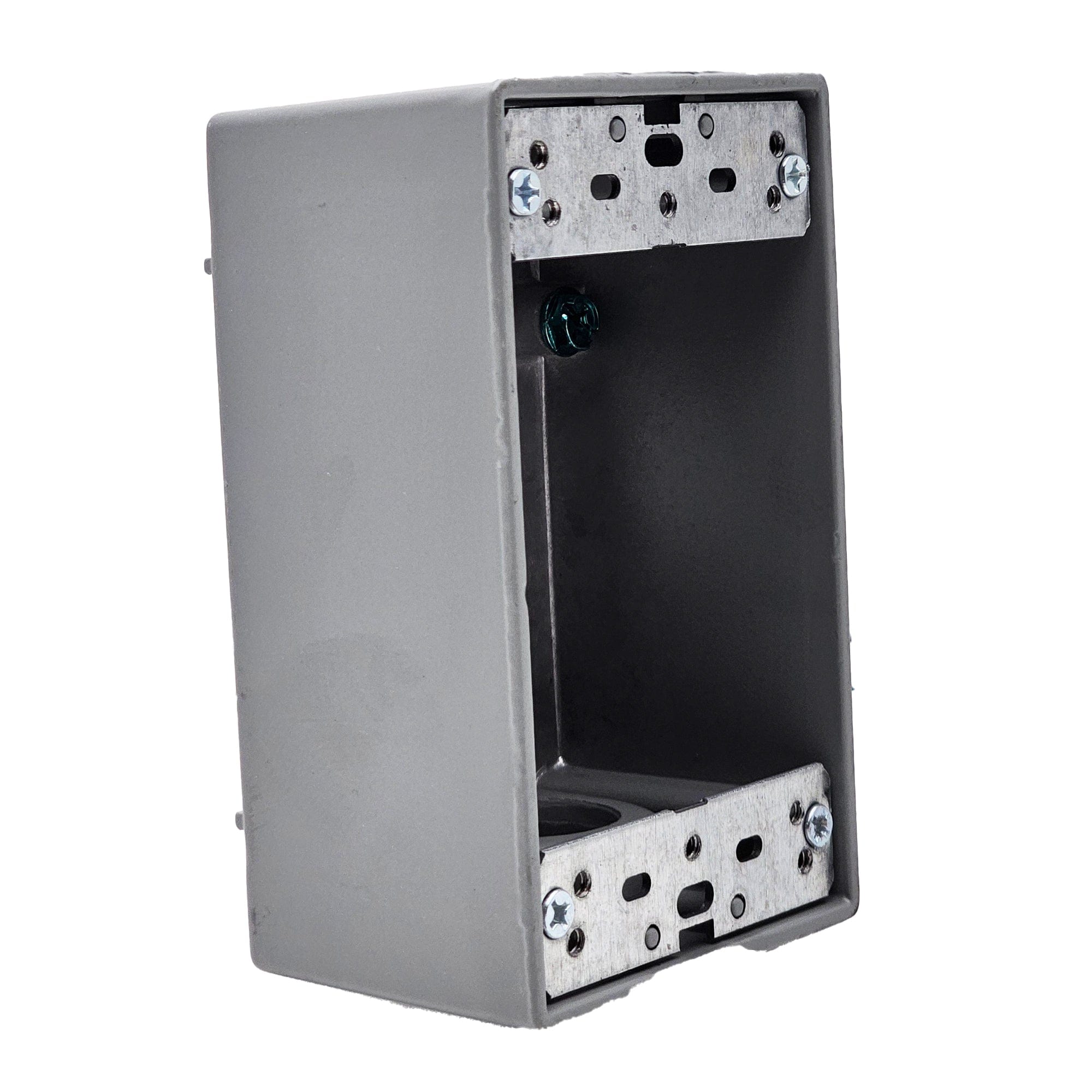

Weatherproof 1‑Gang Die‑Cast Metal Device Box — 1″ Hubs
Precision‑engineered for outdoor reliability, the Conversions Tech 1‑gang die‑cast junction box delivers corrosion‑proof performance, 18.3 cu in wire capacity, and code‑compliant protection for switches, receptacles, photocells, and smart‑lighting controls.
Key Technical Features
- Seamless Die‑Cast Aluminum Alloy — non‑sparking, rust‑proof body.
- ANSI 61 Grey Powder‑Coat — UV, salt‑spray & chemical resistance.
- 18.3 cu in Internal Volume — exceeds NEC 314.16 for 1‑gang devices.
- (3) × 1″ NPT Hubs — back & sides for flexible conduit entry.
- Factory‑Installed Mounting Lugs — fast tie‑in to masonry, wood, or strut.
- UL Listed & RoHS Compliant — passes North‑American safety & environmental tests.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Die‑cast aluminum alloy |
| Finish | UV‑stable polyester powder coat, ANSI 61 grey |

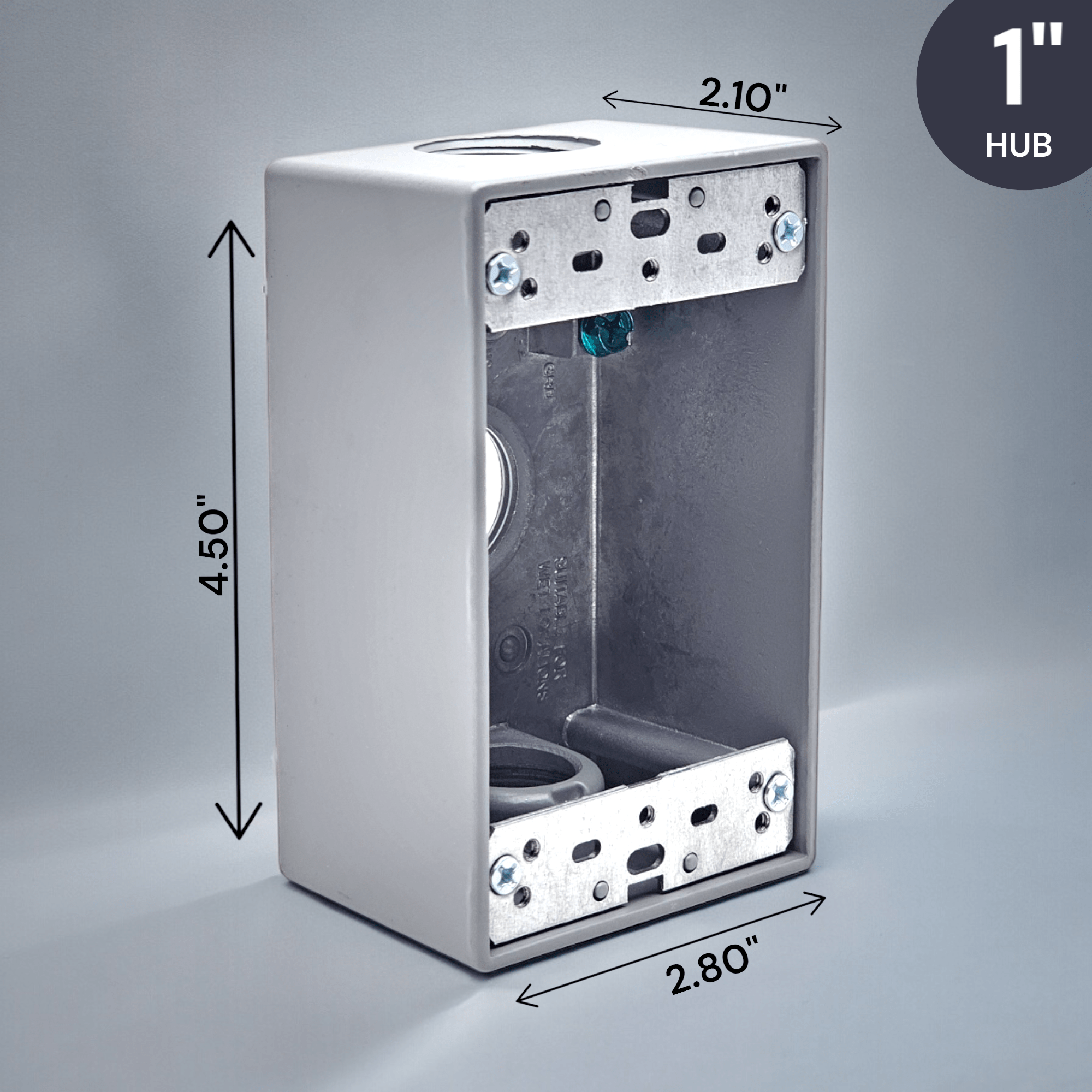

| Dimensions | 2.80″ W × 4.50″ H × 2.10″ D |
| Internal Volume | 18.3 cu in (300 cm³) |
| Hub Size / Count | 1″ NPT × 3 (back + both sides) |
| Mounting | Integral lugs |
| Temperature Range | –40 °C to +60 °C |
| Compliance | UL Listed, RoHS conformant |
Application Highlights

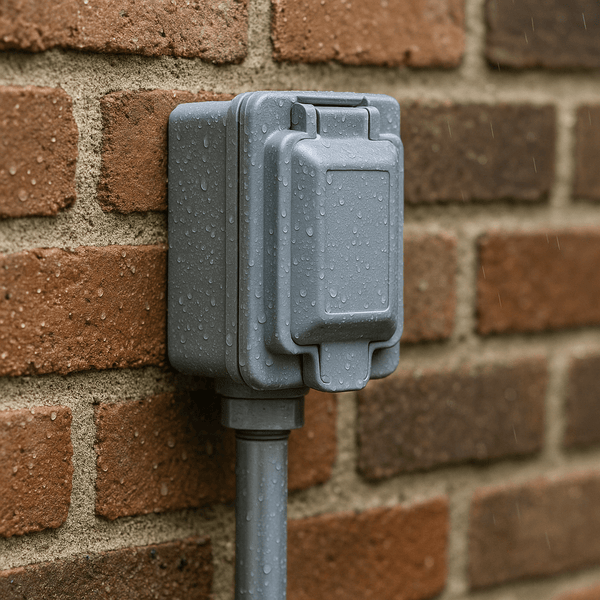

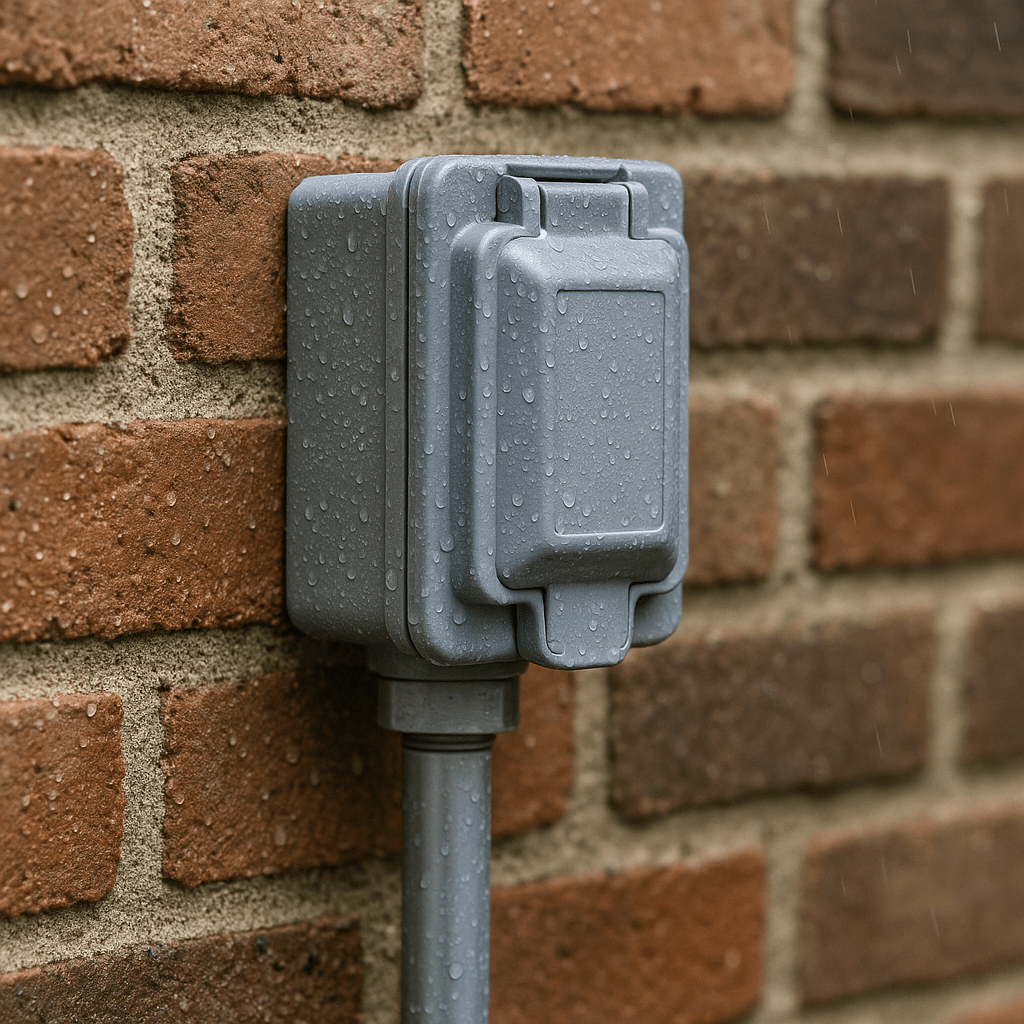

- Outdoor LED flood‑lights, photocontrols & occupancy sensors
- Deck & patio GFCI receptacles
- Commercial sign circuits & security‑camera power
- Industrial pump, motor & process‑control drops
- Solar combiner boxes, EV chargers & wind‑turbine terminations
- Emergency transfer‑switch controls & generator receptacles
