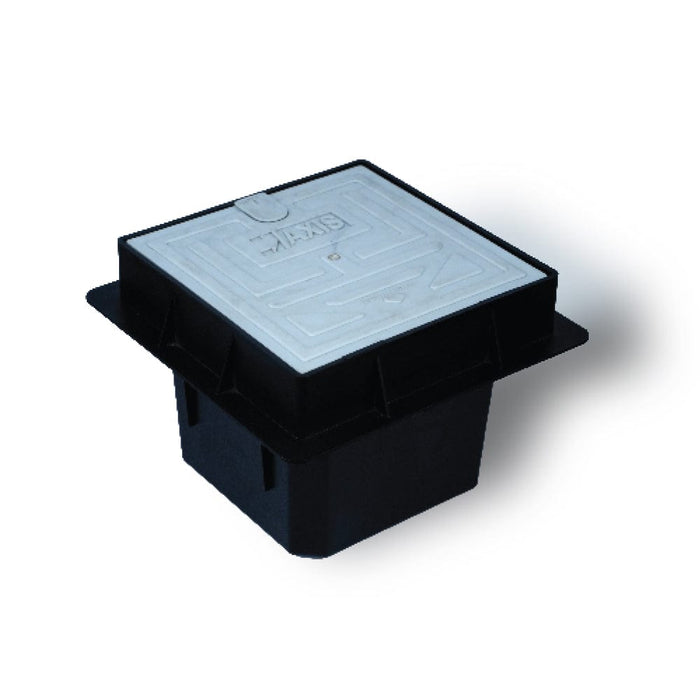

Light Weight Plastic Earth Pit - EPP3030
Shipping calculated at checkout
SKU: EPP2424
In stock
Open here
This Axis Polymer Earth housing pit is manufactured from heavy high-grade polypropylene for high strength & Stress
levels to absorb a maximum load of 5000kg. Stabilized against degradation by non-brittle and by sunlight to prevent cold
weather damage. The light weight feature allows easy handling, storage and transportation, thus increasing installation
efficiency. Termination area is increased by 100% due to simple locking of two units together, allowing deeper electrode
connections to be made and reducing the effects from harmful voltage gradients.
Technical Description
-
Polymer Body & Cover
-
Product Code : EPP3030
-
Dimensions : Outer Size : 308 mm (L) x 308 mm (W) x 215 mm (H)
-
Inner Size : 200 mm (L) x 200 mm (W) x 150 mm (H)
-
Weight : 2.5 kg (5.50 LBS)
Availability: This item ships on our standard restock cycle — typical lead time 2–3 weeks. Order now to reserve your place in the queue, or email sales@conversionstech.com for expedited options and firm dates on volume orders.
Specifications
| Part Number | EPP2424 |
| Category | USB device |
| Weight | 5.5 lb |
| HS Code | 8517.62.0090 |
| Country of Origin | China |
