CT-T2H2-600 Panelboard Lug, 2-Conductor, 2-Hole | 2 AWG to 600 kcmil, Tin-Plated 6061-T6 Aluminum, cULus
Shipping calculated at checkout
SKU: CT-T2H2-600
In stock
Open here

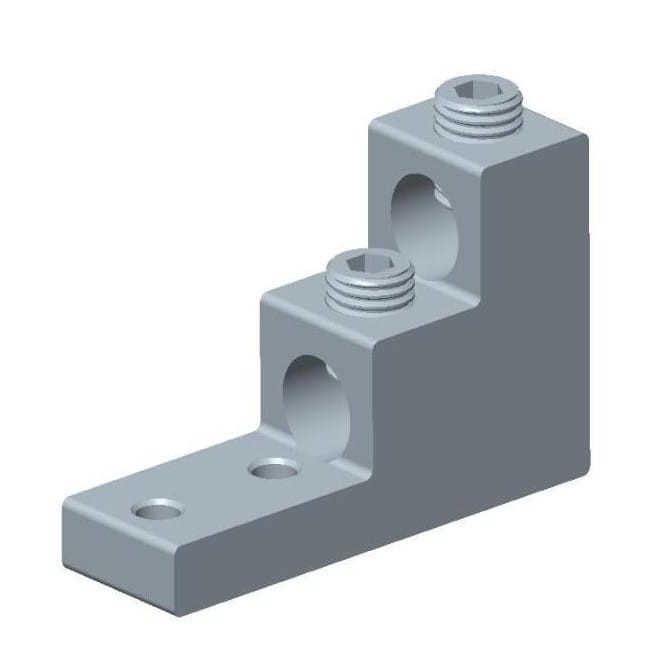

The CT-T2H2-600 is a 2-conductor, 2-hole aluminum panelboard lug for 2 AWG to 600 kcmil conductors: a re-enterable set-screw termination for panelboards, switchgear, gutters, transformers and OEM equipment. Machined from 6061-T6 aluminum alloy, electro tin plated, with a chamfered wire entry; rated 90 °C and cULus Listed.
Specifications
| Catalog number | CT-T2H2-600 |
| Conductors | 2 |
| Conductor range, each barrel | 2 AWG to 600 kcmil |
| Mounting holes | 2, ØF 0.41 in |
| Hole spacing (G) | 1.37 in |
| Set screw | 1/2 in hex socket |
| Material | 6061-T6 aluminum alloy, electro tin plated |
| Wire entry | Chamfered |
| Temperature rating | 90 °C |
| Listing | cULus Listed (manufacturer listing) |
Dimensions (manufacturer drawing, inches)
| A | 4.910 in (124.7 mm) |
| B | 3.000 in (76.2 mm) |
| C | 2.350 in (59.7 mm) |
| D | 0.750 in (19.0 mm) |
| E | 1.500 in (38.1 mm) |
| F | 0.410 in (10.4 mm) |
| G | 1.370 in (34.8 mm) |
| H | 0.440 in (11.2 mm) |
A overall length · B height · C tongue length · D tongue thickness · E width · ØF mounting hole · G hole spacing · H hole to end.
Cross-Reference — 2-Conductor, 2-Hole, 2 AWG to 600 kcmil
| Manufacturer | Part Number | Basis |
|---|---|---|
| ILSCO | PB2-600 | Same class: 2 barrel stack, 2 holes, 600 kcmil-2, 3/8 bolt (13/32 hole), 1-3/8 in spacing (J) |
| Burndy (Hubbell) | K11A36U2 | Same class: 2 cond stacked, 2 holes, 2 AWG-600 kcmil, 3/8 stud, 1.38 in spacing |
| Panduit | LAM2SB600-38-1Y | Same class: 2 barrel vertical, 2 holes, 2 AWG-600 kcmil, 3/8 stud hole, 1.38 in spacing |
| Penn-Union | PB2-600D1-1 | Closest published: 2 openings, 2 holes, 2 AWG-600, 3/8 bolt |
Crosses by conductors, conductor range, hole count and stud from each manufacturer's published catalog. Confirm the range and stud for your application. Trademarks belong to their respective owners and are used for compatibility identification only.
