Mechanical Lug, 3-Conductor, 2-Hole | 14 AWG to 1/0 AWG, Dual-Rated AL9CU, 1/4 in Holes, Slotted Set Screws, cULus | CT-T3H2-1/0A
Shipping calculated at checkout
SKU: CT-T3H2-1-0A
50 in stock
Open here

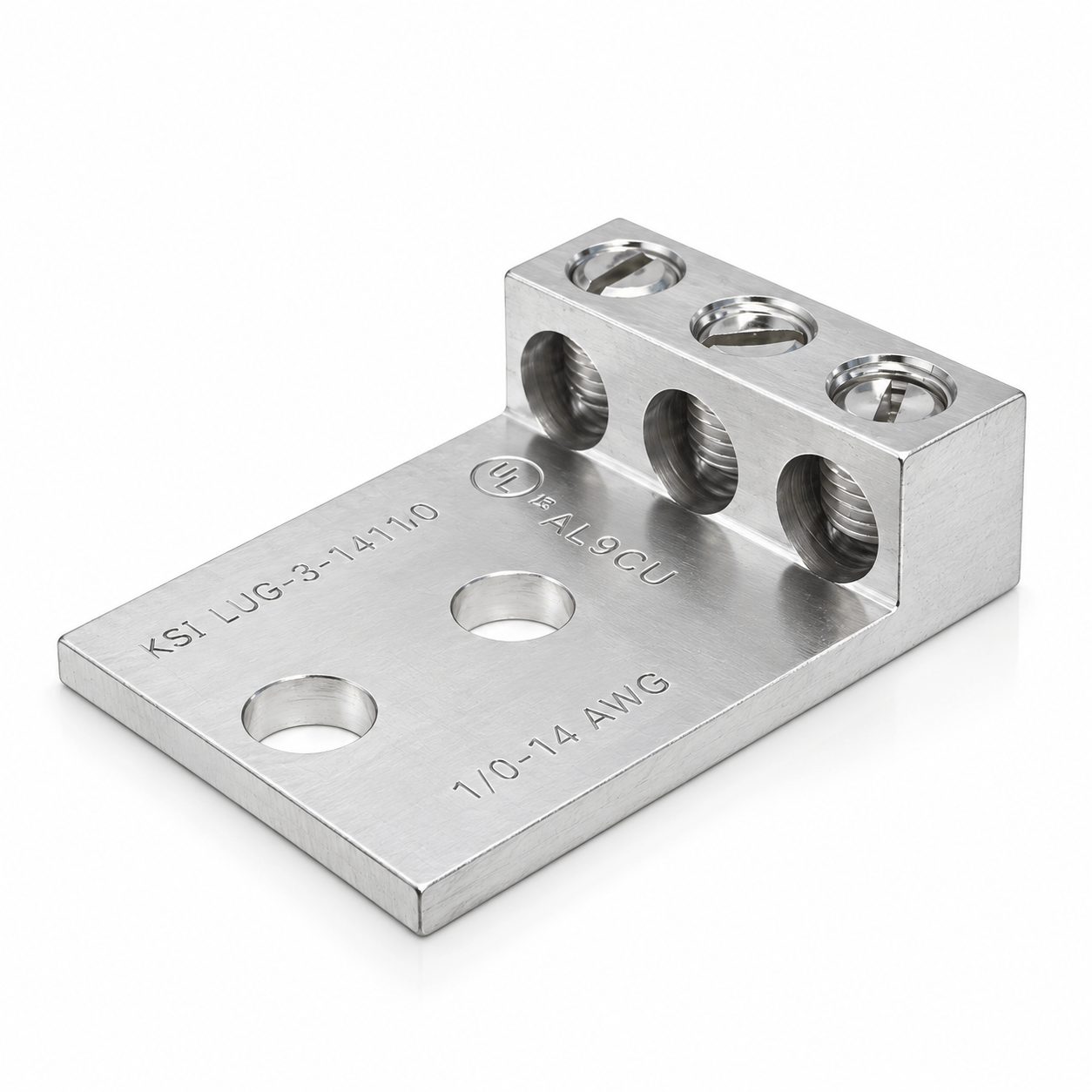

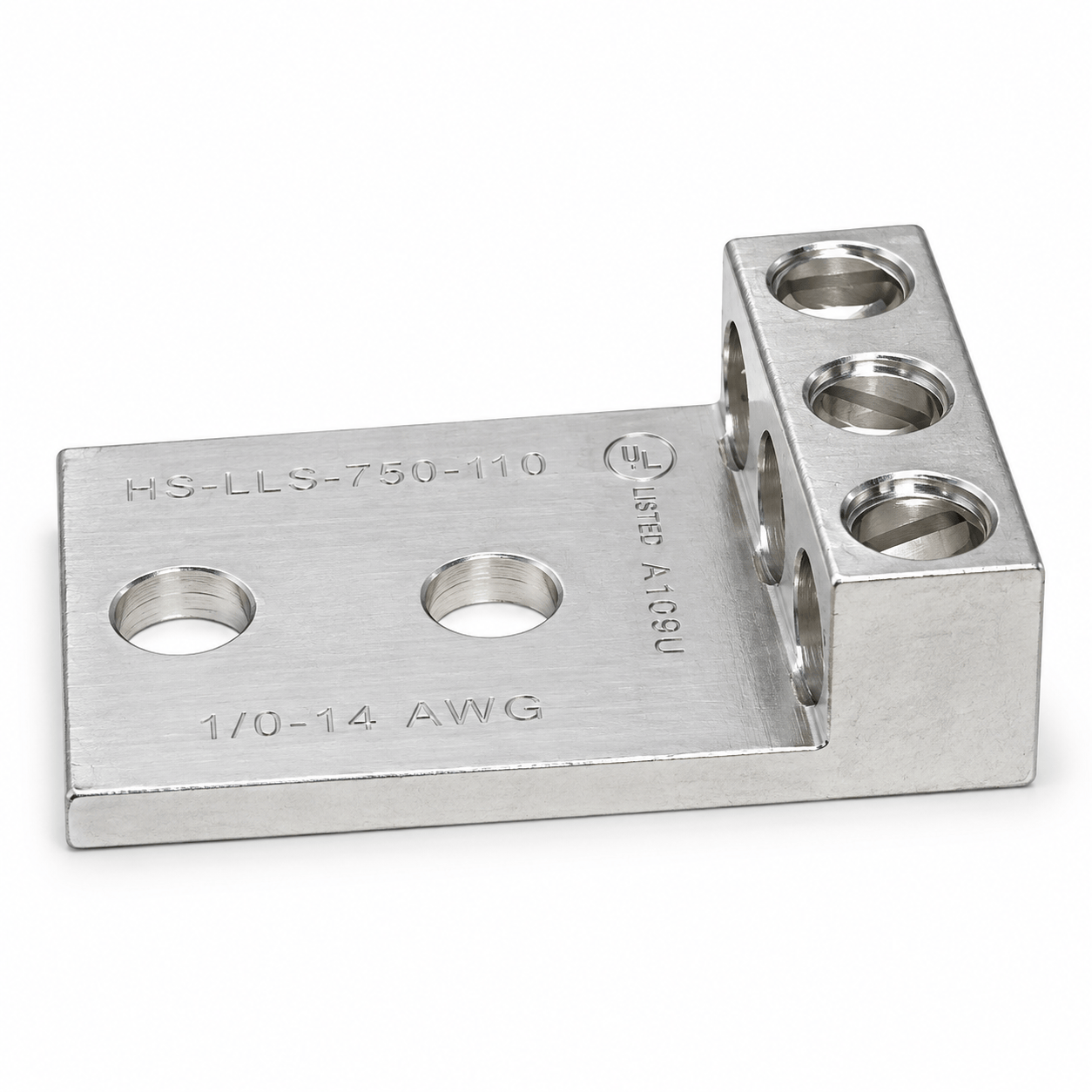

The Conversions Tech CT-T3H2-1/0A is a three-barrel mechanical lug on a two-hole tongue for landing up to three conductors from 14 AWG through 1/0 AWG on a panelboard, switchgear ground bar, transfer switch or busbar. Extruded 6061 aluminum, electro tin plated, dual-rated AL9CU so it takes copper or aluminum in any barrel. Two 1/4 in mounting holes on 1 in centers resist rotation under fault current where a single-hole lug can spin. Slotted set screws so a flat blade or a hex driver both work.
| Specifications | |
| Conductor range | 14 AWG to 1/0 AWG per barrel, AL/CU dual rated, stranded or solid |
| Conductors | 3 |
| Mounting | 2 holes, 1/4 in, 1 in on center; fits 1/4 in or M6 hardware |
| Set screws | Slotted, 1/8 in blade or 5/16 hex |
| Material / finish | 6061 aluminum, electro tin plated |
| Rating | 600 V, 90 C, cULus Listed to UL 486A/B |
| Torque (UL 486B) | 14 to 10 AWG 35 lb-in; 8 AWG 40 lb-in; 6 to 4 AWG 45 lb-in; 3 to 1/0 AWG 50 lb-in; oxide inhibitor on aluminum |
Neutral or ground landing in a subpanel or generator transfer switch, three-phase pigtail to a single lug, paralleling small feeders onto a busbar, solar combiner and battery-bank distribution, RV and marine DC panels. For a single-hole tongue see mechanical lugs; for 2 AWG to 600 kcmil in three barrels see CT-T3H1-600.
In stock and ships same day when ordered by 2 PM PT. Contractor and distributor pricing at 25 pieces; pallet pricing on request.
Cross-Reference: CT-T3H2-1/0A
| Brand | Part | Notes |
|---|---|---|
| ILSCO | PB3-1/0* | 3-conductor dual-rated panelboard lug, same class; match by 14 AWG to 1/0 AWG range and 2-hole tongue |
| Burndy | KA series, 3-port* | match by wire range 14 AWG to 1/0 AWG, 1/4 in holes |
| NSI Industries | 3-barrel AL9CU lug* | match by conductor count, range and two 1/4 in mounting holes |
| Penn-Union | LA-series 3-conductor* | dual-rated mechanical series, match by range |
*Cross by published wire range, conductor count and mounting specifications; verify fit for your application. Trademarks belong to their owners. Dual-rated AL/CU mechanical lug, tin-plated aluminum body, 14 AWG to 1/0 AWG x 3, 1/4 in holes, 2-hole mount, UL 486A/B class. See the cross-reference hub or email CS@ConversionsTech.com; we match any part in one business day.
