CT-T6H2-600-2NS Panelboard Lug, 6-Conductor, 2-Hole | 2 AWG to 600 kcmil, Tin-Plated 6061-T6 Aluminum, cULus
Shipping calculated at checkout
SKU: CT-T6H2-600-2NS
In stock
Open here

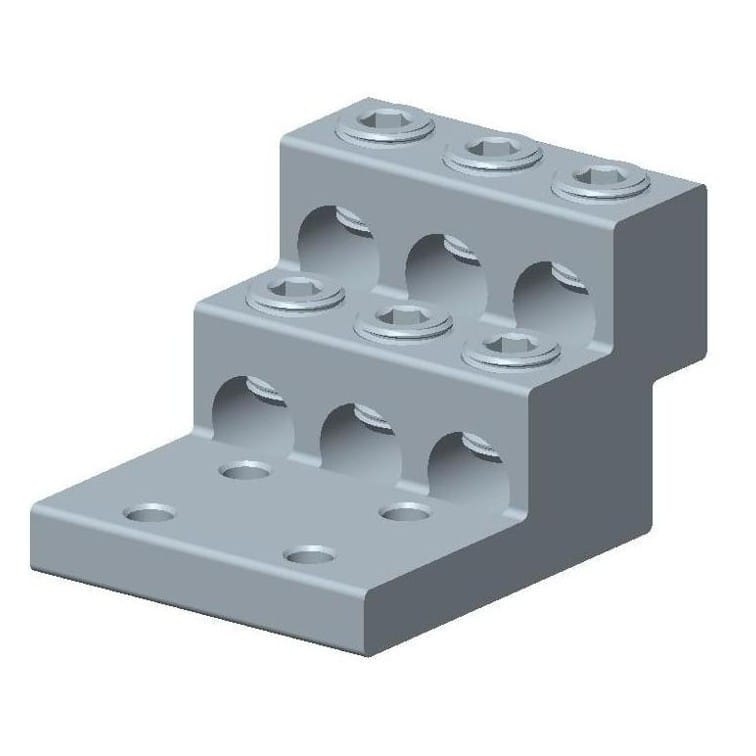

The CT-T6H2-600-2NS is a 6-conductor, 2-hole aluminum panelboard lug for 2 AWG to 600 kcmil conductors: a re-enterable set-screw termination for panelboards, switchgear, gutters, transformers and OEM equipment. Machined from 6061-T6 aluminum alloy, electro tin plated, with a chamfered wire entry; rated 90 °C and cULus Listed.
Specifications
| Catalog number | CT-T6H2-600-2NS |
| Conductors | 6 |
| Conductor range, each barrel | 2 AWG to 600 kcmil |
| Mounting holes | 2, ØF 0.41 in |
| Hole spacing (G) | 1.37 in |
| Set screw | 1/2 in hex socket |
| Material | 6061-T6 aluminum alloy, electro tin plated |
| Wire entry | Chamfered |
| Temperature rating | 90 °C |
| Listing | cULus Listed (manufacturer listing) |
Dimensions (manufacturer drawing, inches)
| A | 4.920 in (125.0 mm) |
| B | 2.930 in (74.4 mm) |
| C | 2.360 in (59.9 mm) |
| D | 0.630 in (16.0 mm) |
| E | 3.690 in (93.7 mm) |
| F | 0.410 in (10.4 mm) |
| G | 1.370 in (34.8 mm) |
| H | 0.440 in (11.2 mm) |
A overall length · B height · C tongue length · D tongue thickness · E width · ØF mounting hole · G hole spacing · H hole to end.
