FC/UPC to SC/UPC Fiber Patch Cable | Single-Mode Simplex 9/125 OS2
Shipping calculated at checkout
SKU: CT-FPC-FCU-SCU-01M
In stock
Open here

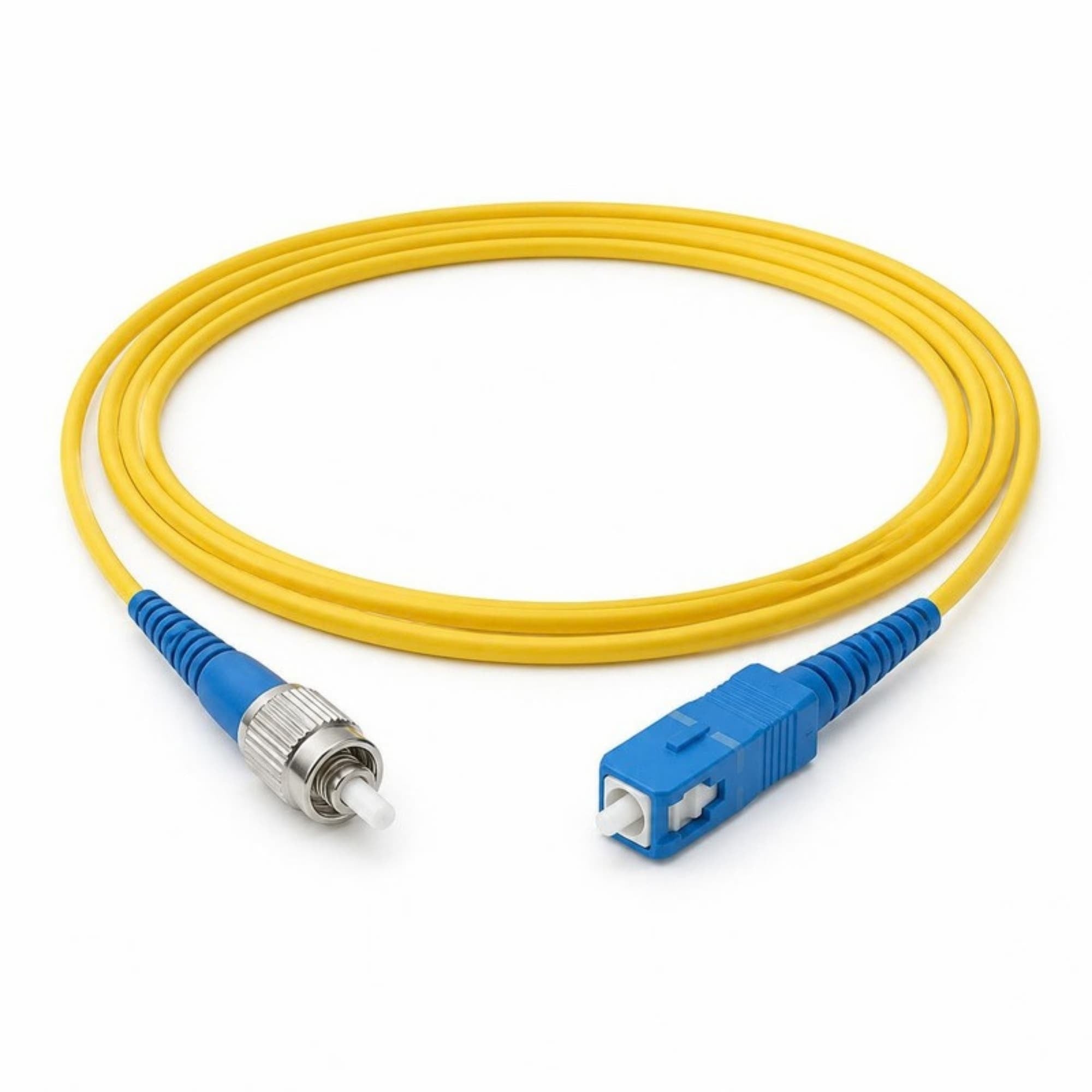

FC/UPC to SC/UPC simplex single-mode fiber patch cable (9/125 µm OS2), factory terminated and 100% tested for insertion and return loss. UPC polish provides low-loss, low-reflection performance for data, telecom, and enterprise links. Precision zirconia ceramic ferrules ensure repeatable, low-loss mating over hundreds of cycles.
Applications
- FTTH / FTTx and PON (GPON, EPON, XGS-PON) distribution
- Central office, headend, and data center cross-connect
- ONT/OLT and CATV node connections
- Test, turn-up, and restoration kits
| Fiber Type | Single-mode 9/125 µm (OS2, G.652D/G.657 compatible) |
| Connectors | FC/UPC to SC/UPC |
| Insertion Loss | ≤0.3 dB per connector |
| Return Loss | ≥50 dB (UPC) |
| Jacket | 0.9/2.0 mm simplex |
| Available Lengths | 1 m |
| Testing | 100% factory tested; data available on request |
Why Conversions Tech
Certification-tested product lines, per-assembly test data, and engineering support that helps you pick the right polish and length before you order. Custom connector pairs, jackets, duplex, and multimode builds without overseas MOQs.
Frequently Asked Questions
What is a FC/UPC to SC/UPC fiber patch cable used for?
A FC/UPC to SC/UPC simplex single-mode patch cable connects equipment or panel ports that use FC/UPC on one end and SC/UPC on the other — common in test equipment, central-office cross-connects, and transitions between legacy FC plant and SC hardware where 9/125 OS2 fiber is the standard.
What is the difference between UPC and APC polish?
UPC (blue) connectors have a flat-domed end-face with return loss around 50 dB. APC (green) connectors are polished at an 8° angle, pushing return loss above 60 dB. APC is required for GPON, RF-over-glass, and any link sensitive to back-reflection. Never mate APC to UPC — the air gap causes high loss and can damage end-faces.
Are these patch cables tested before shipping?
Yes. Every assembly is 100% factory tested for insertion loss (≤0.3 dB) and return loss before it ships, with test data available on request.
Can I order a custom length or connector combination?
Yes. Any connector pair, length, jacket (PVC/LSZH), or duplex/multimode configuration can be built to order — contact Conversions Tech at (307) 206-0534 with your specification.
Lead Time: Made-to-order item. Typical lead time is 3–4 weeks from order confirmation. Call (307) 206-0534 for expedited or volume requirements, custom lengths, or connector combinations not listed.
Browse the complete line in our Fiber Optic Connectivity collection or download the full CT-31 Fiber Optic Catalog.
Specifications
| Part Number | CT-FPC-FCU-SCU-01M |
| Category | Fiber cable |
| Weight | 0.15 lb (est.) |
| HS Code | 8544.70.0000 |
| Country of Origin | China |
Cross-Reference & Spec Class: CT-FPC-FCU-SCU-01M
| Brand | Series | Spec Class |
|---|---|---|
| Corning | fiber patch class* | OS2 Single-mode FC-SC |
| CommScope | LazrSPEED / TeraSPEED class* | same OS2 Single-mode performance class |
| Panduit | Opti-Core class* | 10G+ long-haul |
| Conversions Tech | CT-FPC-FCU-SCU-01M | distributor-direct |
OS2 Single-mode simplex fiber, FC/UPC-SC/UPC polish class, ceramic ferrules, 10G+ long-haul rated. Insertion loss ≤0.3 dB typical. Bend-insensitive fiber.
*Cross by fiber mode, connector, and performance class per TIA-568 - all standard OS2 Single-mode plant compatible. Trademarks belong to their owners.
