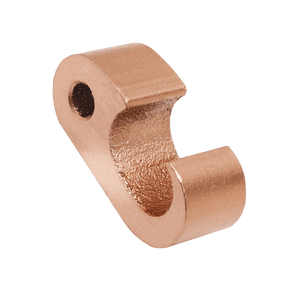

Fig 6 Irreversible Compression Connector 1/0-250 MCM 4-2 STR | 600V 90°C
Shipping calculated at checkout
SKU: 610-23176
In stock
Open here

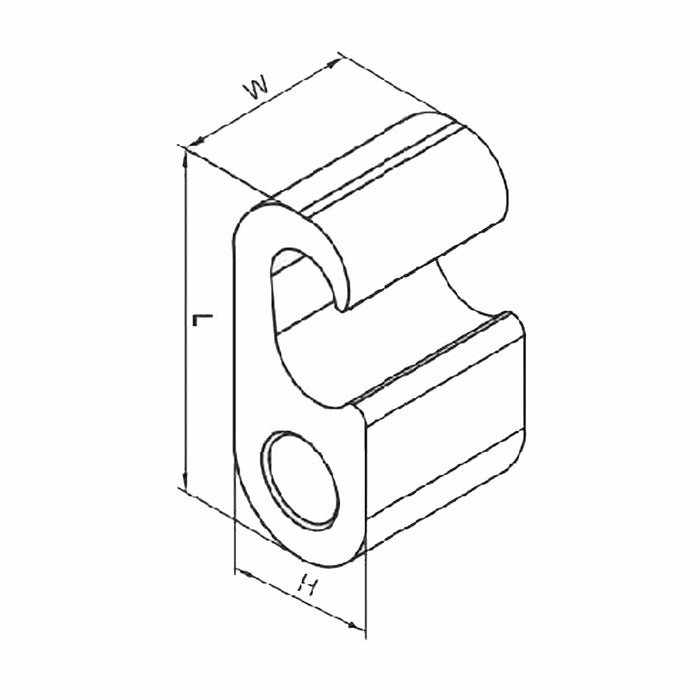

The Fig 6 Type Irreversible Compression Connector is a dual-function ground tap and tap splice connector engineered for parallel conductor applications. Designed for direct burial installations, this connector accommodates two continuous parallel conductors and is compatible with copper bonded ground rods and rebars. The compact form factor simplifies taping in tight enclosures, while the copper alloy construction maintains structural integrity under compression.
Specifications
- Conductor range: 1/0-250 MCM, 4-2 STR
- Material: Copper alloy
- Voltage rating: 600V
- Temperature rating: 90°C
- Configuration: Accommodates two continuous parallel conductors
- Pre-filled with anti-oxidant compound
- UL 467 listed
- UL96 listed for lightning protection
- Direct burial rated
- Compatible with 1/2", 5/8", and 3/4" copper bonded ground rods and rebars
- Requires four die sets and eight connectors for full conductor range coverage (#8 solid to 500 kcmil)
Cross-Reference
Equivalent to Burndy and Blackburn Fig 6 type irreversible compression connectors. Conversions Tech specifications match industry-standard form factors at distributor-direct pricing.
FAQ
What conductor combinations does this Fig 6 connector accept?
This connector handles 1/0-250 MCM and 4-2 STR conductors. The Fig 6 series overall accommodates #8 solid through 500 kcmil when using the complete die set and connector range.
Is this connector rated for direct burial without additional protection?
Yes. The Fig 6 carries direct burial rating and UL 467 listing for grounding and bonding applications. The pre-filled anti-oxidant compound inhibits corrosion at the interface.
What tooling is required for installation?
Installation requires four die sets and eight connectors to achieve the full conductor range. Verify die compatibility with your compression tool manufacturer specifications.
Availability: This item ships on our standard restock cycle — typical lead time 2–3 weeks. Order now to reserve your place in the queue, or email sales@conversionstech.com for expedited options and firm dates on volume orders.
Specifications
| Part Number | 610-23176 |
| Category | Electrical connector |
| Weight | 0.25 lb |
| HS Code | 8536.90.4000 |
Cross-Reference: 610-23176
| Brand | Part Number | Notes |
|---|---|---|
| Burndy | YGHC-C series | HYGROUND irreversible tap class, 1/0-250 kcmil run — match by run/tap range* |
| Conversions Tech | 610-23176 | distributor-direct |
*Cross by rod diameter, cable range, and UL 467 direct-burial listing - verify die index for your tooling. Trademarks belong to their owners.
See also ground rods and irreversible compression grounding. Contractor & distributor pricing →
