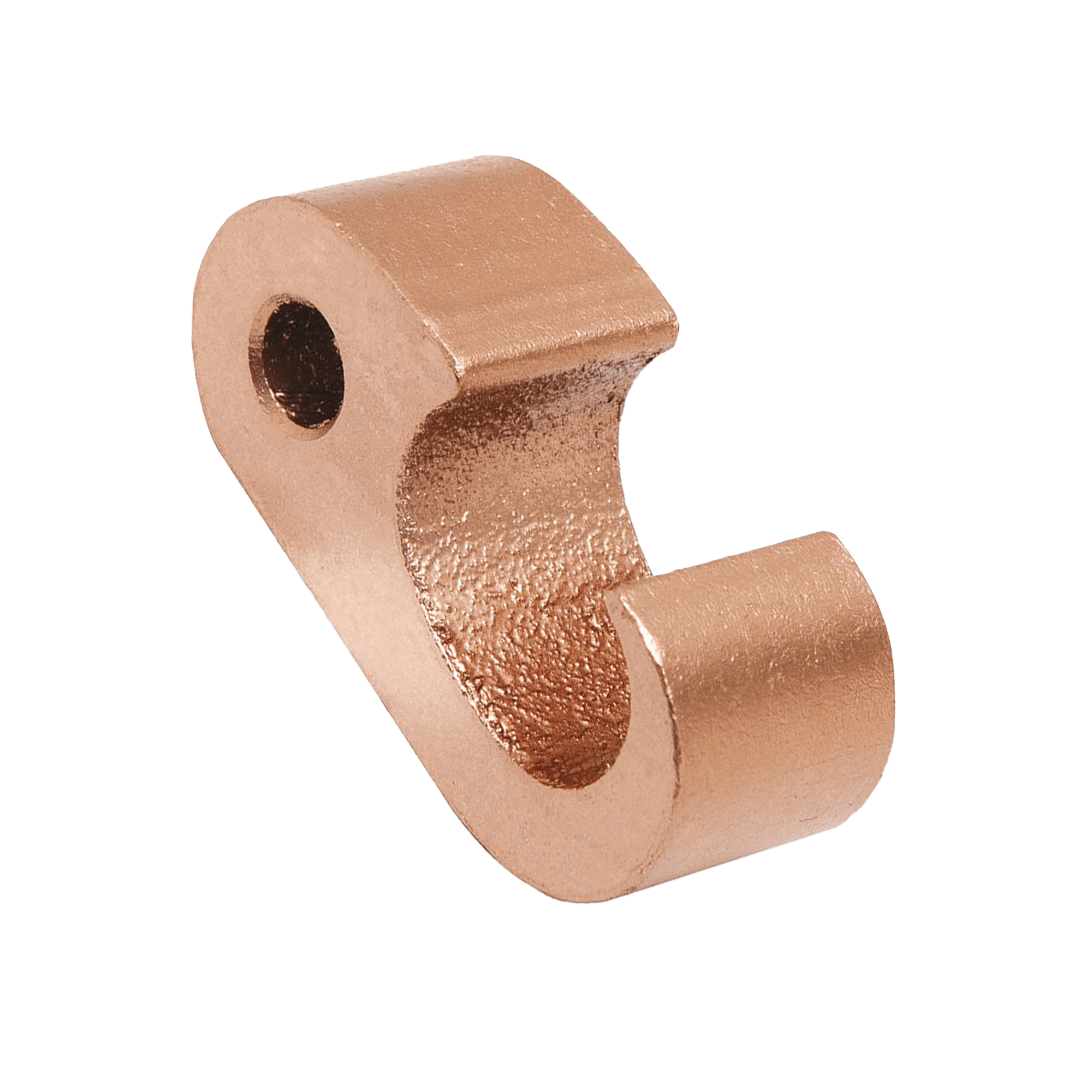

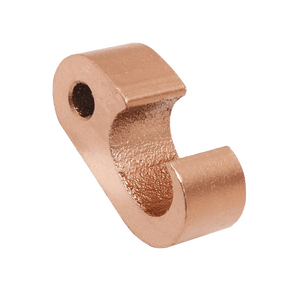

Fig 6 Type Irreversible Compression Connectors — Copper Alloy | UL467 / UL96 Listed | Conversions Tech
The Conversions Tech Fig 6 Type Irreversible Compression Connectors provide a reliable, efficient, and long-lasting solution for electrical grounding and bonding systems. Crafted from a robust copper alloy, these connectors deliver superior mechanical strength and conductivity, ensuring dependable performance across diverse applications, including direct burial and lightning protection systems.
Key Technical Specifications
| Material | High-strength copper alloy for durability and corrosion resistance |
| Voltage Rating | 600 Volts |
| Temperature Rating | 90°C (Heat-resistant construction) |
| Design Type | Compact irreversible compression connector for direct burial use |
| Conductor Capacity | Accommodates two continuous parallel conductors |
| Pre-Filled Compound | Factory pre-filled with anti-oxidant compound to prevent corrosion and ensure long-term conductivity |
| Listings | UL467 Listed for Grounding and Bonding UL96 Listed for Lightning Protection |
| Origin | USA *Stock product may be sourced elsewhere. |
Features
- Constructed from a high-strength copper alloy for durability and superior conductivity.
- Compact, easy-to-handle design simplifies installation and taping.
- Factory pre-filled with anti-oxidant compound to ensure long-lasting, low-resistance connections.
- Accommodates two continuous parallel conductors for versatile installations.
- Rated for 600 Volts and temperature resistant up to 90°C.
- Complies with UL467 and UL96 requirements for grounding and lightning protection.
Applications
- Direct burial electrical grounding applications
- Lightning protection systems
- Industrial grounding grids
- Commercial and utility grounding installations
The Fig 6 Type Irreversible Compression Connector is a trusted choice for electrical professionals requiring secure, long-lasting grounding connections. Designed for direct burial and high-performance environments, it combines mechanical strength, conductivity, and corrosion protection to deliver reliable service life under extreme conditions.
