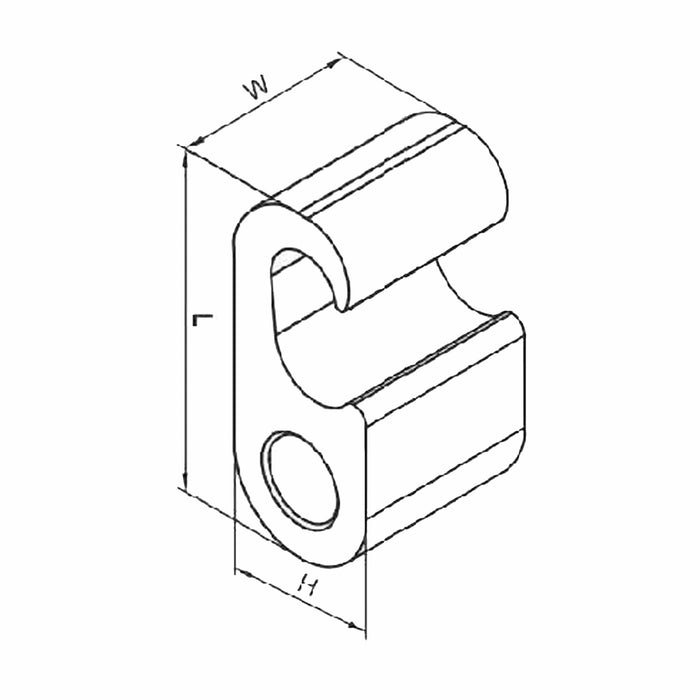

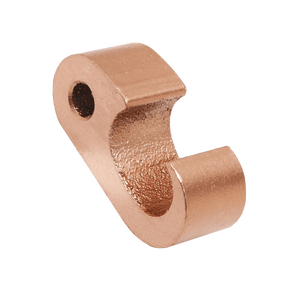

Figure 6 Irreversible Compression Connector 250–500 MCM | 350–500 MCM Tap
Shipping calculated at checkout
SKU: 610-23160
In stock
Open here
CT 610-23160 — UL 467 irreversible compression figure-6 tap connector joining a 250–500 MCM run conductor to a 350–500 MCM copper tap — the heavy end of the line, for full-size grid-to-grid junctions. Listed for direct burial and concrete encasement. Direct cross for Burndy HYGROUND HYTAP™ YGHP34C34 — same 12-ton tool platform, same die.
| Part No. | 610-23160 |
|---|---|
| Type | Figure 6, cable-to-cable tap |
| Run range | 250–500 MCM Cu |
| Tap range | 350–500 MCM Cu |
| Material | High-conductivity wrought copper |
| Listings | UL 467 grounding & bonding; direct burial / concrete encasement |
| Tooling | 12-ton U-die hydraulic (Y750/PAT750/Y46 class); die index stamped on body |
Cross-reference
| Manufacturer | Part No. | Covers | Die index |
|---|---|---|---|
| Burndy HYGROUND | YGHP34C34 | 250–500 kcmil run or 5/8"–3/4" rod; 350–500 kcmil tap | 1011 (U1011), 3 crimps |
Cross-references identify equivalent function and conductor/rod range; verify die selection against the index stamped on the connector.
Where it's used
- Grid-to-grid junctions where both conductors run 350–500 MCM — substation mats, generation sites, transmission grounds
- Buried and concrete-encased junctions — no access box required (NEC 250.68(A) Exception)
- High-fault-current paths specifying IEEE 837-class permanent connections
How to install
Wire-brush both conductors to bright metal, slide the run through the run bore, insert the tap fully so it shows past the barrel, and crimp with the stamped die index until the dies fully bottom — center first, working outward. Full field procedure: How to Crimp Irreversible Compression Grounding Connectors.
Why irreversible compression
NEC 250.64(C)(1) permits grounding electrode conductor splices only by irreversible compression or exothermic welding. Compression installs in wet trenches with no hot-work permit, and every crimp embosses its die index for inspection. More: Where, How, and Why to Use Irreversible Compression Grounding.
Made to order — ships from our production line, typically 6–8 weeks. Volume and project pricing through the trade desk.
