Gas Spring 10 in Extended, 50 N or 100 N (11 or 22 lbf) | Single or Pair
Shipping calculated at checkout
SKU: CT-GS-10IN-0050N-1PK
50 in stock
Open here

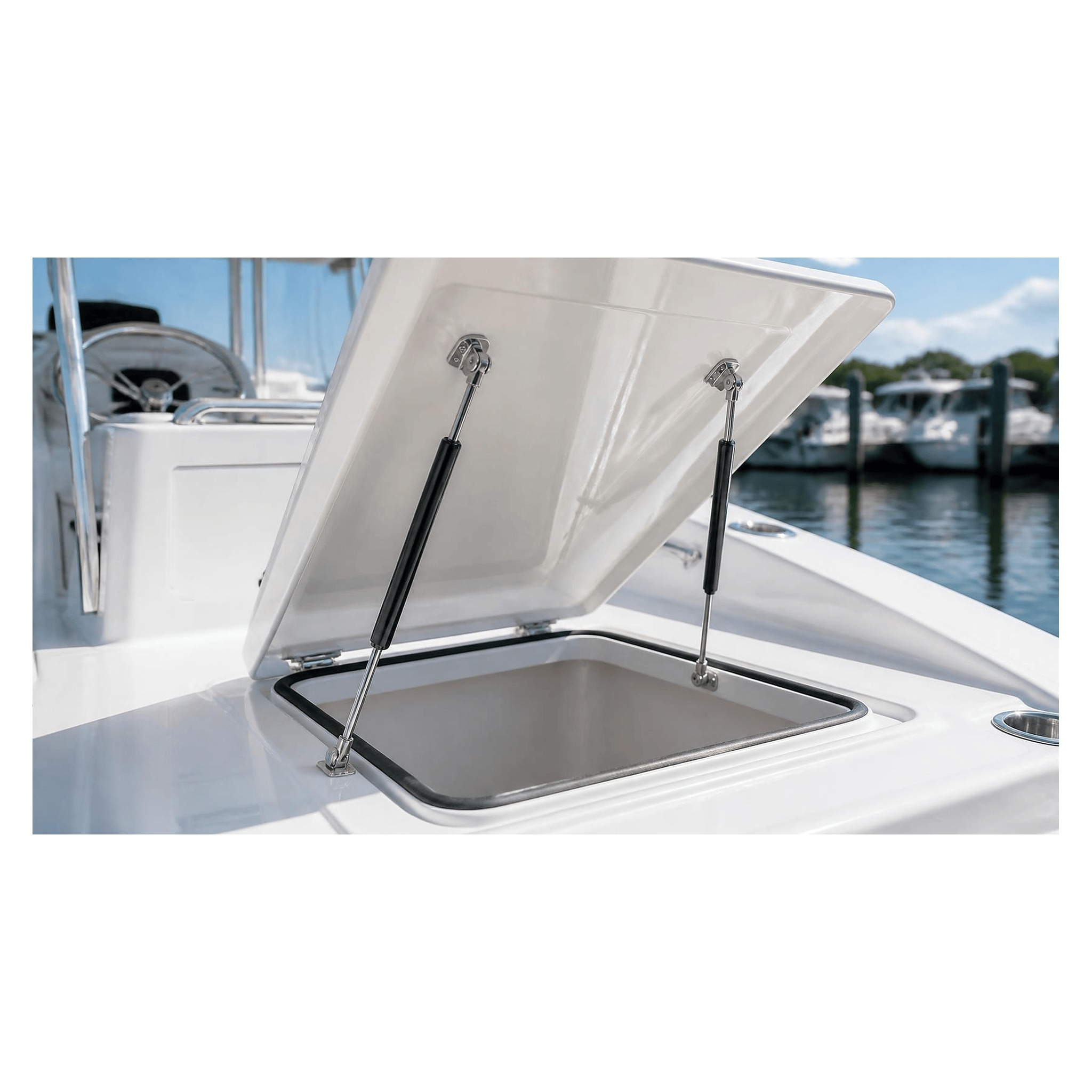

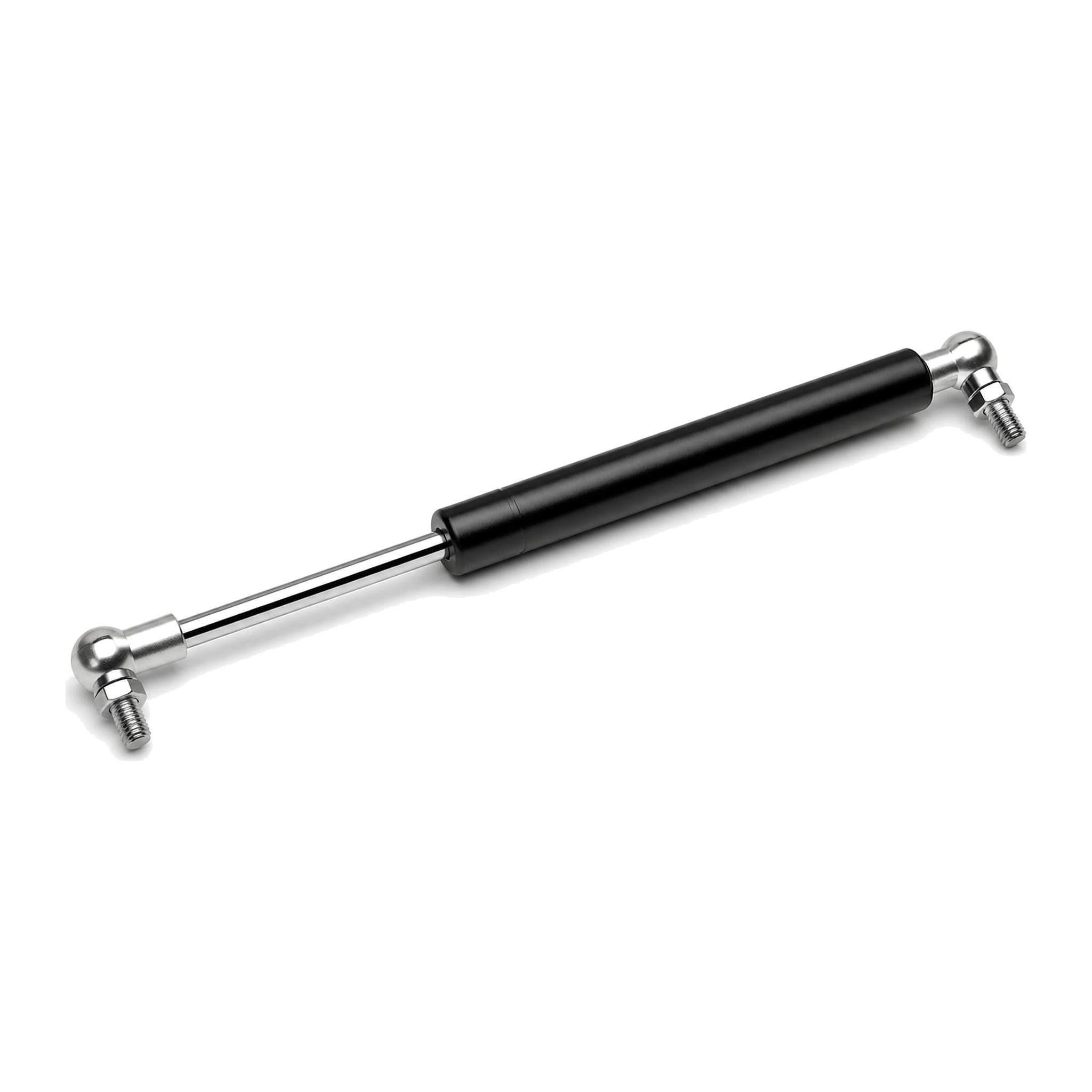

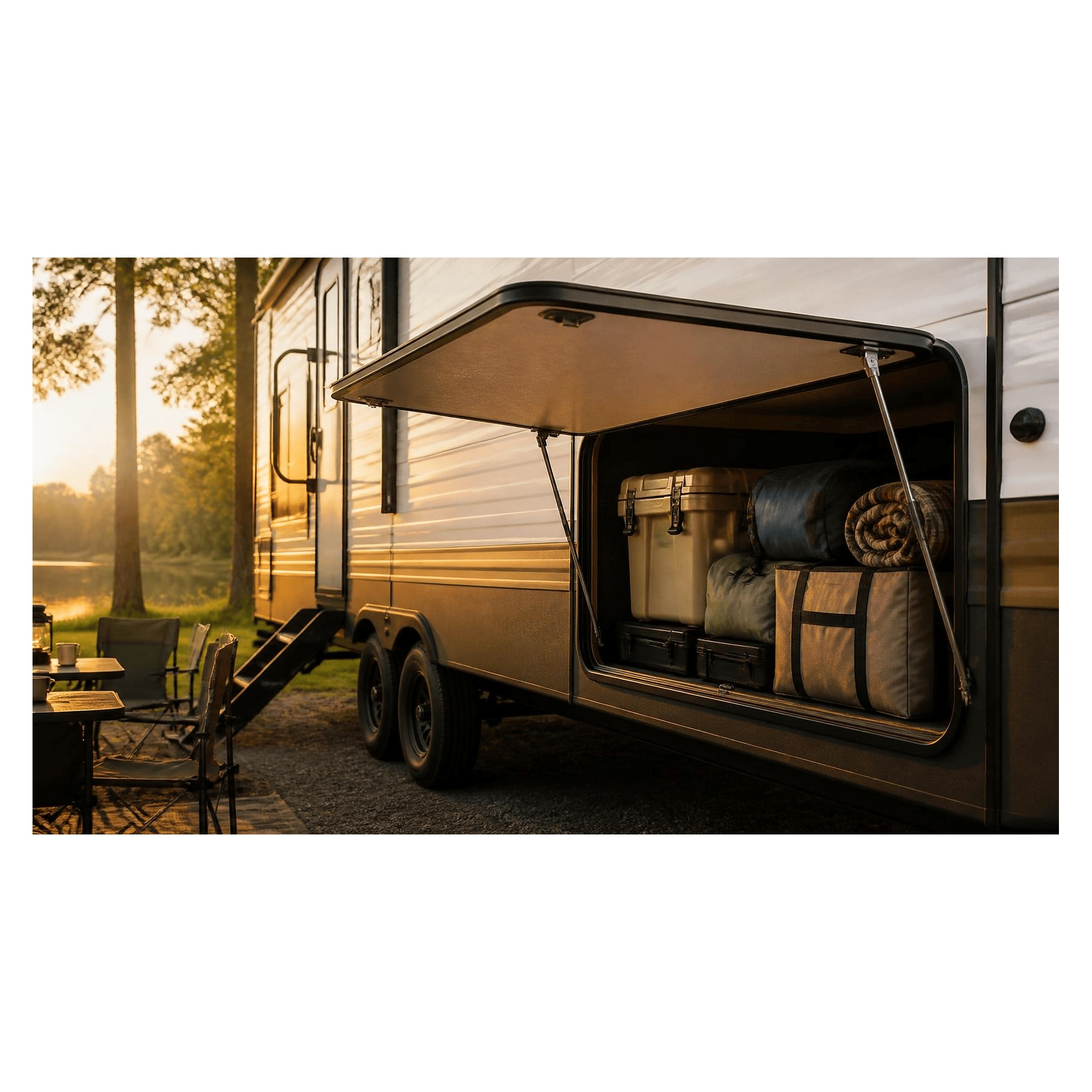

This 10 in nitrogen gas spring (gas strut, lift support) holds light lids, lift-up cabinet doors, toolbox lids and small hatches. It comes in 50 N or 100 N. Buy a pair to mount one on each side and avoid side load.
Closest CT-29 catalog size: 9.84 in (250 mm) extended (CT-GS15-06-250-085). The 10 in length is not an exact catalog match, so only the length, force and pack below are confirmed for this spring.

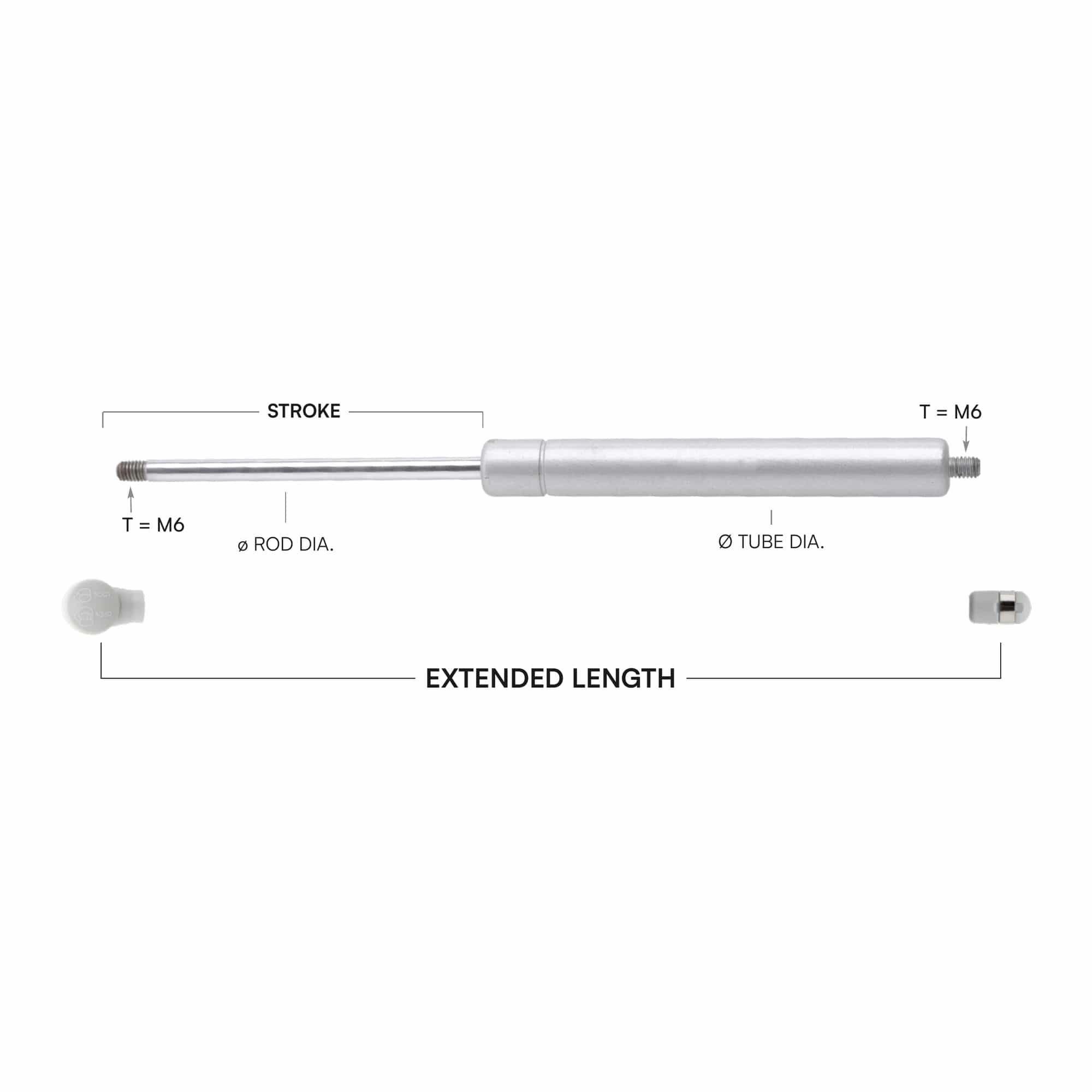

| Extended length | 10 in (254 mm) |
|---|---|
| Force options | 50 N (11.2 lbf), 100 N (22.5 lbf) |

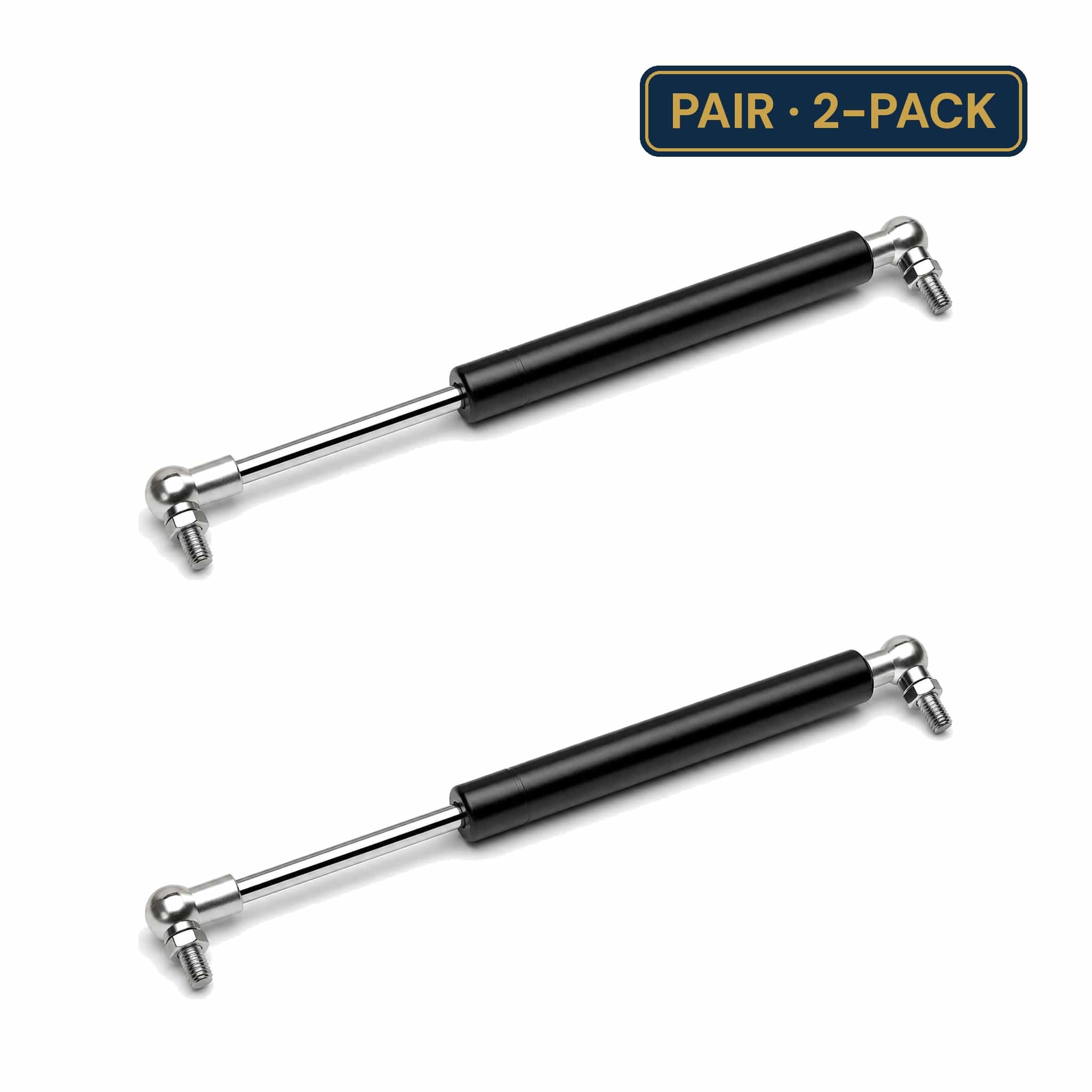

| Pack | Single (1 spring) or Pair (2 springs) |
Sizing
Force per spring: F1 (N) = 9.81 × (RH × m) / (2 × N × X2) + 5, where m = lid mass in kg, RH = opening length in m, X2 = lever arm in m, and N = number of springs. Round up to the next available force. For a 90° opening, stroke ≈ RH / 3. 1 kg ≈ 10 N ≈ 2.2 lbf.
Same-day shipping on in-stock items from Oxnard, CA. Volume, OEM and wholesale pricing: cs@conversionstech.com. Download the CT-29 Gas Springs & Fittings catalog (PDF).
A gas spring is not a safety component. Where failure would risk health or life, add an independent locking mechanism.
