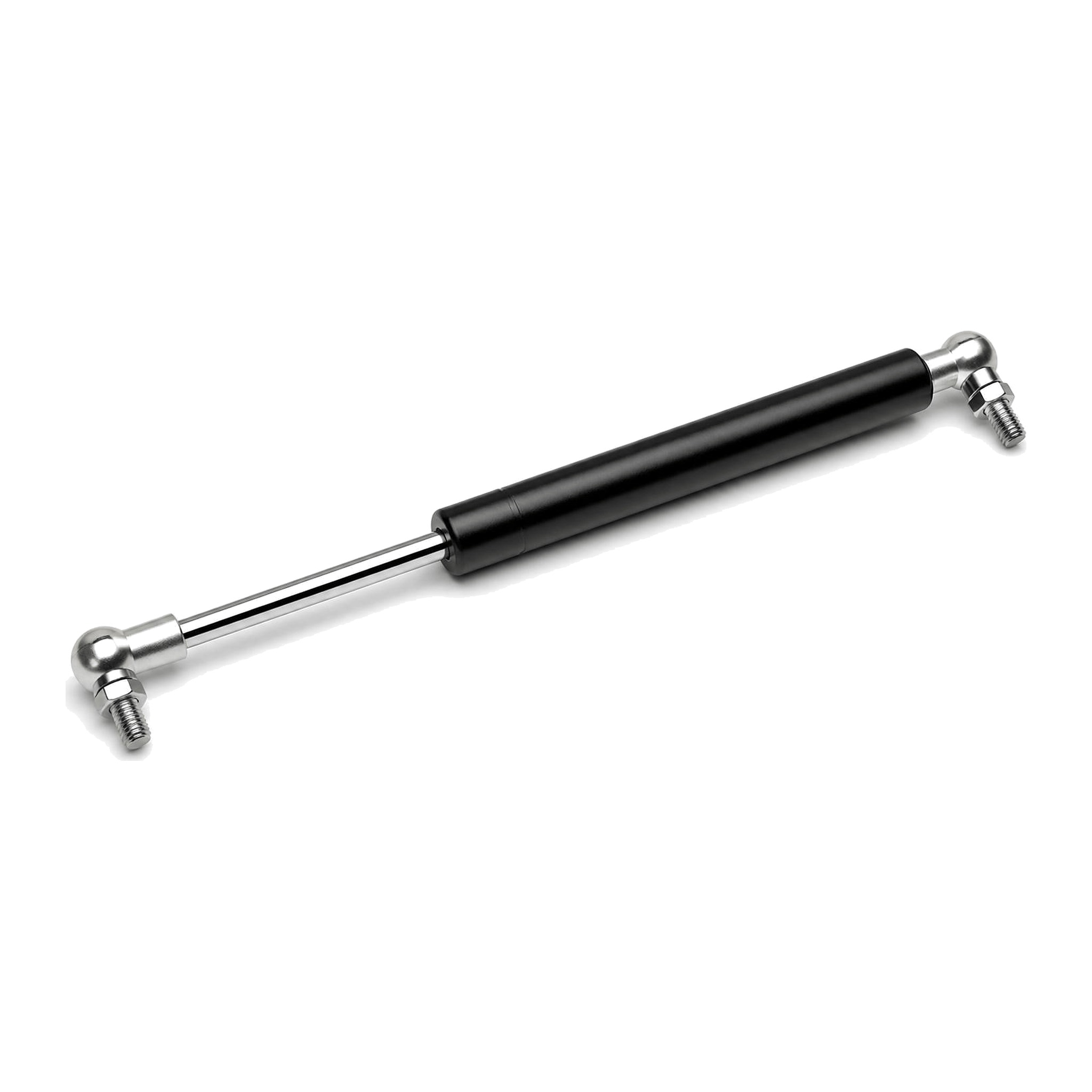

Gas Spring 9.84 in (250 mm), 3.35 in Stroke, 11-55 lb | M6 Ends | CT-GS15-06-250-085
Shipping calculated at checkout
SKU: CT-GS15-06-250-085-0050N
50 in stock
Open here

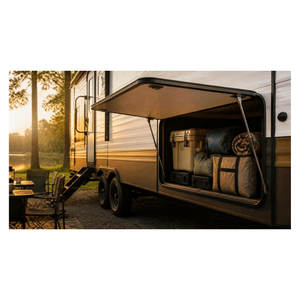

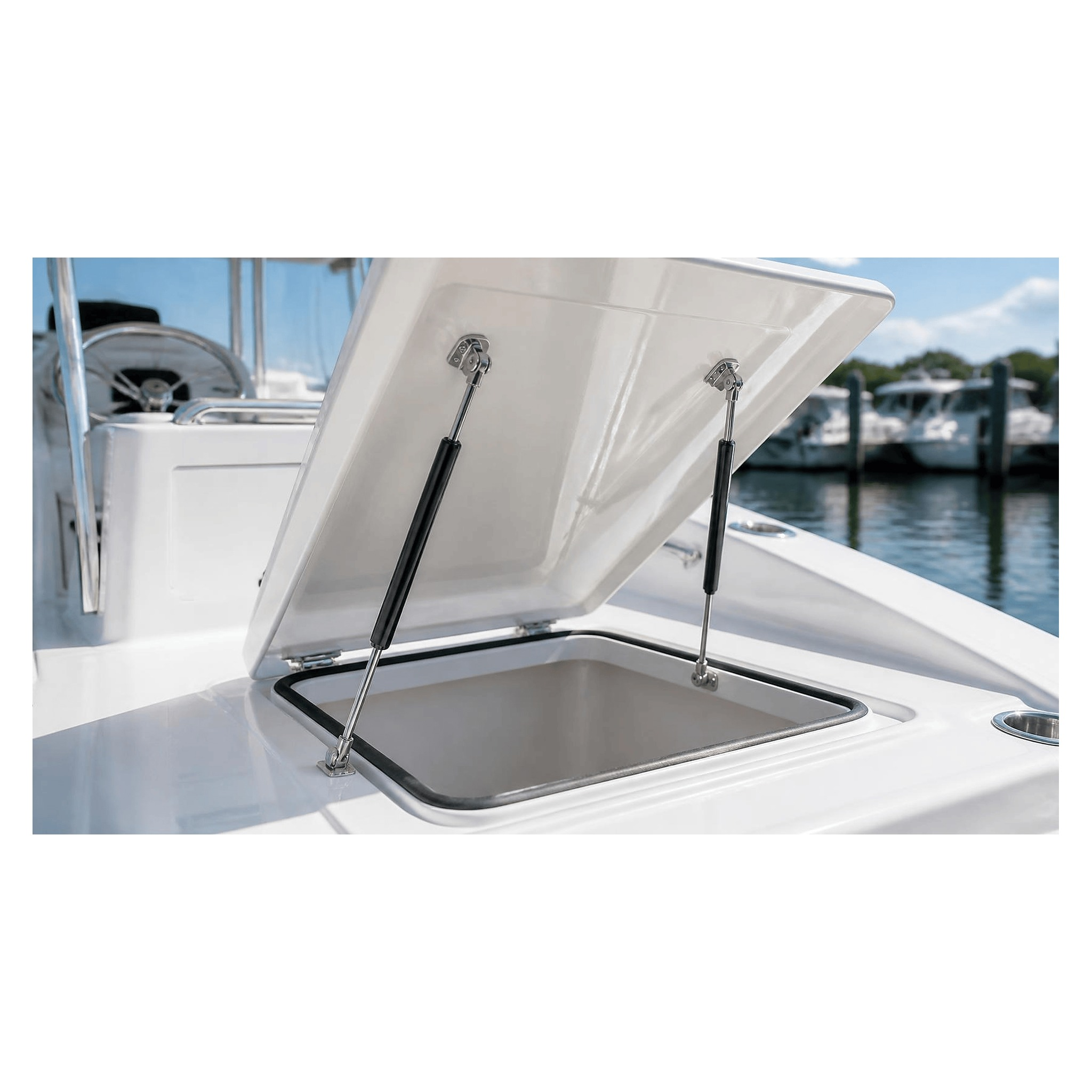

This compact nitrogen gas strut fits lift-up cabinet doors, toolbox lids and small RV or marine hatches. Pick the force as a variant, then add end fittings: CT-B1 ball socket and CT-B2 ball stud are sold separately.
| Part no. base | CT-GS15-06-250-085 |
|---|---|
| Extended length (L) | 9.84 in (250 mm) |
| Stroke (S) | 3.35 in (85 mm) |
| Compressed length (calc.) | 6.50 in (165 mm), L − S, before fittings |
| Tube Ø | 0.59 in (15 mm) |
| Rod Ø | 0.24 in (6 mm) |
| Thread | M6 both ends |
| Forces (variants) | 11 / 22 / 33 / 44 / 55 lb (5 / 10 / 15 / 20 / 25 kg), codes 0050N-0250N |
| Max friction FR (6 mm platform) | 50 N (11 lbf) |
| Progression X (6 mm platform) | ≈1.30 |
| Material | MS standard; stainless on request |
| End fittings | Sold separately: CT-B1 / CT-B2 |
Same-day shipping on in-stock items. Volume, OEM and wholesale pricing: cs@conversionstech.com.
Product images are illustrative renderings.
