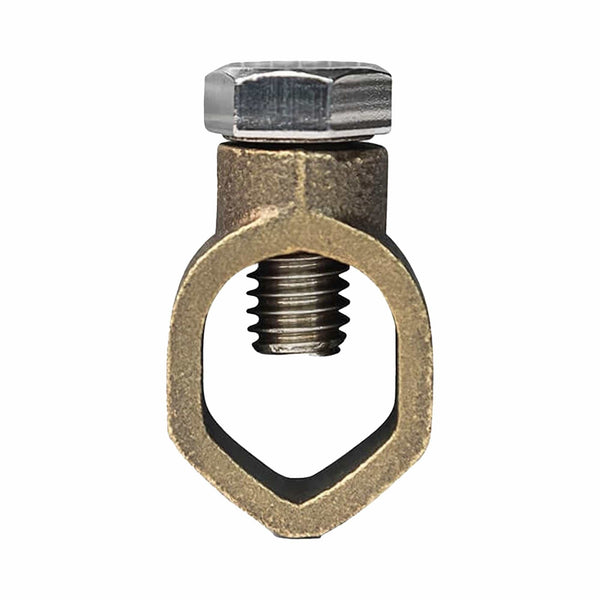

Ground Rod Clamp 1/0 AWG to 10 AWG - 1/2 to 5/8" Stud Size
Shipping calculated at checkout
SKU: 610-0158
Out of stock
Product Overview
The Ground Rod Clamp with a 1/2'' to 5/8" stud size is designed to securely attach grounding wires ranging from 1/0 AWG to 10 AWG to ground rods. This clamp is essential for establishing a reliable grounding connection in various electrical systems. Its durable construction ensures long-term performance and safety, making it suitable for both residential and commercial applications.
Specifications
- Wire Gauge Range: 1/0 AWG to 10 AWG
- Stud Size: 1/2 to 5/8 inch
- Material: Copper, Aluminum, or Stainless Steel
- Finish: Electroplated, hot-dipped galvanized, or painted
- Temperature Rating: Suitable for temperatures up to 90°C (194°F)
- Standards: Compliant with UL and ANSI standards
Uses and Cases

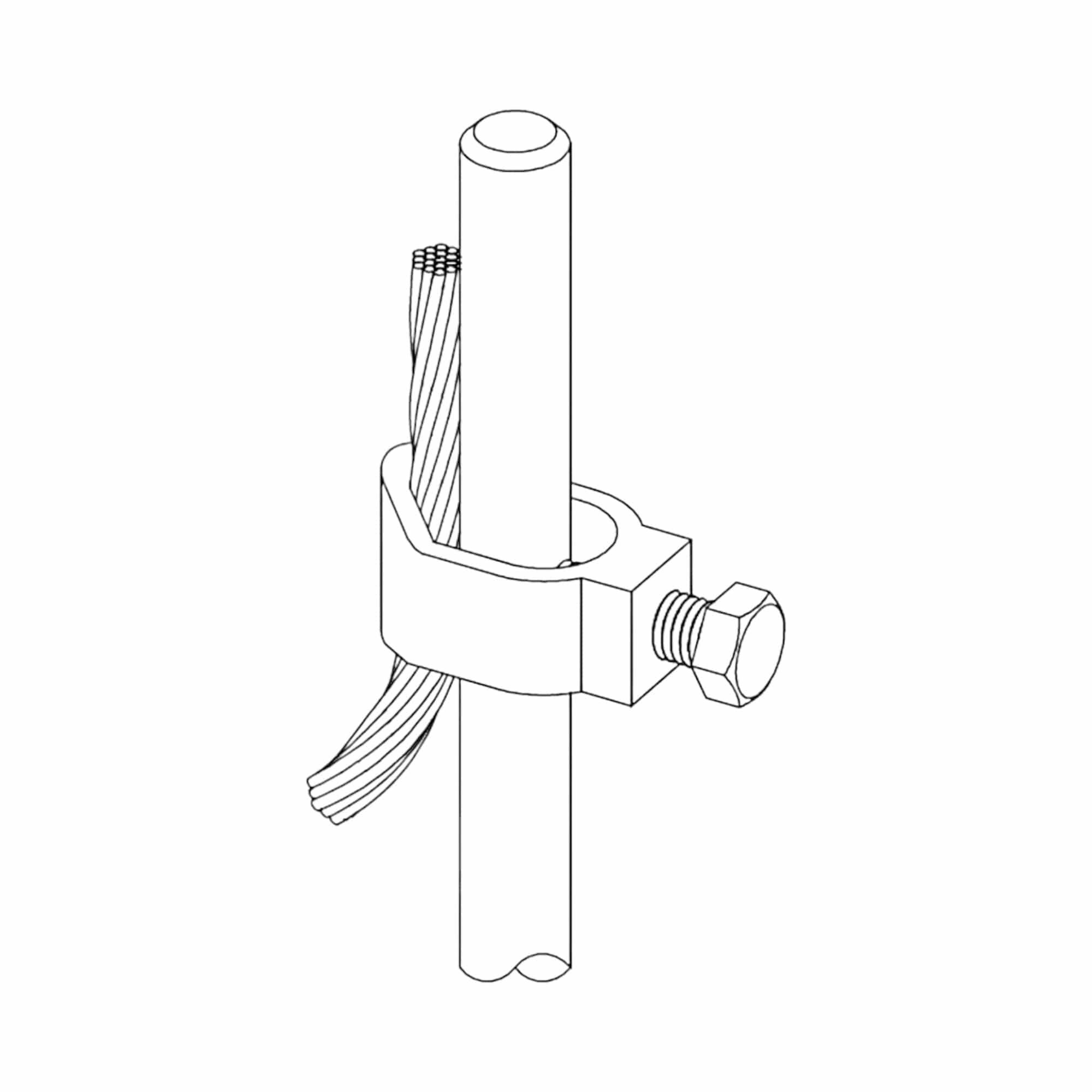

- Attaching grounding wires to ground rods in electrical grounding systems
- Ensuring a stable and reliable connection in residential electrical installations
- Securing connections in commercial and industrial settings
- Protecting electrical systems and equipment by providing effective grounding
- Commonly used in telecommunications and data centers to safeguard sensitive electronics
Item Features
- Secure attachment with a 1/2 to 5/8" stud size for robust connections
- Accommodates a range of wire sizes from 1/0 AWG to 10 AWG
- Durable construction for long-lasting performance
- Corrosion-resistant finish to withstand various environmental conditions
- Easy to install with a user-friendly design
- Complies with industry standards for safety and performance
Cross-Reference: 610-0158
| Brand | Series / Part | Notes |
|---|---|---|
| Blackburn (ABB) | G-series clamp class* | match by rod/pipe size and conductor range |
| Burndy | GAR / GRC clamp class* | same UL 467 class |
| Bridgeport / Halex | acorn clamp class* | match by rod size |
*Cross by rod or pipe size and conductor range - UL 467 listed class. Bronze/brass construction. Trademarks belong to their owners.
NOTE: mechanical clamps are for accessible connections; buried or concrete-encased splices require irreversible compression or exothermic welding per NEC 250.64(C).
