Ground Lay in Rebar Clamp 8 AWG- 4/0 AWG Wire Range 1/2 - 1" Pipe Size
Shipping calculated at checkout
SKU: 880-22313
803 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

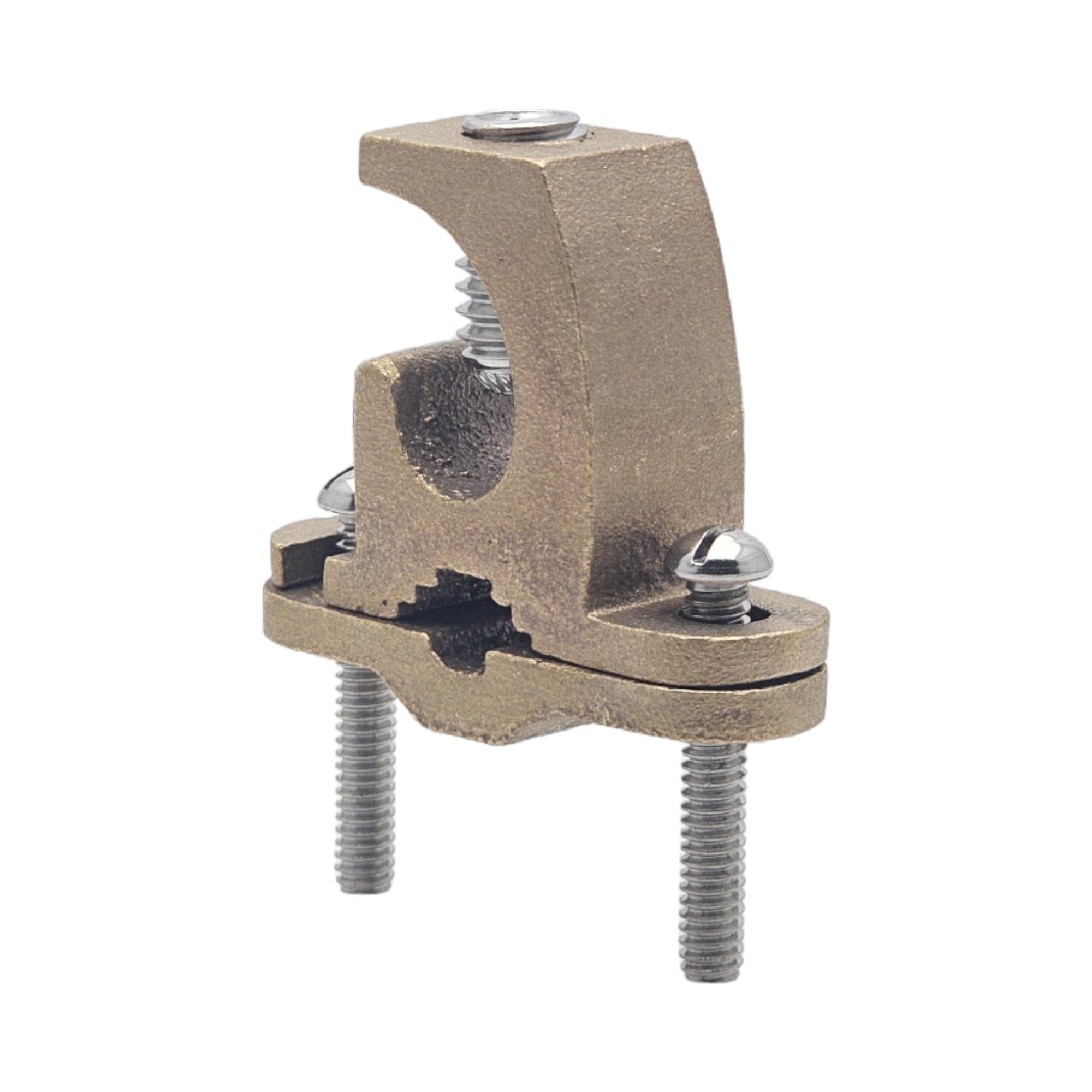

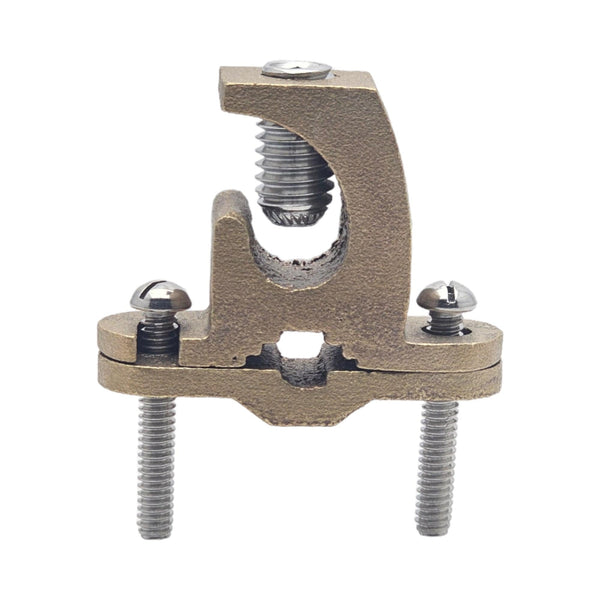

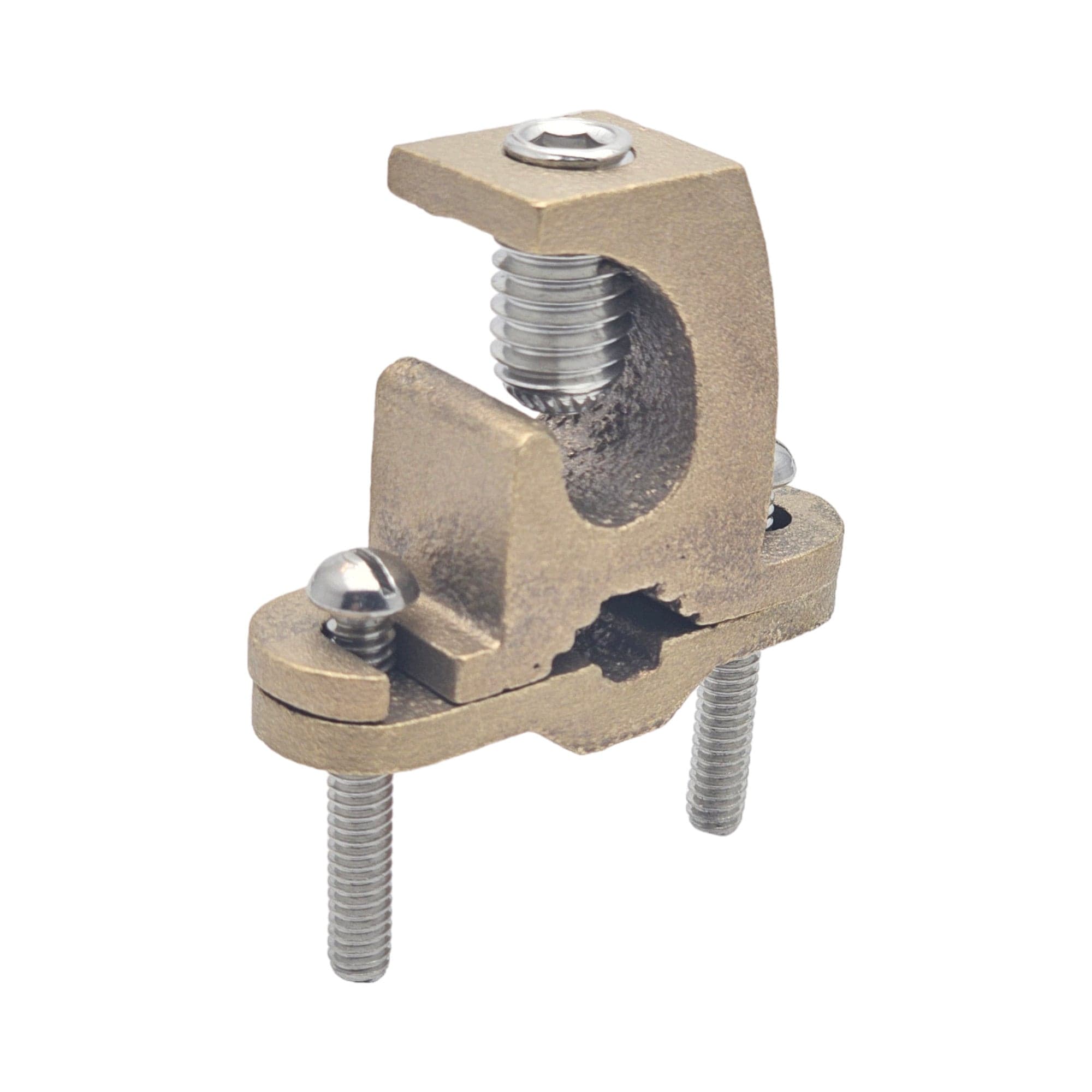

Bronze Alloy Ground Clamp | 8 AWG – 4/0 AWG | Direct-Bury Rod & Pipe Connector
Upgrade your grounding system with a clamp that’s built to last. Our bronze-alloy ground clamp with stainless-steel hardware delivers a rock-solid, low-resistance bond between large conductors (8 AWG to 4/0 AWG) and ground rods or pipes measuring ½ – 1 inch. Engineered for direct-burial use, it resists corrosion, maintains conductivity in harsh soil, and meets demanding electrical-code specs.
Why Install This Ground Clamp?
- Direct-Burial Rated – Bronze body and stainless hardware shrug off moisture, chemicals & backfill.
- Wide Conductor Window – Handles 8 AWG, 6 AWG, 4 AWG … all the way to beefy 4/0 AWG stranded copper or aluminum.
- Universal Rod / Pipe Fit – One clamp covers ½ in, ⅝ in, ¾ in & 1 in ground rods or IPS piping.
- Triple-Screw Security – Two stainless set-screws bite the rod; a third screw locks the conductor for vibration-proof hold.
- Code-Compliant Bond – Meets NEC®/CEC grounding requirements for residential, commercial & industrial sites.
Technical Specifications
| Body Material | High-strength Bronze Alloy |
|---|---|
| Hardware | Stainless-Steel / Silicon-Bronze Screws |
| Conductor Range | 8 AWG – 4/0 AWG (stranded) |
| Rod / Pipe Range | ½ – 1 in (ground rod or IPS) |
| Overall Length | 3 in (76 mm) |
| Overall Width | 2.25 in (57 mm) |
| Application | Direct Burial, Indoor/Outdoor |
| Fastening Method | (2) Rod-set screws & (1) conductor screw |
Top Applications
- Ground Rod Bonding – Secure 8 AWG–4/0 AWG grounding electrode conductors to ½–1 in copper-clad or galvanized rods.
- Pipe Grounding – Bond service-entrance conductors to metallic water pipes for an NEC-compliant grounding electrode system.
- Lightning & Surge Protection – Create low-impedance paths that safely dissipate strike energy into soil.
- Utility & Telecom Sites – Direct-burial connections for pad-mount transformers, cell-tower grounds & vault installations.
Pro Tip: Pair this clamp with our UL-listed copper ground rods and bare copper conductor for a turnkey, code-ready grounding solution.
