Insulated Tap Connectors for Two Wires Zig zag Entry 6 AWG - 3/0 AWG 2 Port
Shipping calculated at checkout
SKU: 610-3002036
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

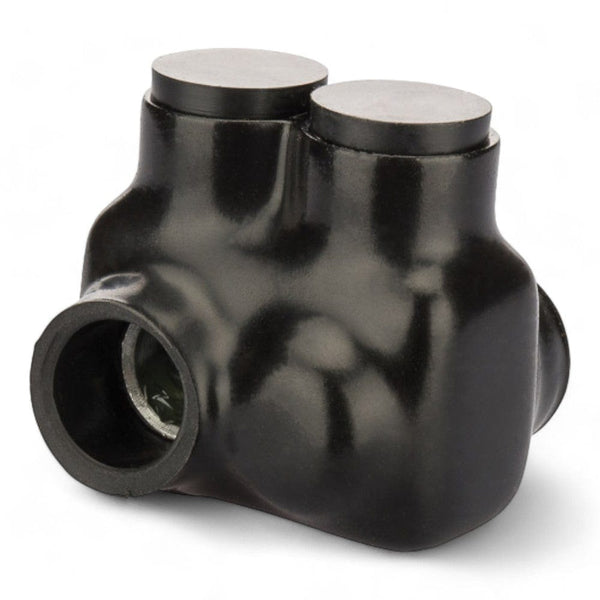

The 2-Port Insulated Tap Connector with Zig-zag Entry caters specifically to heavy-duty electrical applications. This connector prioritizes secure and reliable connections for two wires, particularly targeting large conductors ranging from 3/0 AWG down to 6 AWG. Its robust design makes it ideal for industrial settings, utility infrastructure, and renewable energy installations.
Tech Description
The innovative zig-zag entry design provides versatility during installation. You can insert wires from either the same side or opposite sides of the connector, allowing for flexible configuration based on your wiring layout. The connector is built with high-quality insulating material, often plastisol, ensuring dependable performance and safety in demanding environments.
Technical Aspects:
- Conductor Compatibility: Dual Rated (Accepts both Aluminum and Copper Wires)
- Wire Size: 3/0 AWG - 6 AWG
- Voltage Rating: Typically 600 Volts (Verify with manufacturer specifications)
- Temperature Rating: Typically -45°C to 90°C (Verify with manufacturer specifications)
- Material: High Dielectric Strength Plastisol (Typical material for insulated tap connectors, confirm with manufacturer)
- Ports: Offset Double Sided Entry with Removable Plugs (For closing unused ports)
- Body Style: 1 Pole, 2 Conductor
- Wire Type: Class B & C (Compatible with commonly used solid and stranded copper wires, verify with manufacturer for specific details)
- Hex Size: Typically 3/16 inch (Verify with manufacturer specifications)
Specifications
- Dimensions: Information might not be readily available (Check manufacturer's website or datasheet for dimensions)
- Finish: Black (Typical finish for insulated tap connectors, confirm with manufacturer)
